(No.MA139)1-9
3.1.6 Removing the main board
(See Fig.7)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, side panel, bottom
cover and rear bracket.
(1) Remove the two screws H attaching the main board.
(2) Disconnect the connector CN501
and take out the main
board.

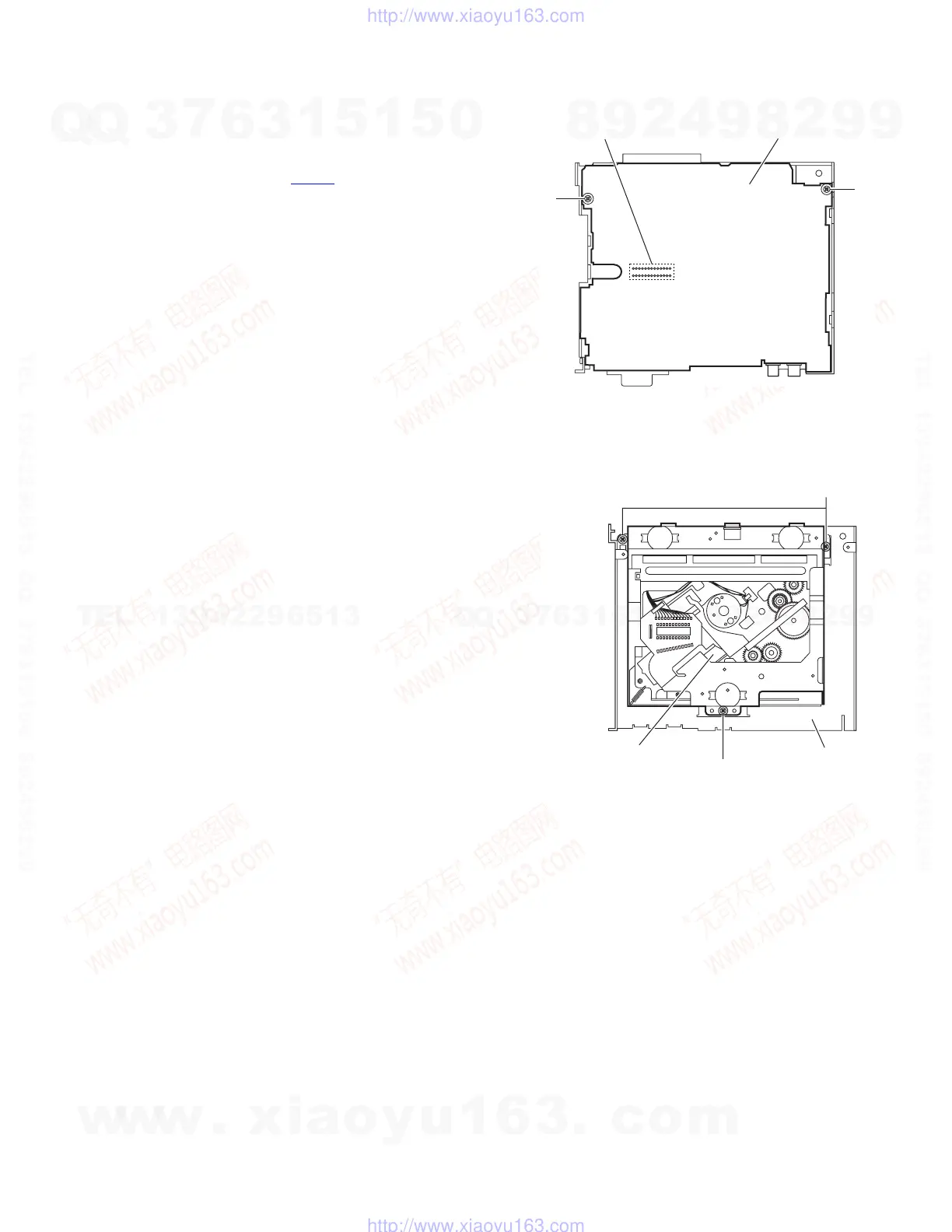

Fig.7
3.1.7 Removing the CD mechanism assembly
(See Fig.8)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, side panel, bottom
cover, rear bracket and main board.
(1) Remove the three screws J attaching the top chassis.
(2) Take out the CD mechanism assembly.
Fig.8
CN501 Main board
H
H
J
J
CD mechanism assembly
Top chassis
