1-20 (No.49793)
2.2.9 Removing the trigger arm
(See Figs.19 and 20)
Prior to performing the following procedure, remove the top
cover, connector board and clamper unit.
(1) Turn the trigger arm in the direction of the arrow to release
the joint k and pull out upward.
CAUTION:
When reassembling, insert the part m and n of the trigger
arm into the part p and q at the slot of the chassis rivet
assembly respectively and join the joint k at a time.

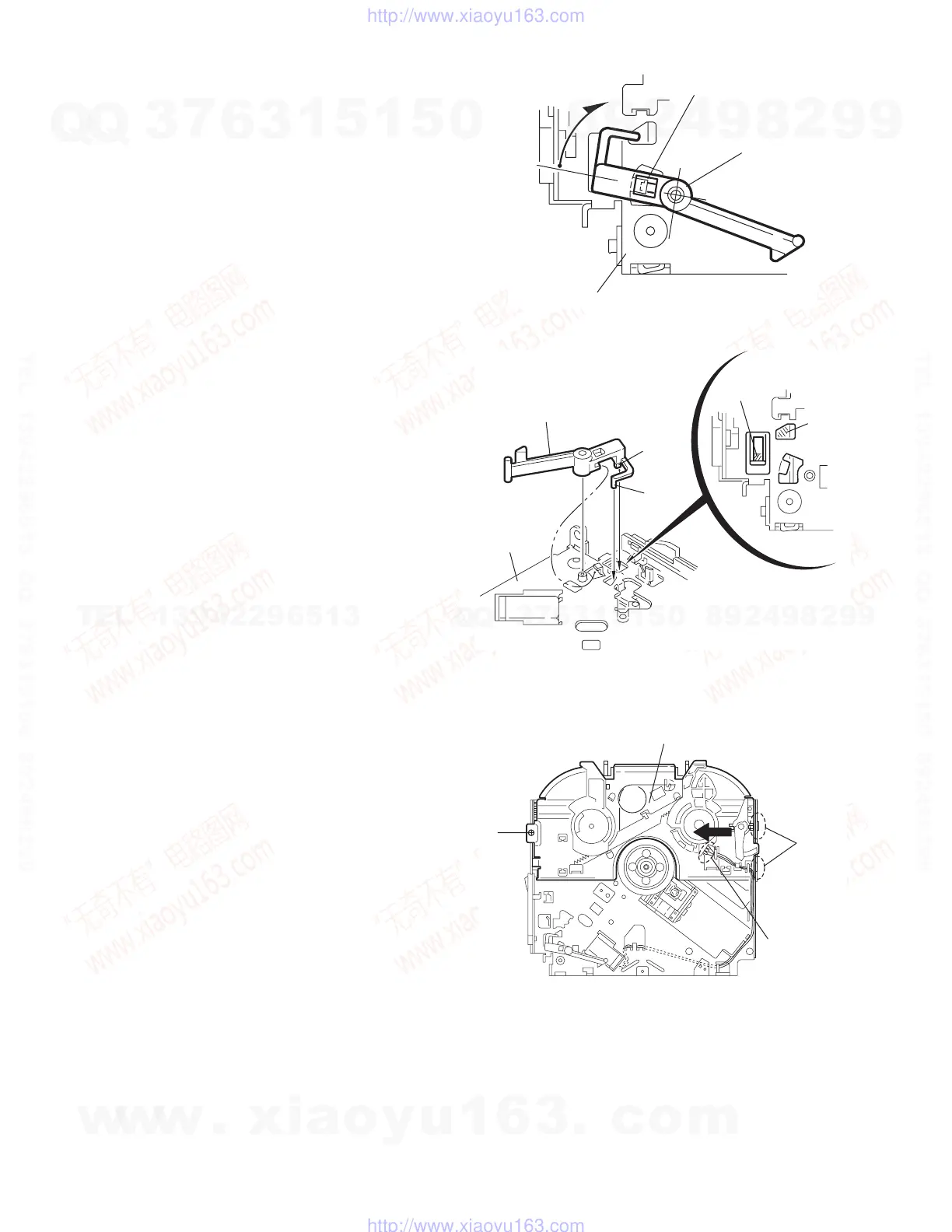

Fig.19
Fig.20
2.2.10 Removing the top plate assembly
(See Fig.21)
Prior to performing the following procedure, remove the top
cover, connector board, chassis unit, and clamper assembly.
(1) Remove the screw H.
(2) Move the top plate assembly in the direction of the arrow to
release the two joints r.
(3) Unsolder the wire marked s if necessary.
Fig.21
Joint k
Trigger arm
Chassis rivet assembly
Trigger arm
Chassis
rivet
assembly
Part p
Part m
Part n
Part q
Top plate assembly
Joints
r
s
