JVC KD-R671

12
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

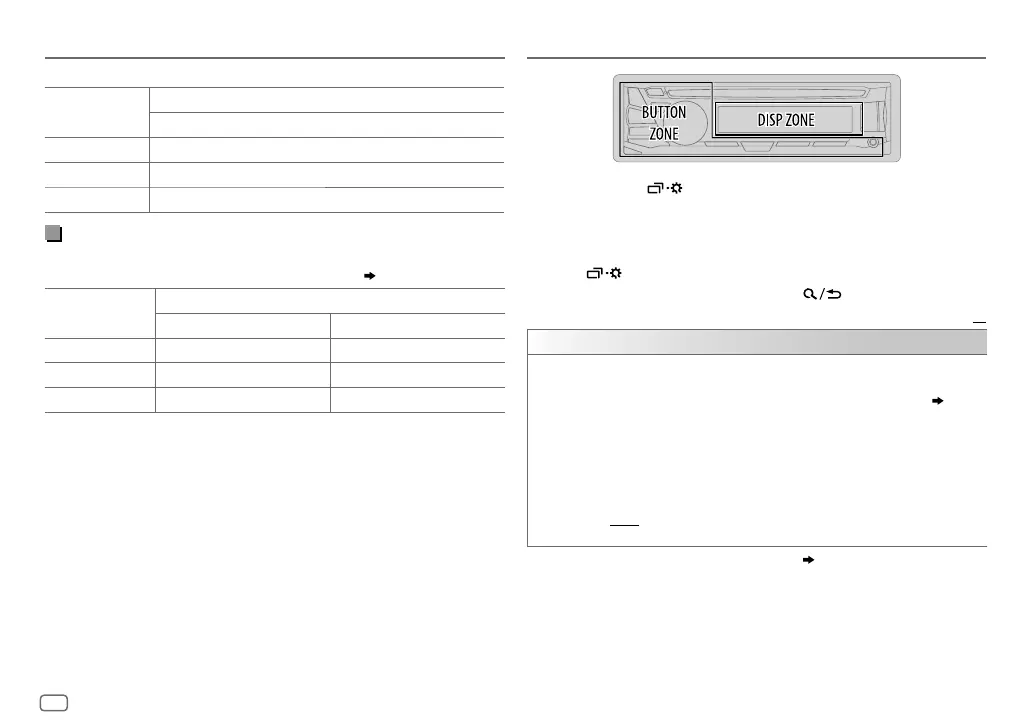

AUDIO SETTINGS
(For KD-R571 / KD-R476 / KD-R471 )
Setting on
[ SPK/PRE OUT]
Audio signal through lineout terminal
REAR/SW
REAR/REAR Rear speakers output
REAR/SUB.W Subwoofer output
SUB.W/SUB.W Subwoofer output
Connection via speaker leads
For connections without using an external amplifier. However, with this
settings you can also enjoy the subwoofer output. (
 18 )
Setting on
[ SPK/PRE OUT]
Audio signal through rear speaker lead
L (left) R (right)
REAR/REAR Rear speakers output Rear speakers output
REAR/SUB.W Rear speakers output Rear speakers output
SUB.W/SUB.W Subwoofer output (Mute)
If [ SUB.W/SUB.W ] is selected:
– [
HIGH120HZ ] is selected in [ SUB.W  LPF ] and [ THROUGH ] is not available.
– [
R01 ] is selected in [ FADER ] and selectable range is [ R06 ]to [ 00 ]
1 Press and hold .
2 Turn the volume knob to select an item (see the following table),
then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow
the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press .
Default: XX
DISPLAY
DIMMER
Dim the display and buttons illumination.
OFF :Dimmer is turned off.
ON :Dimmer is turned on. Brightness changes to [ NIGHT ] setting. ( 13 ,
[
BRIGHTNESS ] )
DIMMER TIME
:Set the dimmer on and off time.
1 Turn the volume knob to adjust the [ ON ] time, then press the knob.
2 Turn the volume knob to adjust the [ OFF ] time, then press the knob.
(Default: [
ON ]: 18:00 or 6:00 PM
[
OFF ]: 6:00 or 6:00 AM)
AUTO :Dimmer turns on and off automatically when you turn off or on the car
headlights. *
1
*
1
The illumination control wire connection is required. ( 18)
DISPLAY SETTINGS
