ENGLISH
23
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

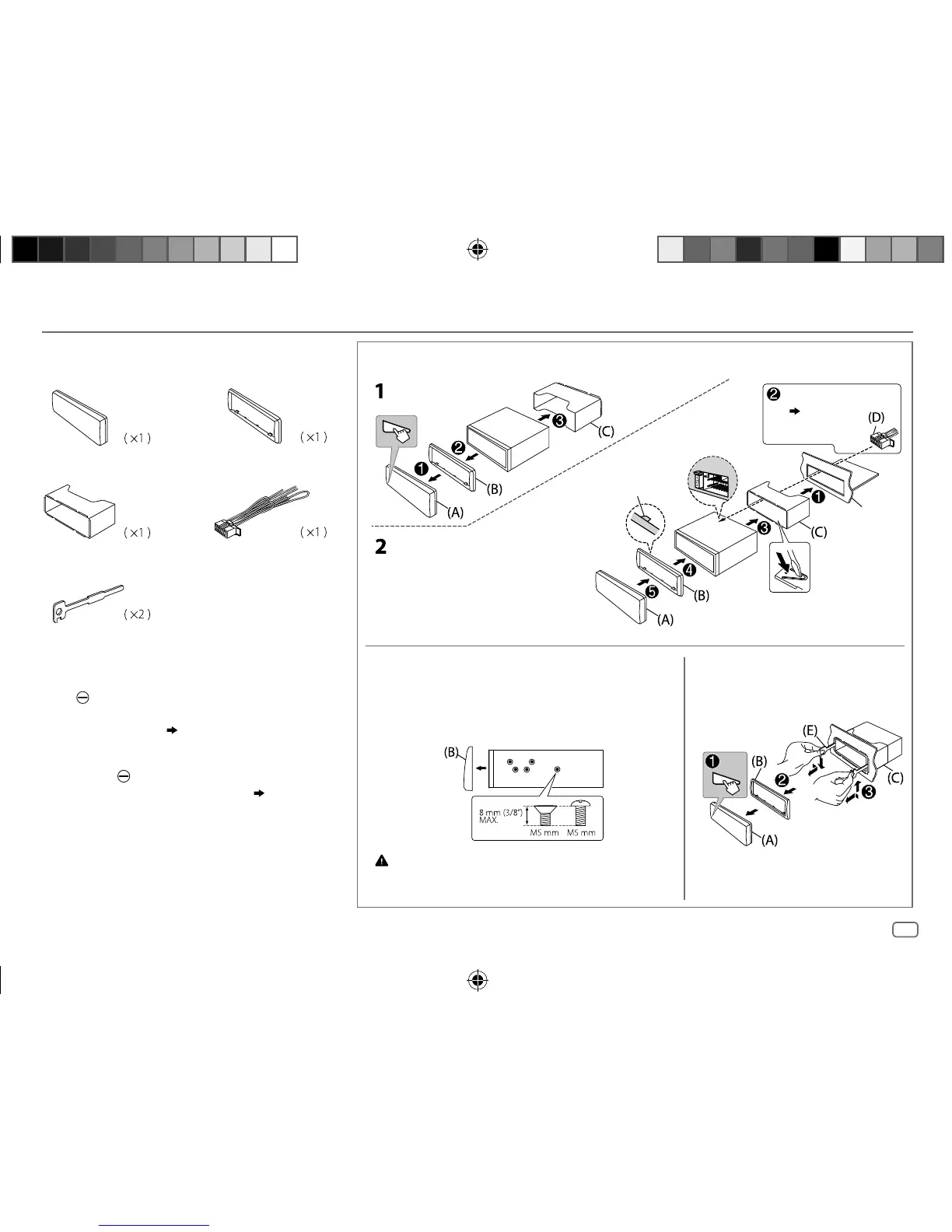

INSTALLATION/CONNECTION
Installing the unit (in-dash mounting)
Part list for installation
Basic procedure
1 Remove the key from the ignition switch, then disconnect
the
terminal of the car battery.
2 Connect the wires properly.
See Wiring connection.
( 24)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Detach the faceplate and reset the unit. ( 3)
How to remove the unitWhen installing without the mounting sleeve
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might
damage the unit.
Do the required wiring.
(  24)
Bend the appropriate tabs to hold
the sleeve firmly in place.
Hook on the top side
Orientate the trim
plate as illustrated
before fitting.
Dashboard of
your car
(A) Faceplate (B) Trim plate
(D) Wiring harness
(C) Mounting sleeve
(E) Extraction key
JS_JVC_KD_R690S_K_EN_3.indd 23JS_JVC_KD_R690S_K_EN_3.indd 23 7/4/2017 11:01:30 AM7/4/2017 11:01:30 AM
