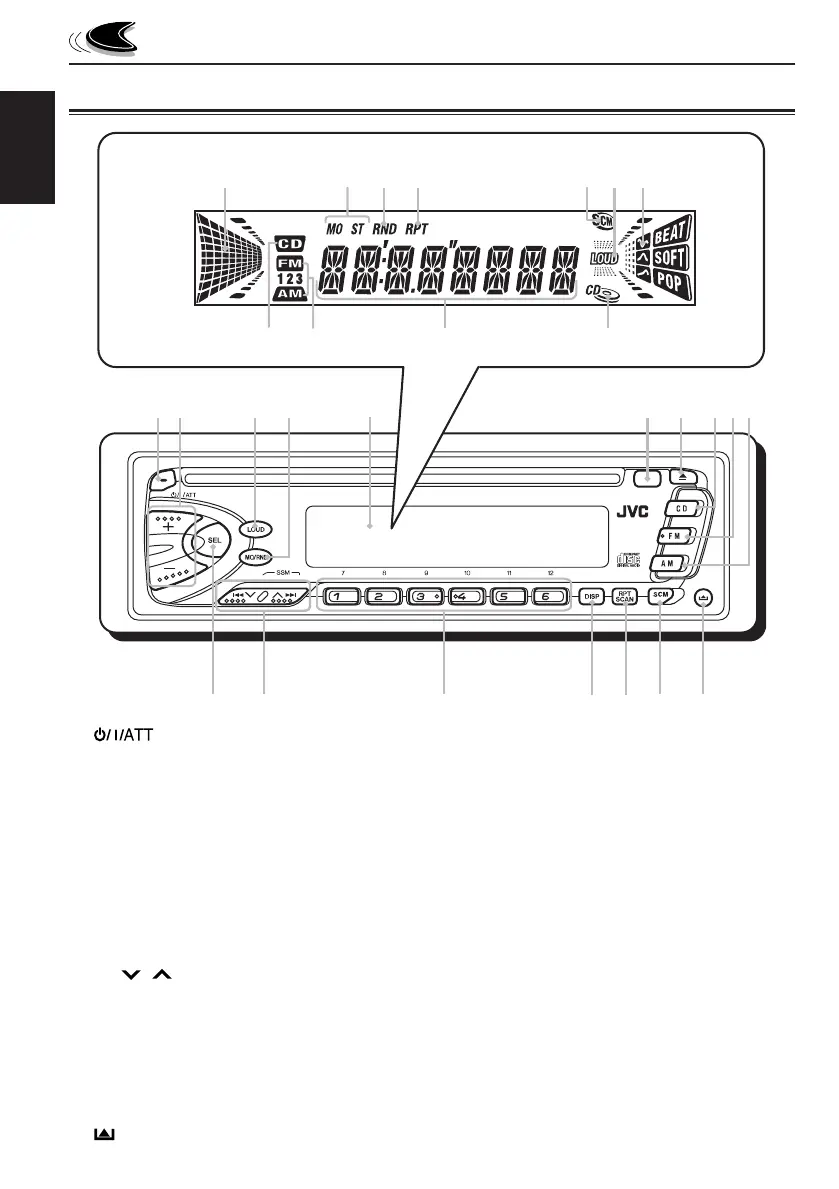

LOCATION OF THE BUTTONS
1 (standby/on/attenuator) button
2 +/– button
3 LOUD button
4 MO (monaural) button
RND (random) button
5 Display window
6 Remote sensor (only for KD-S620)
7 0 (eject) button
8 CD button
9 FM button
p AM button
q SEL (select) button
w 4
/ ¢ buttons
• Also functions as SSM buttons when
pressed together.
e Number buttons
r DISP (display) button
t RPT (repeat) button
SCAN button
y SCM (sound control memory) button
u
(control panel release) button
Display window
i Volume (or audio) level indicator
Equalization Pattern indicator
o Tuner reception indicators
STEREO, MONO
; RND (random) indicator
a RPT (repeat) indicator
s "SCM" indicator
d LOUD indicator
f Sound mode indicators
BEAT, SOFT, POP
g CD indicator
h Band indicators
FM1, FM2, FM3
AM
j Main display
k CD IN indicator
Display window
12
34 5 6
789p
q
w
e
rt y
u
i
g
h
o
j
k
;a
sdf
