KD-SC800R
1-12 (No.49820)

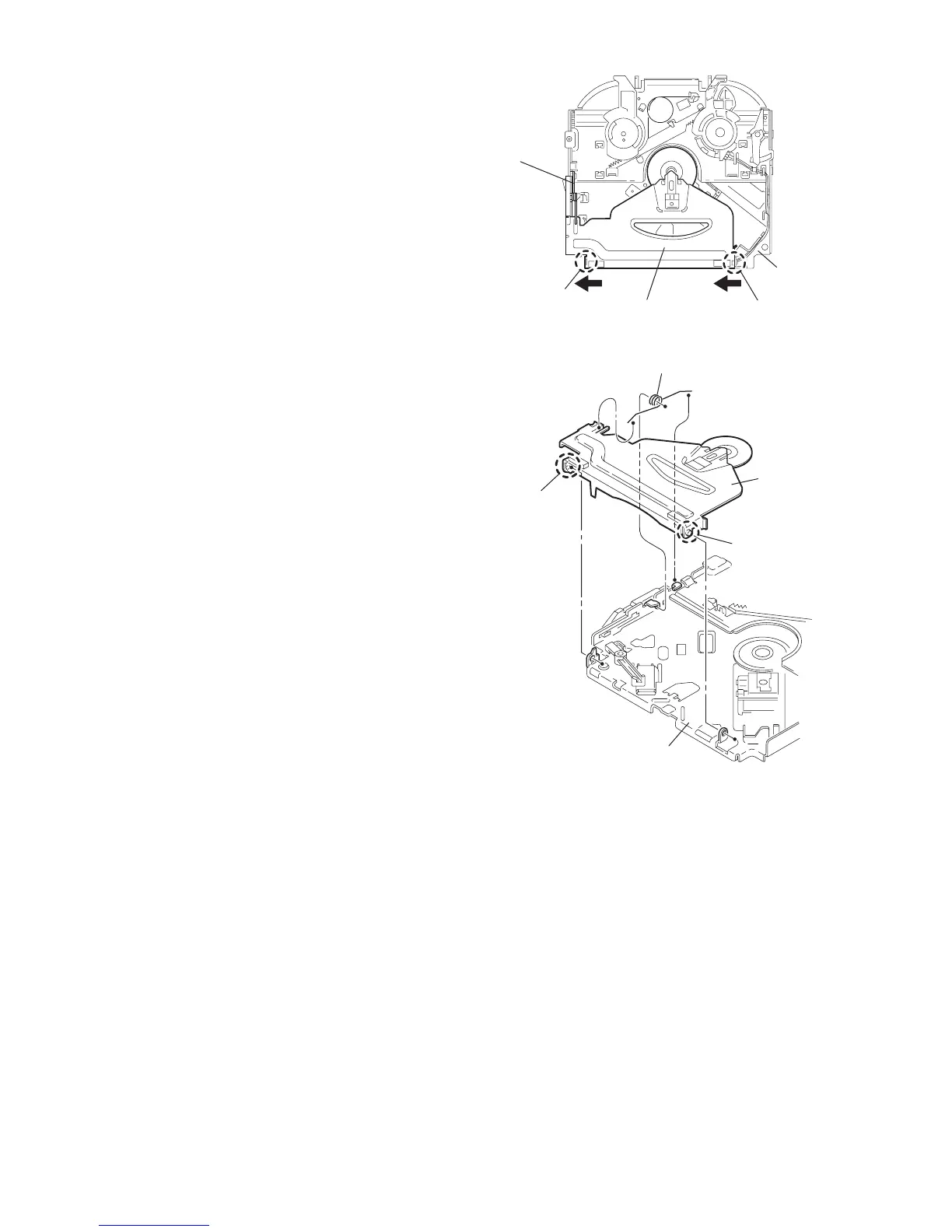

2.2.5 Removing the clamper assembly
(See Figs.10 and 11)
Prior to performing the following procedure, remove the top
cover.
(1) Remove the clamper arm spring.
(2) Move the clamper assembly in the direction of the arrow to
release the two joints d.
Fig.10
Fig.11
Clamper arm
spring
Chassis rivet
assembly
Joint d
Joint d
Clamper assembly
Clamper arm spring
Clamper
assembly
Joint d
Joint d
Chassis rivet assembly
