Remove the screw S attaching the lifter board cover
in the rear of the front bracket.
Release the two joints d while pushing the front side.
Move the lifter board cover inthe direction of the
arrow and release the eight joints e.
Remove the two screws T attaching the lifter board
on the front of the body.
4.
5.
6.

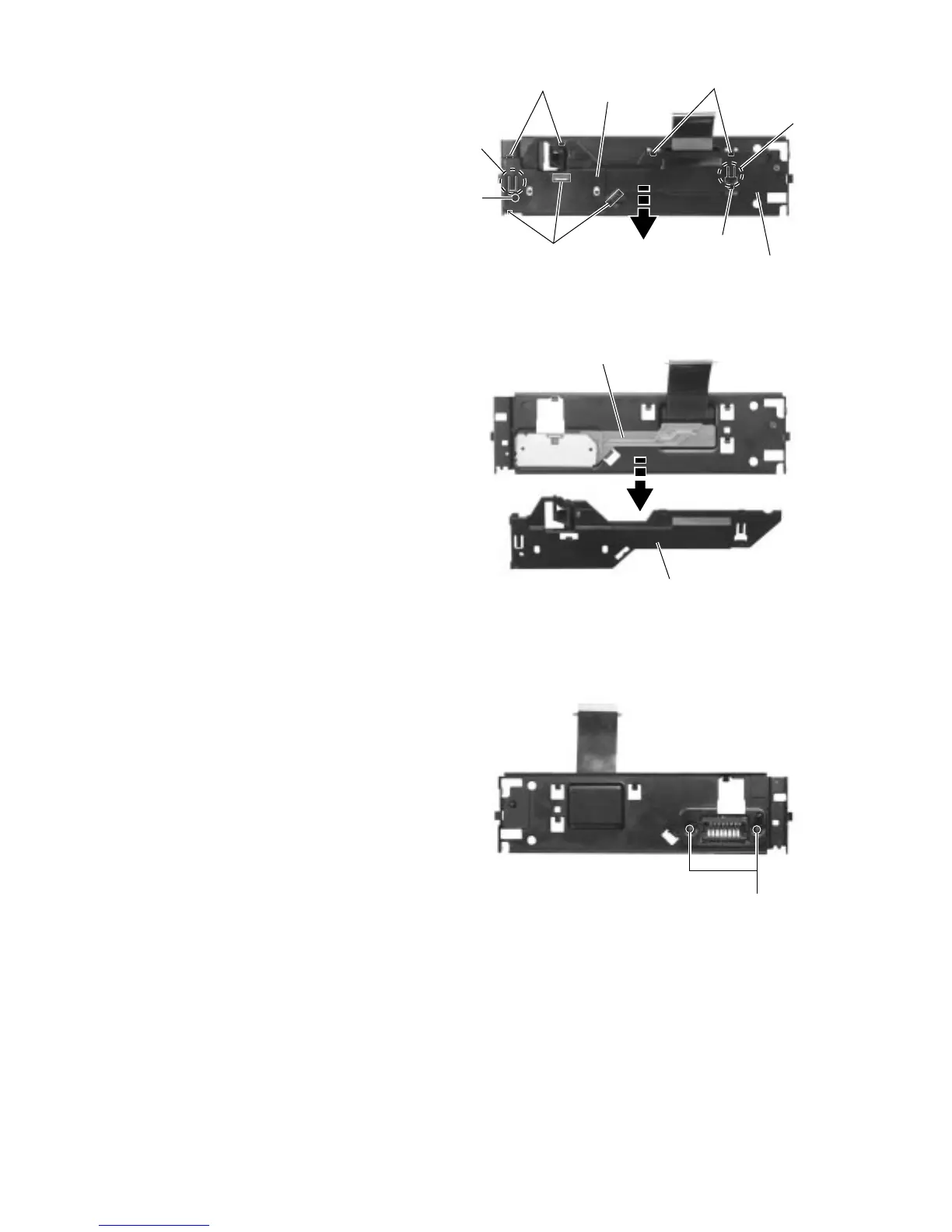

Fig.21
Fig.22
Fig.23
Joints e
Joints e
Joints e
Joint e
S
Joint d
Joint d
Front bracket
Lifter board cover
Lifter board
Lifter board cover
T
