JVC KD-SH77R

KD-SH77R/KD-SH55R
1-9
Prior to performing the following procedure, remove
the top chassis assembly and thefront panel
assembly.
Disconnect the flexible wire from connector CN702
on the main board.
Remove the four screws R attaching the front
bracket on both sides of the body.
Push the pin of the joint c on the front of the front
bracket to release the lock lever.
1.
2.
3.

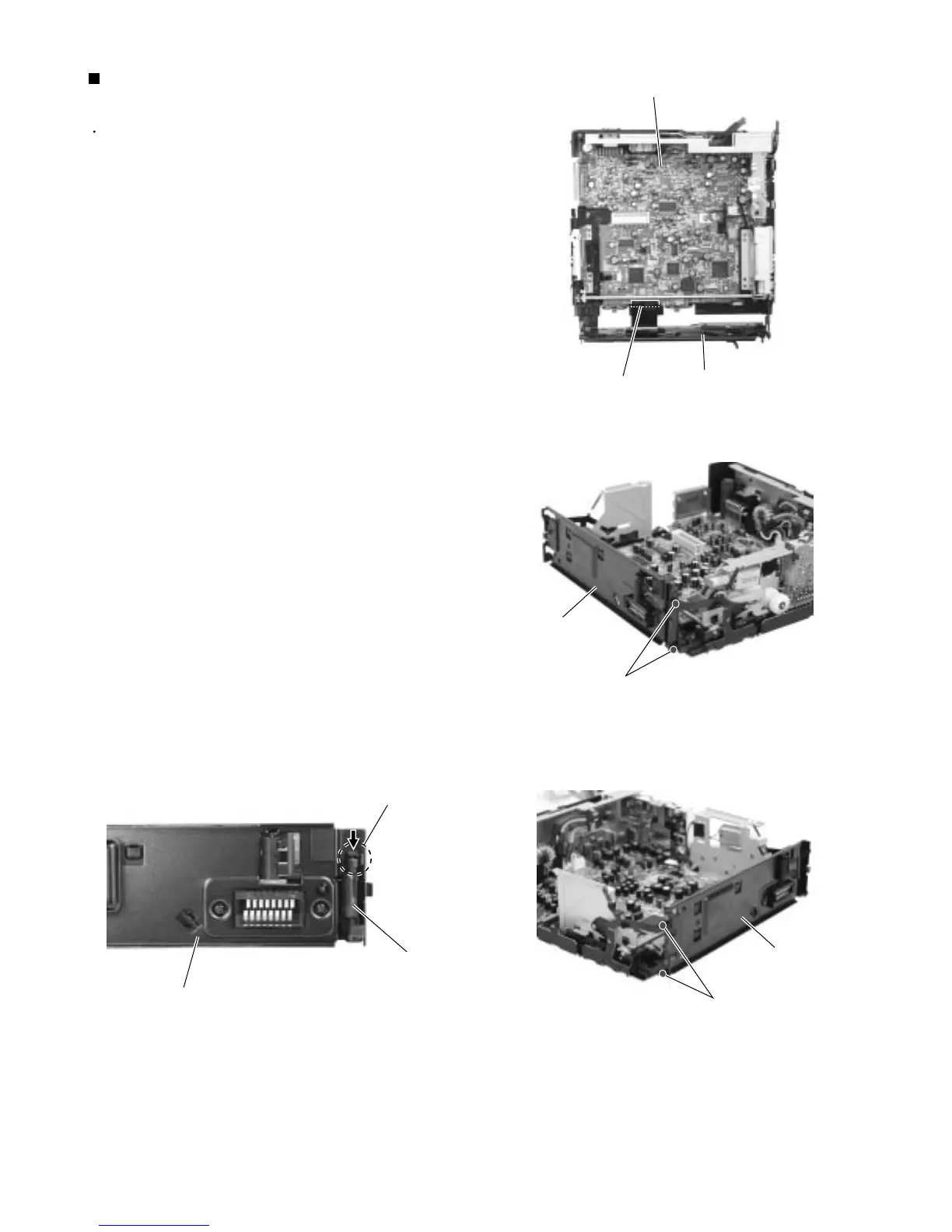

Removing the lifter board
(See Fig.17 to 23)
Fig.17
Fig.18
Fig.19Fig.20
Front bracket
Main board
CN702
Front bracket
Front bracket
R
R
Lock lever
Front bracket
Joint c
