KD-SH77R/KD-SH55R
1-4
Press the release button in the lower right part of the
front panel assembly to unlock.
Remove the front panel assembly in the direction of
the arrow.
1.
2.

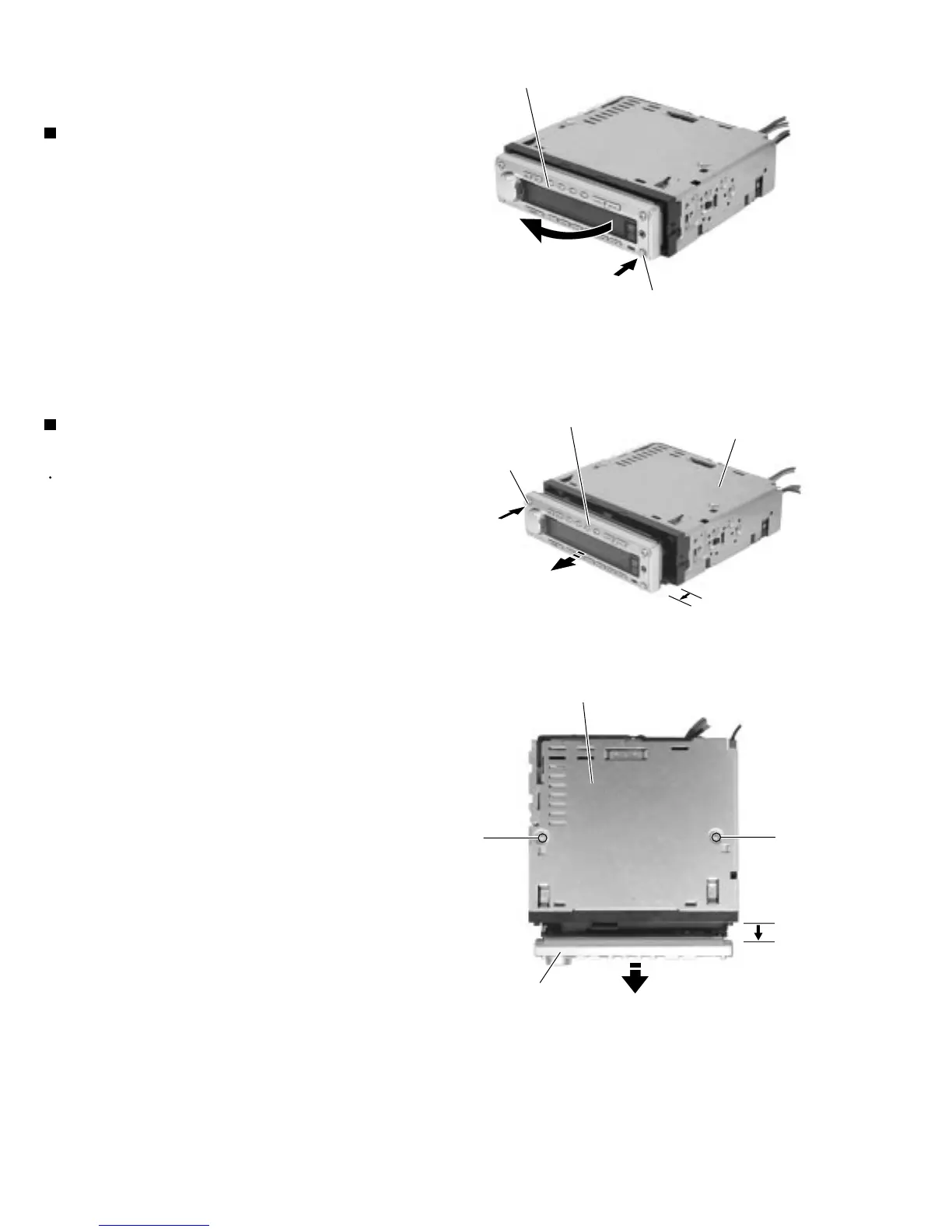

Disassembly method
Removing the front panel assembly
(See Fig.1)
Turn on power.
Press the eject button in the upper left part of the
front panel assembly to move the assembly as
shown in Fig.2 and turn off power.
Remove the two screws A on the upper side of the
body.
1.
2.
Removing the top chassis
(See Fig.2 to 6)
Fig.1
Fig.2
Front panel assembly
Release button
Front panel assembly
Eject button
Top chassis
Fig.3
Front panel assembly
Top chassis
A
A
To Next Page
