KD-SH77R/KD-SH55R
1-5

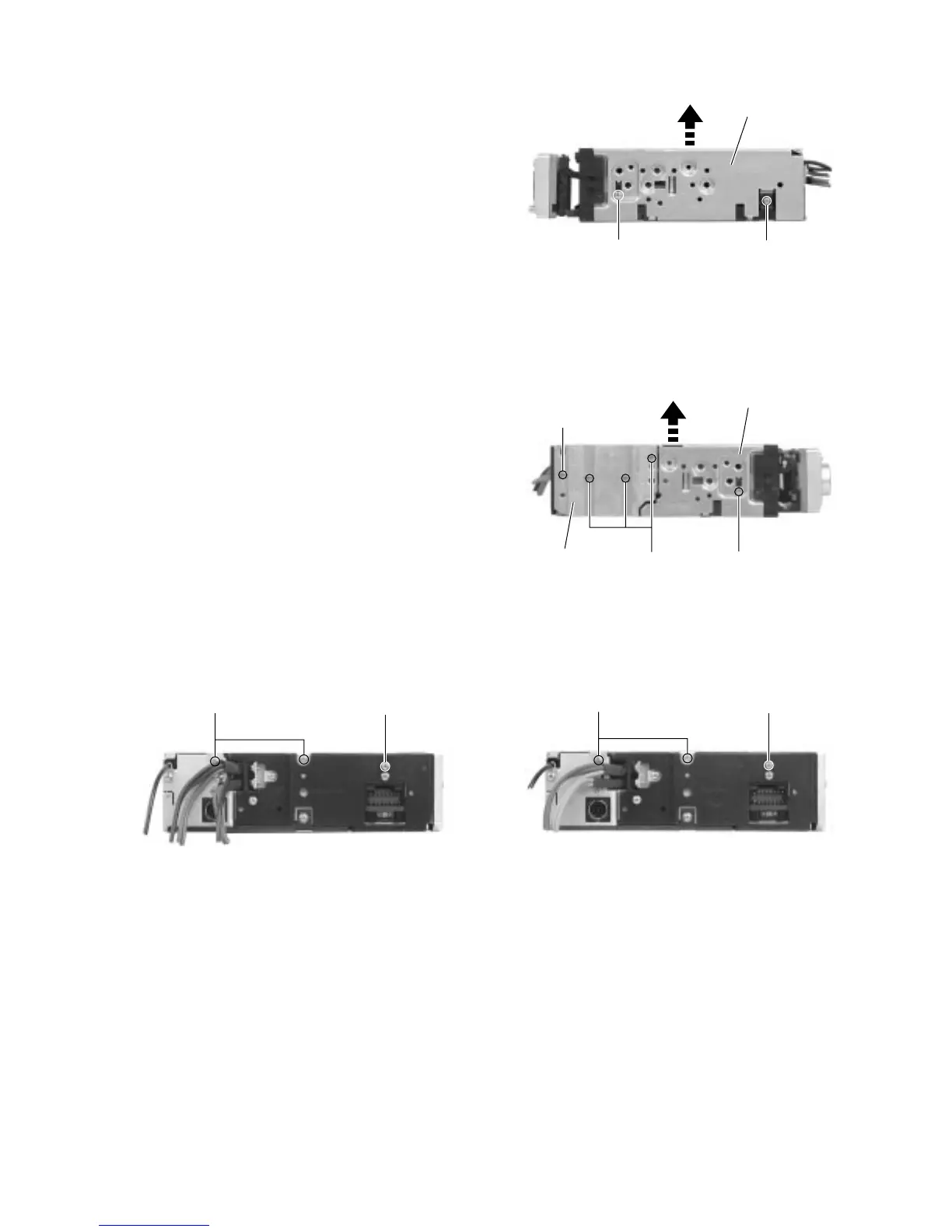

Remove the three screws B on both sides of the
body.
Remove the screw C and the three screws D on the
left side of the body.
Remove the two screws E and the screw F on the
back of the body.
Move the top chassis upward and remove it with the
CD mechanism assembly. The connector on the CD
mechanism assembly is disconnected from
connector CN601 on the main board.
3.
4.
5.
6.
Fig.6 (KD-SH55RE)Fig.6 (KD-SH77RE)
Fig.4
Fig.5
BB
Top chassis
Top chassis
BD
C
E
F
E
F
Heat sink
To Next Page
