JVC KD-SH77R

KD-SH77R/KD-SH55R
1-6
Prior to performing the following procedure, remove
the top chassis.
Remove the three screws G inside the top chassis
and remove the CD mechanisma ssembly.
1.

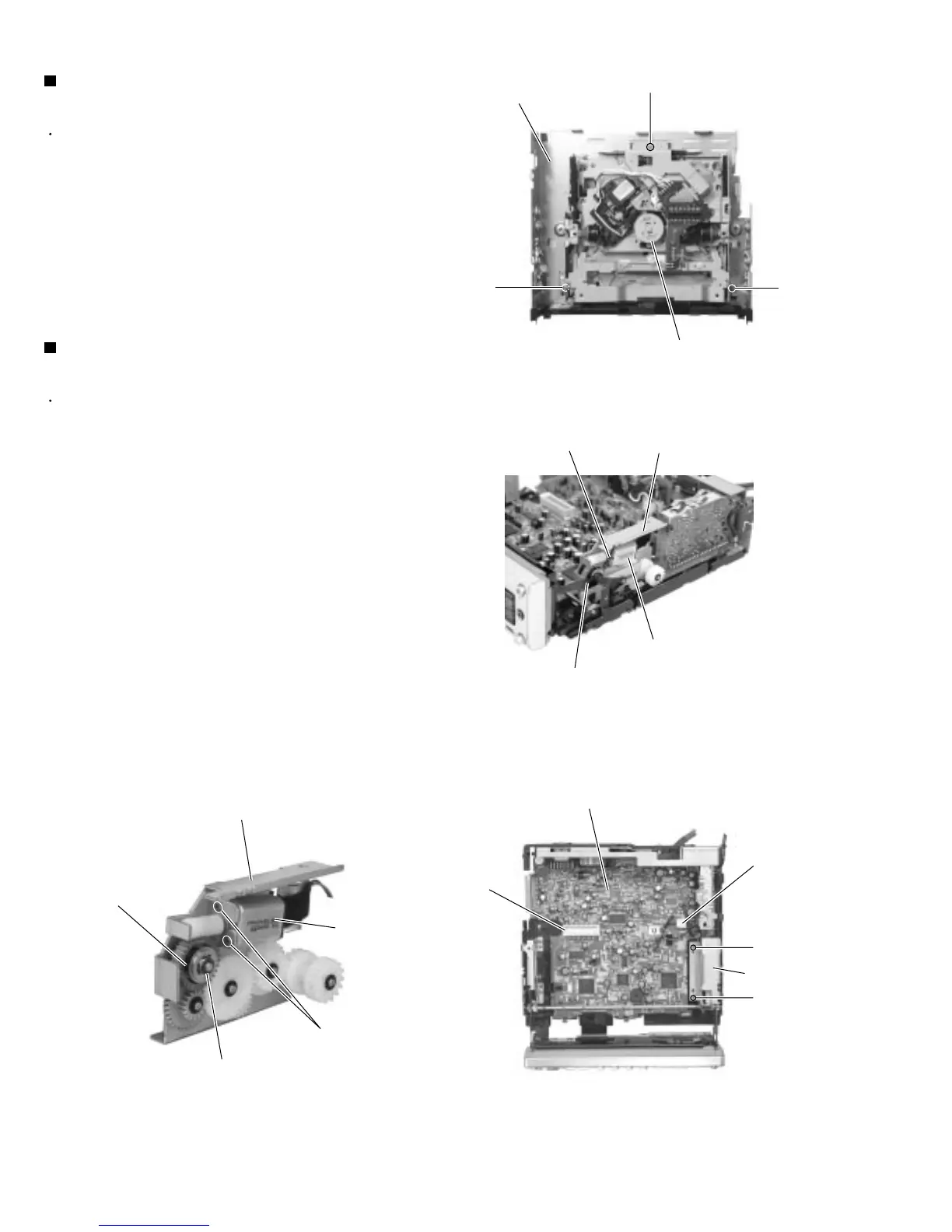

Removing the CD mechanism assembly
(See Fig.7)
Prior to performing the following procedure, remove
the top chassis.
Disconnect the wire from connector CN703 on the
main board.
Remove the motor bracket and the spring attached
to the arm braket assembly (R).
Remove the two screws H attaching the motor
bracket.
Remove the washer attaching the clutch assembly
and pull out the clutch assembly from the shaft.
Remove the two screws I and the motor assembly
from the motor bracket.
1.
2.
3.
4.
5.
Removing the motor assembly
(See Fig.8 to 10)
Fig.7
Fig.8
Fig.9
Fig.10
Top chassis
G
G
G
CD mechanisma ssembly
Arm braket assembly (R)
Motor assembly
Motor braket
Spring
Motor assembly
Motor braket
Motor braket
CN601
CN703
H
H
Main board
R
Clutch assembly
Washer
