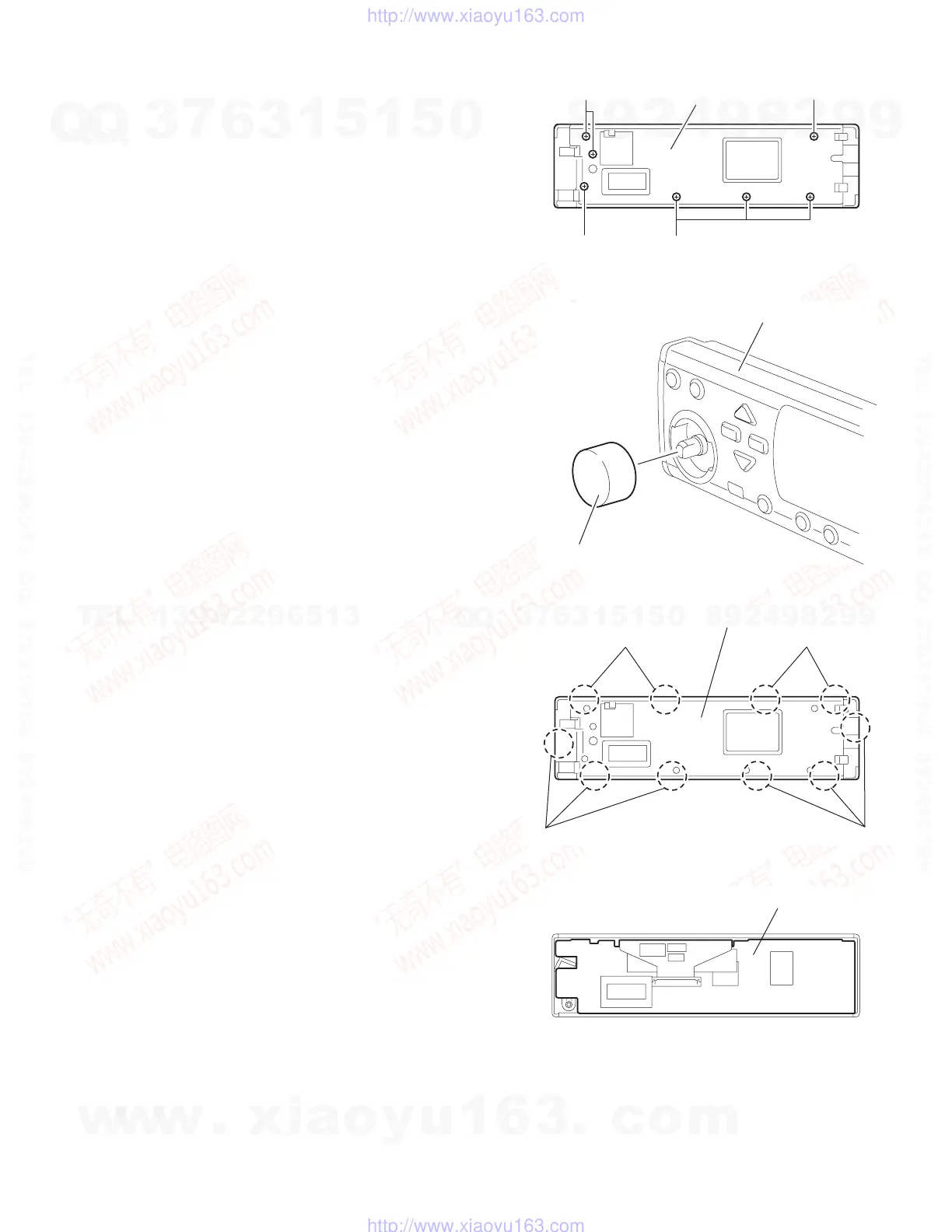

3.1.9 Removing the front board (See Figs.25 to 28)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) Remove the six screws X attaching the rear panel to the
front panel assembly. (See Fig.25.)
(2) Pull out the volume knob from the front side of the front
panel assembly. (See Fig.26.)
(3) Release the ten joints g of the front panel and the rear pan-
el. (See Fig.27.)
(4) Take out the front board from the front panel assembly.
(See Fig.28.)
Fig.25
Fig.26
Fig.27
Fig.28
