1-28 (No.49834)

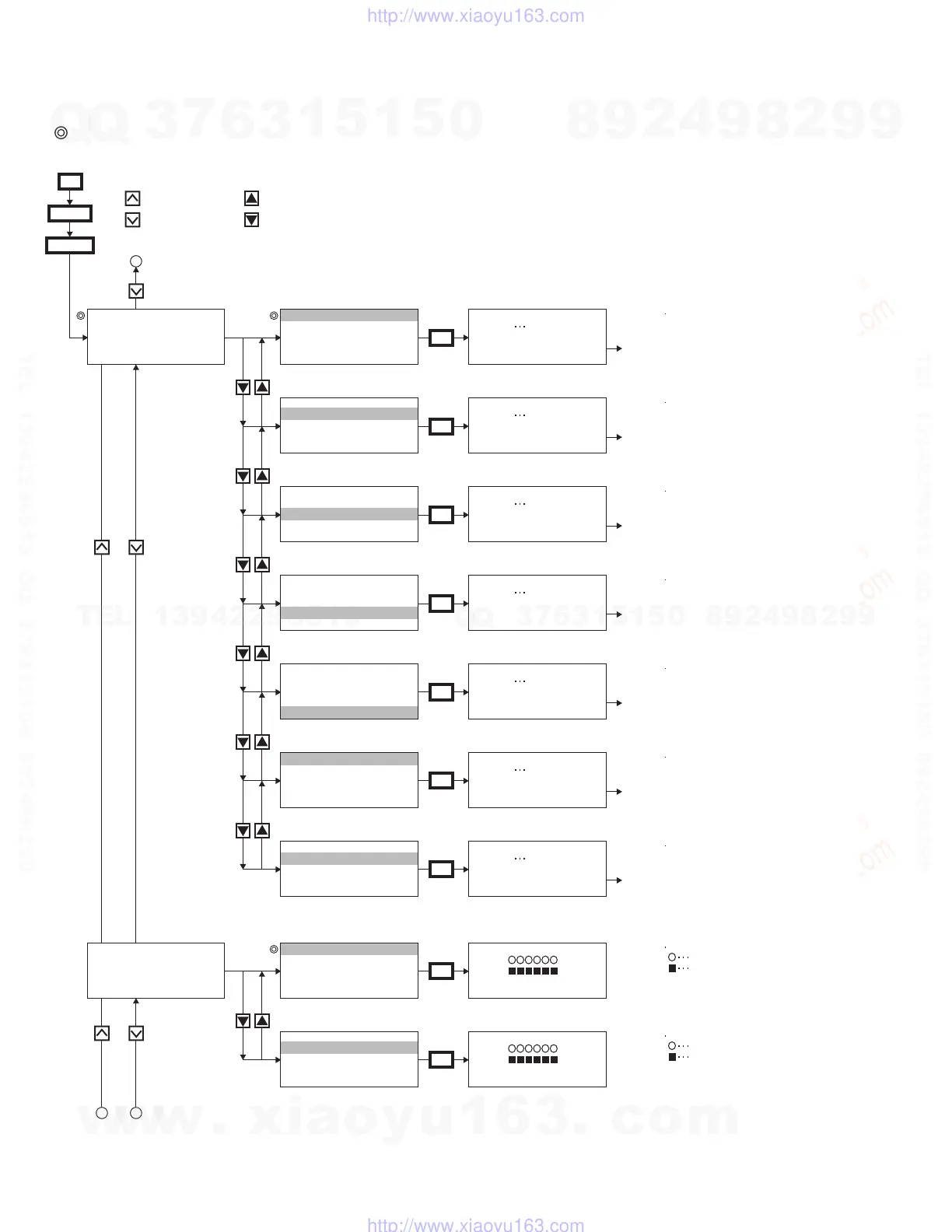

4.2 Service mode
When entering the service mode, "DATA CLEAR" is displayed without fail.
SEL
POWER
SOURCE
: SEEK UP
: SEEK DOWN
: DISC UP
: DISC DOWN
: Initial display
DATA_CLEAR
DISC+/-:CATEGORY
EPROM_CLEAR
NAME_CLEAR
CD_ERROR_CLEAR
CH_ERROR_CLEAR
SH_MECHA_ERROR_CLEAR
SEL
___NOW
___ERROR_CLEAR
*Letter turn on and off
(Turn on: 0.5sec, Turn off: 0.5sec)
Normal
display
EPROM all clear & Flash ROM all clear
(Following all contents are cleared.)
Execute by "SEL" key
EPROM_CLEAR
NAME_CLEAR
CD_ERROR_CLEAR
CH_ERROR_CLEAR
SH_MECHA_ERROR_CLEAR
SEL
___NOW
___NAME_CLEAR
*Letter turn on and off
(Turn on: 0.5sec, Turn off: 0.5sec)
Normal
display
EPROM (DISC/LINE NAME) clear
Execute by "SEL" key
EPROM_CLEAR
NAME_CLEAR
CD_ERROR_CLEAR
CH_ERROR_CLEAR
SH_MECHA_ERROR_CLEAR
SEL
___NOW
___CD_ERROR_CLEAR
*Letter turn on and off
(Turn on: 0.5sec, Turn off: 0.5sec)
___NOW
___CH_ERROR_CLEAR
Normal
display
EPROM (CD ERROR) clear
Execute by "SEL" key
EPROM_CLEAR
NAME_CLEAR
CD_ERROR_CLEAR
CH_ERROR_CLEAR
SH_MECHA_ERROR_CLEAR
SEL
*Letter turn on and off
(Turn on: 0.5sec, Turn off: 0.5sec)
Normal
display
EPROM (CH ERROR) clear
Execute by "SEL" key
EPROM_CLEAR
NAME_CLEAR
CD_ERROR_CLEAR
CH_ERROR_CLEAR
SH_MECHA_ERROR_CLEAR
SEL
___NOW
___SH_MECHA_ERROR_CLEAR
*Letter turn on and off
(Turn on: 0.5sec, Turn off: 0.5sec)
Normal
display
EPROM (SH DOOR MECHA ERROR) clear
Execute by "SEL" key
PICTURE_CLEAR
DSP_ERROR_CLEAR
SEL
___NOW
___PICTURE_CLEAR
*Letter turn on and off
(Turn on: 0.5sec, Turn off: 0.5sec)
Normal
display
Flash ROM (all PICTURE) clear
Execute by "SEL" key
PICTURE_CLEAR
DSP_ERROR_CLEAR
SEL
___NOW
___DSP_ERROR_CLEAR
*Letter turn on and off
(Turn on: 0.5sec, Turn off: 0.5sec)
Normal
display
Flash ROM (all DSP retry count number) clear
Execute by "SEL" key
RUNNING_MODE
DISC+/-:FUNCTION
RUNNING_CD
RUNNING_SH_MECHA
SEL
RUNNING_CD
COUNT :
ERROR :
CD running mode (SH mecha open)
Running number
CD error during running mode
by error code chart
RUNNING_CD
RUNNING_SH_MECHA
SEL
RUNNING_SH_MECHA
COUNT :
ERROR :
Door mecha running mode (No retry action)
Running number
Door error during running mode
by error code chart
