JVC KD-SH9105 - Page 49

KD-SH9105
2-1
AB CD E F G
1
2
3
4
5
VOUTL
VOUTR
CD mecha board
Main board
Front board
to
to
to
to
to

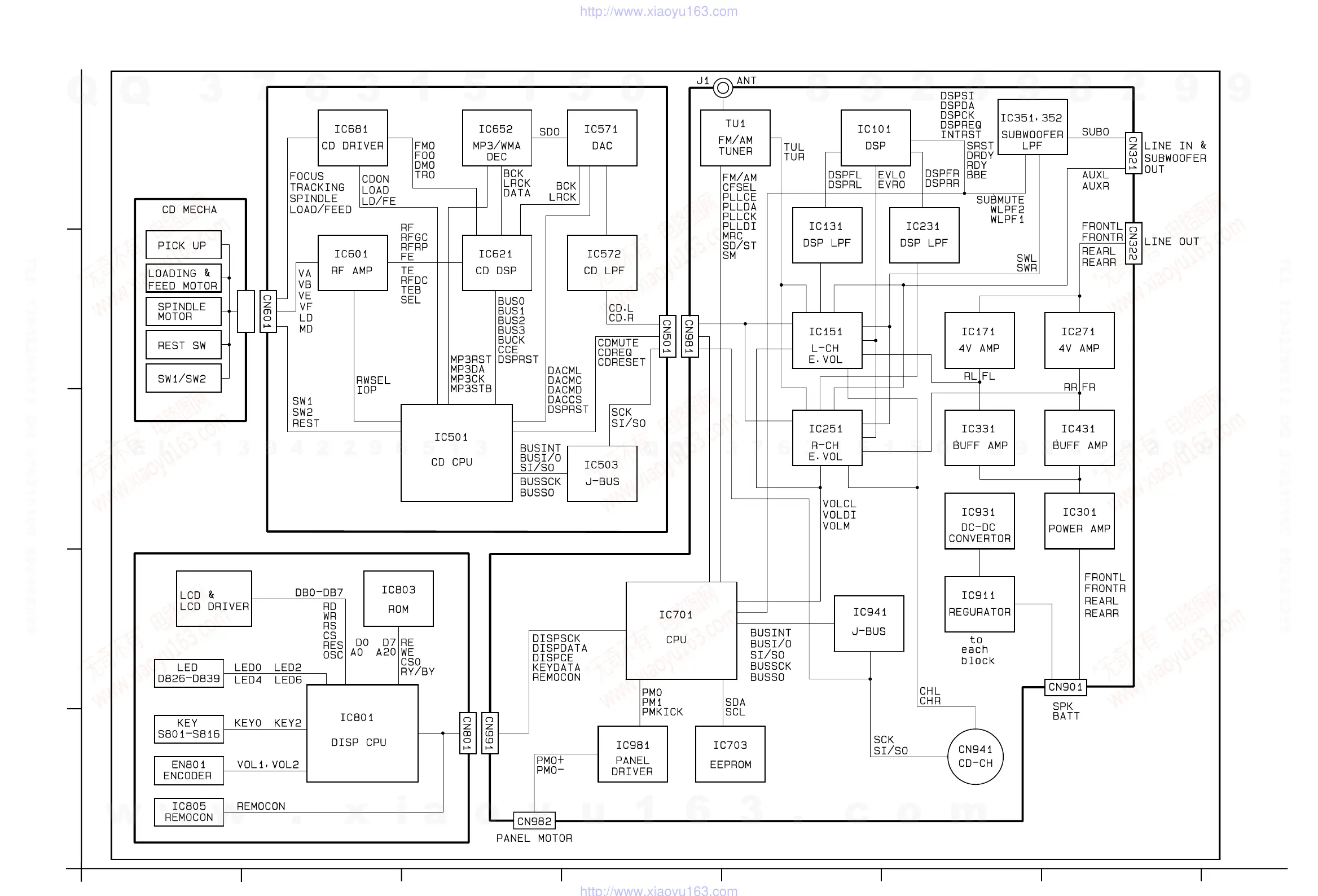

Block diagram
