1-8 (No.49834)

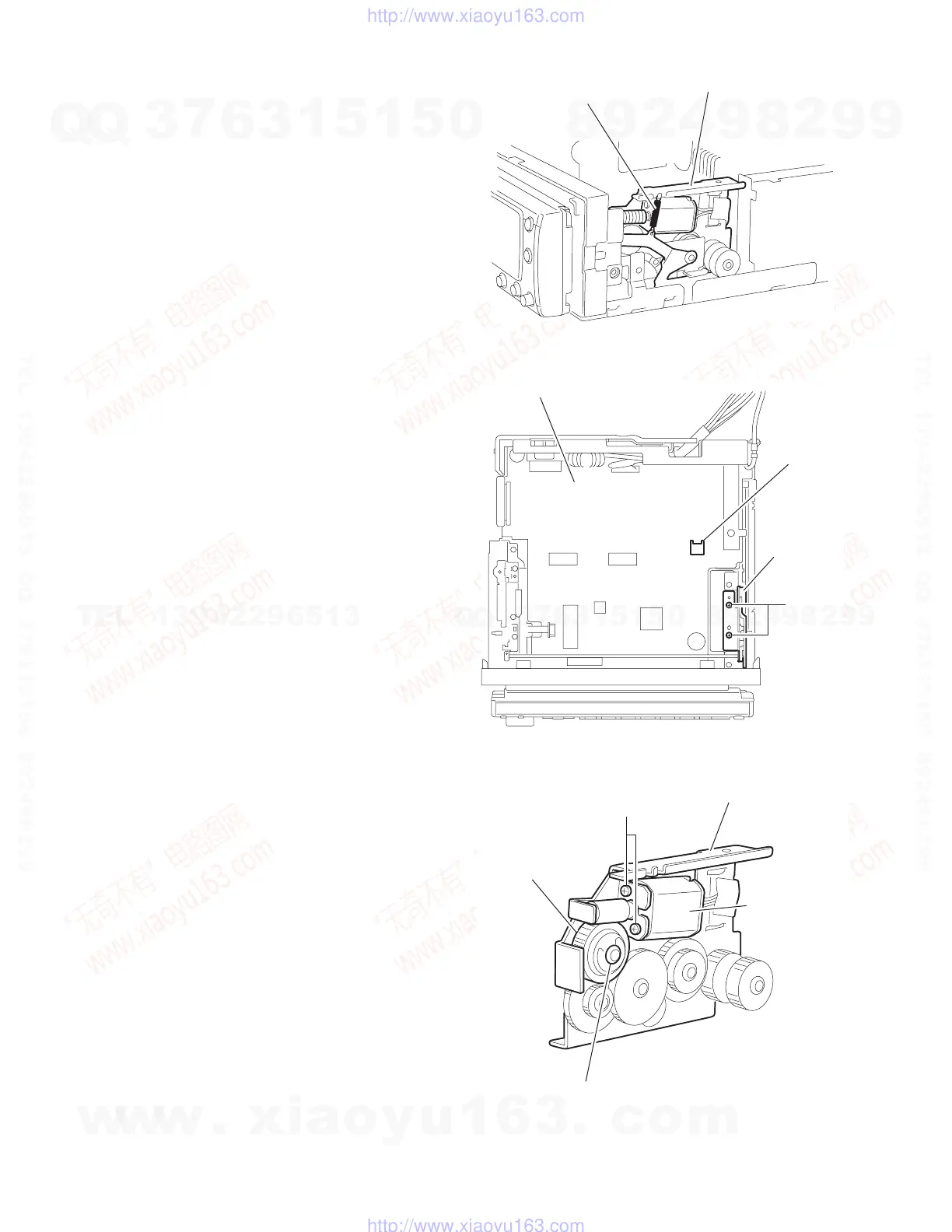

3.1.5 Removing the motor assembly
(See Figs.9 to 11)
• Prior to performing the following procedures, remove the top
chassis.
(1) Remove the spring from the motor bracket. (See Fig.9.)
(2) Disconnect the wire from the connector CN982 on the main
board. (See Fig.10.)
(3) Remove the two screws J attaching the motor bracket.
(See Fig.10.)
(4) Remove the washer attaching the clutch assembly and pull
out the clutch assembly from the shaft. (See Fig.11.)
(5) Remove the two screws K attaching the motor assembly to
the motor bracket. (See Fig.11.)
Fig.9
Fig.10
Fig.11
Spring
Motor braket
CN982
Motor braket
Main board
J
K
Motor braket
Motor assembly
Clutch assembly
Washer
