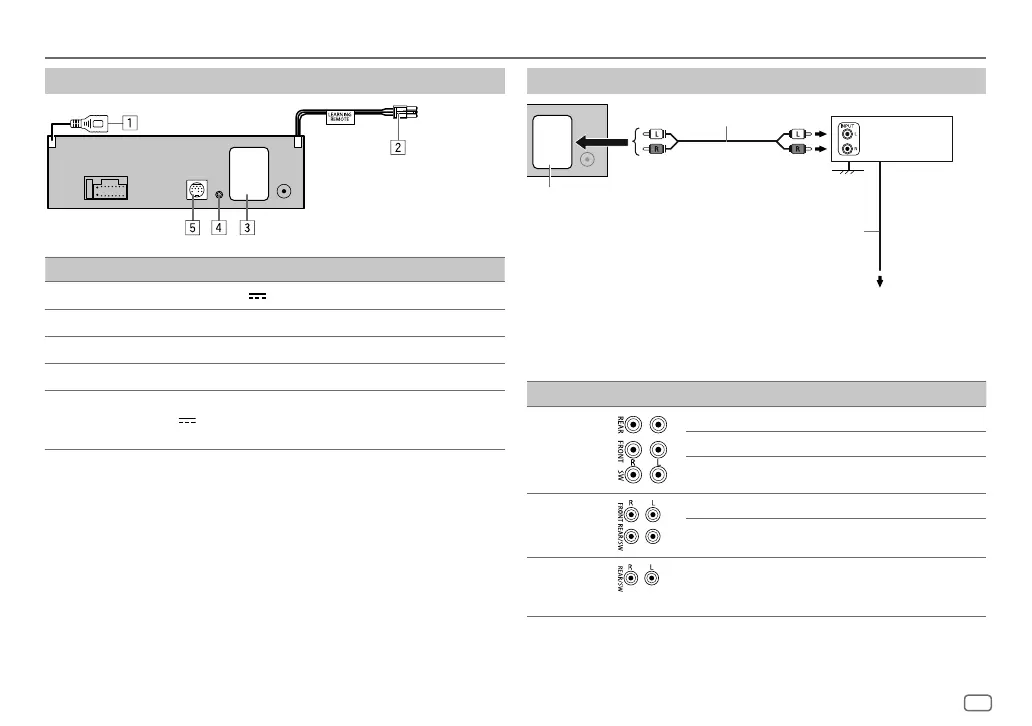

Installation/Connection
Connect external components
No Part
1
For KD-T915BTS: USB cable (DC 5 V 1.5 A) (approx. 1 m/3.3 feet)
2
For KD-T711BT: Learning steering remote (page 36)
3
Output terminals (See “Connect external amplifiers via output terminals”.)
4
Microphone input jack (page 20)
5
For KD-T915BTS/KD-T910BTS/KD-TD91BTS/KD-T91MBS:
Expansion port (12 V
500 mA): To the optional SiriusXM Vehicle Tuner (commercially
available). (Page 15)
Connect external amplifiers via output terminals
* Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the unit.
Model Output terminals 2-way crossover 3-way crossover
KD-T915BTS/
KD-T91MBS
REAR: Rear output Tweeter output
FRONT: Front output Mid Range output
SW: Subwoofer output Woofer output
KD-T910BTS/
KD-TD91BTS/
KD-SR86BT
FRONT: Front output Mid Range output
REAR/SW: Rear/subwoofer output Woofer output
KD-T711BT/
KD-T710BT/
KD-TD71BT
REAR/SW: Rear/subwoofer output Woofer output
JVC Amplifier*
Signal cord (not supplied)
To remote lead (blue/white) of the
wiring harness. (Page 46)
Remote wire (not supplied)
Output terminals
