ENGLISH
41

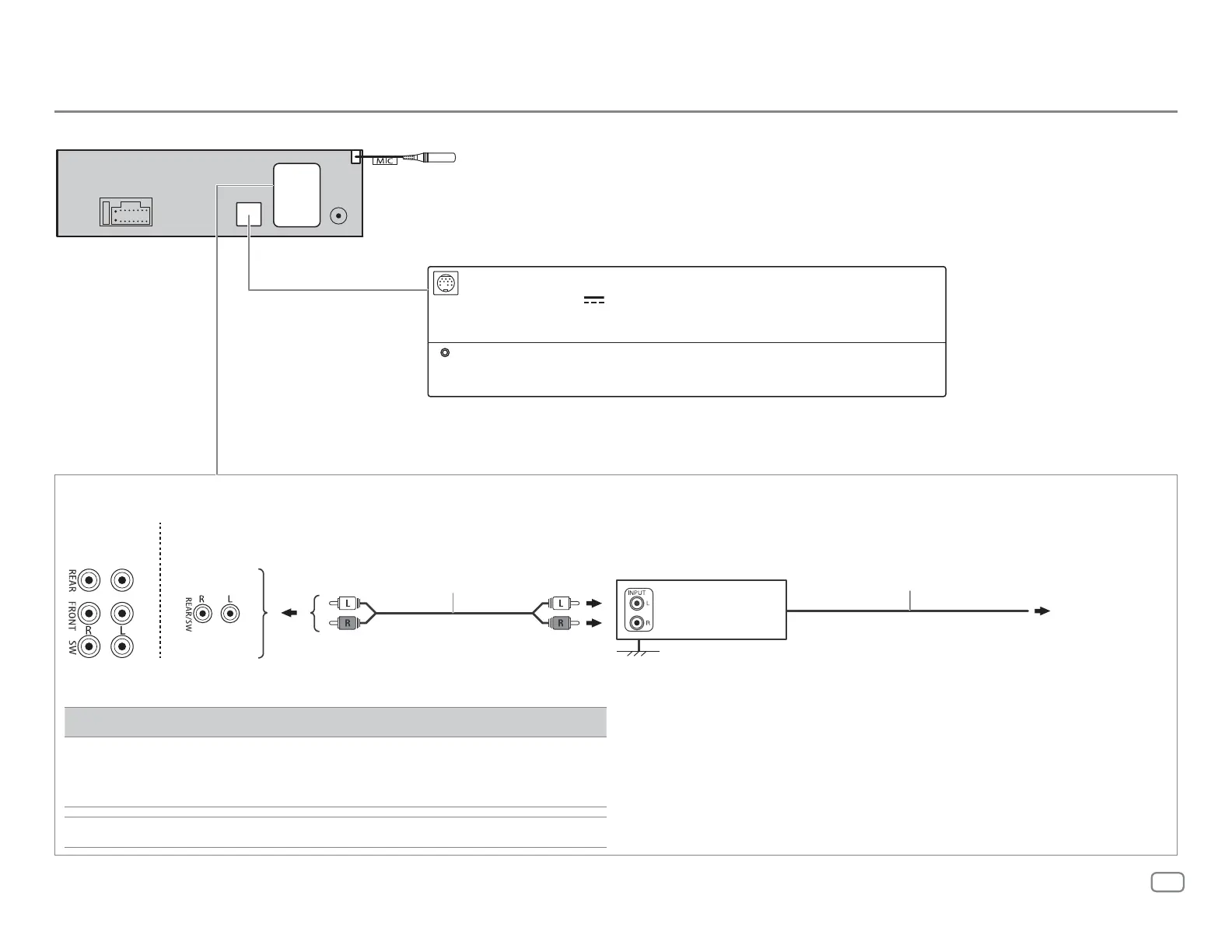

Connecting external components
Connecting external amplifiers via output terminals
*2 Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the
unit.
Output terminals 2-way crossover setting 3-way crossover setting
REAR :
FRONT :
SW :
Rear output
Front output
Subwoofer output
Tweeter output
Mid Range output
Woofer output
REAR/SW : Rear/subwoofer output Woofer output
INSTALLATION/CONNECTION
KD-X360BTS KD-X260BT/
KD-SX25BT
JVC Amplifier*2
Signal cord (not supplied)
To remote lead
(blue/white) of
the wiring harness.
(Page 40)
Remote wire (not supplied)
Output terminals
KD-X260BT/KD-SX25BT:
Microphone input jack (page 15)
KD-X360BTS:
Expansion port (12 V
500 mA): To the optional SiriusXM Vehicle Tuner
(commercially available) (page 12)
KD-X360BTS: MIC (Microphone input terminal) (page 15)
