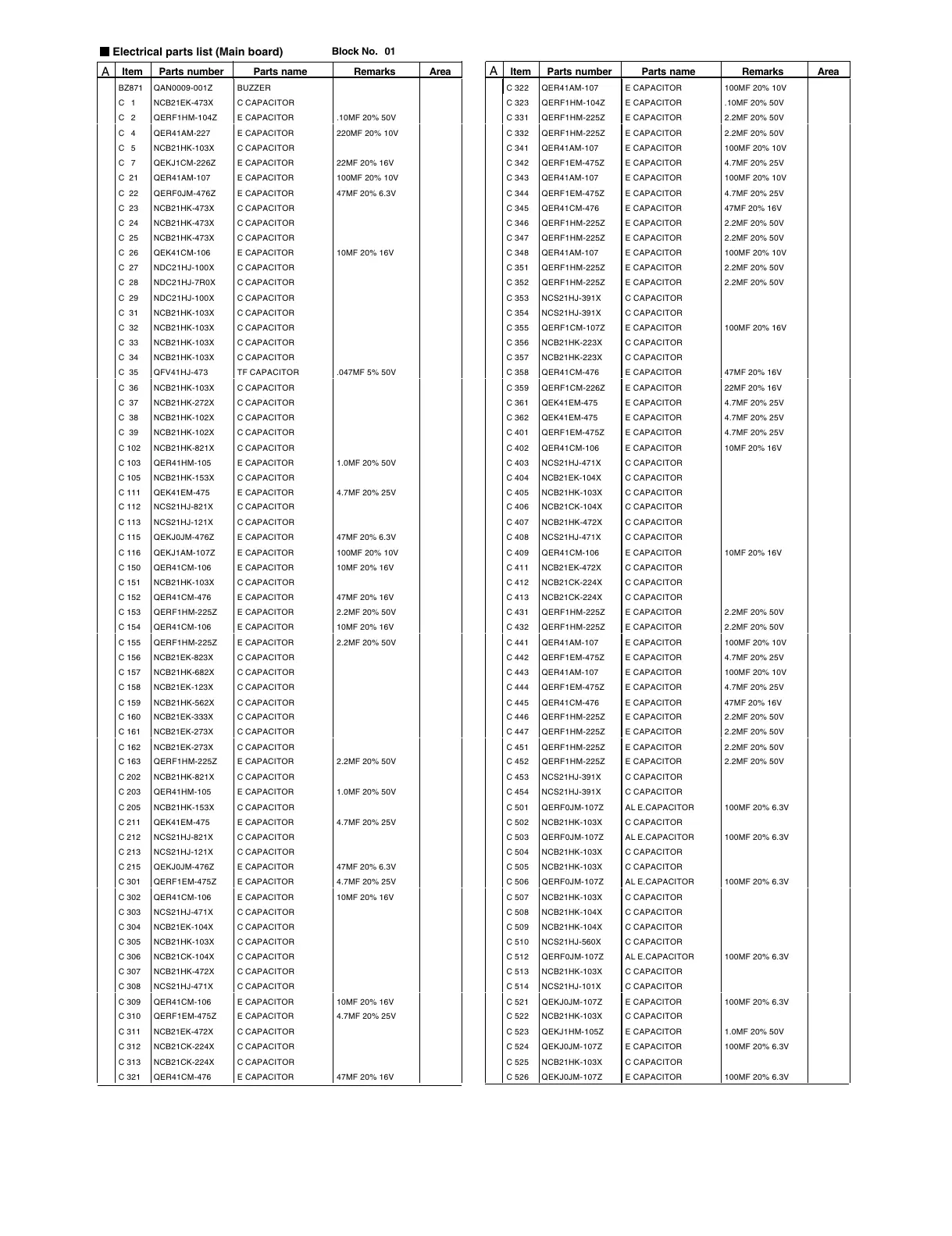

Electrical parts list (Main board)

Remarks

Block No.

01

BZ871

QAN0009-001Z

BUZZER

C 1

NCB21EK-473X

C CAPACITOR

C 2

QERF1HM-104Z

E CAPACITOR

.10MF 20% 50V

C 4

QER41AM-227

E CAPACITOR

220MF 20% 10V

C 5

NCB21HK-103X

C CAPACITOR

C 7

QEKJ1CM-226Z

E CAPACITOR

22MF 20% 16V

C 21

QER41AM-107

E CAPACITOR

100MF 20% 10V

C 22

QERF0JM-476Z

E CAPACITOR

47MF 20% 6.3V

C 23

NCB21HK-473X

C CAPACITOR

C 24

NCB21HK-473X

C CAPACITOR

C 25

NCB21HK-473X

C CAPACITOR

C 26

QEK41CM-106

E CAPACITOR

10MF 20% 16V

C 27

NDC21HJ-100X

C CAPACITOR

C 28

NDC21HJ-7R0X

C CAPACITOR

C 29

NDC21HJ-100X

C CAPACITOR

C 31

NCB21HK-103X

C CAPACITOR

C 32

NCB21HK-103X

C CAPACITOR

C 33

NCB21HK-103X

C CAPACITOR

C 34

NCB21HK-103X

C CAPACITOR

C 35

QFV41HJ-473

TF CAPACITOR

.047MF 5% 50V

C 36

NCB21HK-103X

C CAPACITOR

C 37

NCB21HK-272X

C CAPACITOR

C 38

NCB21HK-102X

C CAPACITOR

C 39

NCB21HK-102X

C CAPACITOR

C 102

NCB21HK-821X

C CAPACITOR

C 103

QER41HM-105

E CAPACITOR

1.0MF 20% 50V

C 105

NCB21HK-153X

C CAPACITOR

C 111

QEK41EM-475

E CAPACITOR

4.7MF 20% 25V

C 112

NCS21HJ-821X

C CAPACITOR

C 113

NCS21HJ-121X

C CAPACITOR

C 115

QEKJ0JM-476Z

E CAPACITOR

47MF 20% 6.3V

C 116

QEKJ1AM-107Z

E CAPACITOR

100MF 20% 10V

C 150

QER41CM-106

E CAPACITOR

10MF 20% 16V

C 151

NCB21HK-103X

C CAPACITOR

C 152

QER41CM-476

E CAPACITOR

47MF 20% 16V

C 153

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 154

QER41CM-106

E CAPACITOR

10MF 20% 16V

C 155

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 156

NCB21EK-823X

C CAPACITOR

C 157

NCB21HK-682X

C CAPACITOR

C 158

NCB21EK-123X

C CAPACITOR

C 159

NCB21HK-562X

C CAPACITOR

C 160

NCB21EK-333X

C CAPACITOR

C 161

NCB21EK-273X

C CAPACITOR

C 162

NCB21EK-273X

C CAPACITOR

C 163

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 202

NCB21HK-821X

C CAPACITOR

C 203

QER41HM-105

E CAPACITOR

1.0MF 20% 50V

C 205

NCB21HK-153X

C CAPACITOR

C 211

QEK41EM-475

E CAPACITOR

4.7MF 20% 25V

C 212

NCS21HJ-821X

C CAPACITOR

C 213

NCS21HJ-121X

C CAPACITOR

C 215

QEKJ0JM-476Z

E CAPACITOR

47MF 20% 6.3V

C 301

QERF1EM-475Z

E CAPACITOR

4.7MF 20% 25V

C 302

QER41CM-106

E CAPACITOR

10MF 20% 16V

C 303

NCS21HJ-471X

C CAPACITOR

C 304

NCB21EK-104X

C CAPACITOR

C 305

NCB21HK-103X

C CAPACITOR

C 306

NCB21CK-104X

C CAPACITOR

C 307

NCB21HK-472X

C CAPACITOR

C 308

NCS21HJ-471X

C CAPACITOR

C 309

QER41CM-106

E CAPACITOR

10MF 20% 16V

C 310

QERF1EM-475Z

E CAPACITOR

4.7MF 20% 25V

C 311

NCB21EK-472X

C CAPACITOR

C 312

NCB21CK-224X

C CAPACITOR

C 313

NCB21CK-224X

C CAPACITOR

C 321

QER41CM-476

E CAPACITOR

47MF 20% 16V

C 322

QER41AM-107

E CAPACITOR

100MF 20% 10V

C 323

QERF1HM-104Z

E CAPACITOR

.10MF 20% 50V

C 331

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 332

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 341

QER41AM-107

E CAPACITOR

100MF 20% 10V

C 342

QERF1EM-475Z

E CAPACITOR

4.7MF 20% 25V

C 343

QER41AM-107

E CAPACITOR

100MF 20% 10V

C 344

QERF1EM-475Z

E CAPACITOR

4.7MF 20% 25V

C 345

QER41CM-476

E CAPACITOR

47MF 20% 16V

C 346

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 347

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 348

QER41AM-107

E CAPACITOR

100MF 20% 10V

C 351

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 352

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 353

NCS21HJ-391X

C CAPACITOR

C 354

NCS21HJ-391X

C CAPACITOR

C 355

QERF1CM-107Z

E CAPACITOR

100MF 20% 16V

C 356

NCB21HK-223X

C CAPACITOR

C 357

NCB21HK-223X

C CAPACITOR

C 358

QER41CM-476

E CAPACITOR

47MF 20% 16V

C 359

QERF1CM-226Z

E CAPACITOR

22MF 20% 16V

C 361

QEK41EM-475

E CAPACITOR

4.7MF 20% 25V

C 362

QEK41EM-475

E CAPACITOR

4.7MF 20% 25V

C 401

QERF1EM-475Z

E CAPACITOR

4.7MF 20% 25V

C 402

QER41CM-106

E CAPACITOR

10MF 20% 16V

C 403

NCS21HJ-471X

C CAPACITOR

C 404

NCB21EK-104X

C CAPACITOR

C 405

NCB21HK-103X

C CAPACITOR

C 406

NCB21CK-104X

C CAPACITOR

C 407

NCB21HK-472X

C CAPACITOR

C 408

NCS21HJ-471X

C CAPACITOR

C 409

QER41CM-106

E CAPACITOR

10MF 20% 16V

C 411

NCB21EK-472X

C CAPACITOR

C 412

NCB21CK-224X

C CAPACITOR

C 413

NCB21CK-224X

C CAPACITOR

C 431

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 432

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 441

QER41AM-107

E CAPACITOR

100MF 20% 10V

C 442

QERF1EM-475Z

E CAPACITOR

4.7MF 20% 25V

C 443

QER41AM-107

E CAPACITOR

100MF 20% 10V

C 444

QERF1EM-475Z

E CAPACITOR

4.7MF 20% 25V

C 445

QER41CM-476

E CAPACITOR

47MF 20% 16V

C 446

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 447

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 451

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 452

QERF1HM-225Z

E CAPACITOR

2.2MF 20% 50V

C 453

NCS21HJ-391X

C CAPACITOR

C 454

NCS21HJ-391X

C CAPACITOR

C 501

QERF0JM-107Z

AL E.CAPACITOR

100MF 20% 6.3V

C 502

NCB21HK-103X

C CAPACITOR

C 503

QERF0JM-107Z

AL E.CAPACITOR

100MF 20% 6.3V

C 504

NCB21HK-103X

C CAPACITOR

C 505

NCB21HK-103X

C CAPACITOR

C 506

QERF0JM-107Z

AL E.CAPACITOR

100MF 20% 6.3V

C 507

NCB21HK-103X

C CAPACITOR

C 508

NCB21HK-104X

C CAPACITOR

C 509

NCB21HK-104X

C CAPACITOR

C 510

NCS21HJ-560X

C CAPACITOR

C 512

QERF0JM-107Z

AL E.CAPACITOR

100MF 20% 6.3V

C 513

NCB21HK-103X

C CAPACITOR

C 514

NCS21HJ-101X

C CAPACITOR

C 521

QEKJ0JM-107Z

E CAPACITOR

100MF 20% 6.3V

C 522

NCB21HK-103X

C CAPACITOR

C 523

QEKJ1HM-105Z

E CAPACITOR

1.0MF 20% 50V

C 524

QEKJ0JM-107Z

E CAPACITOR

100MF 20% 6.3V

C 525

NCB21HK-103X

C CAPACITOR

C 526

QEKJ0JM-107Z

E CAPACITOR

100MF 20% 6.3V

Item

Parts number

Parts name

Area

A

Remarks
