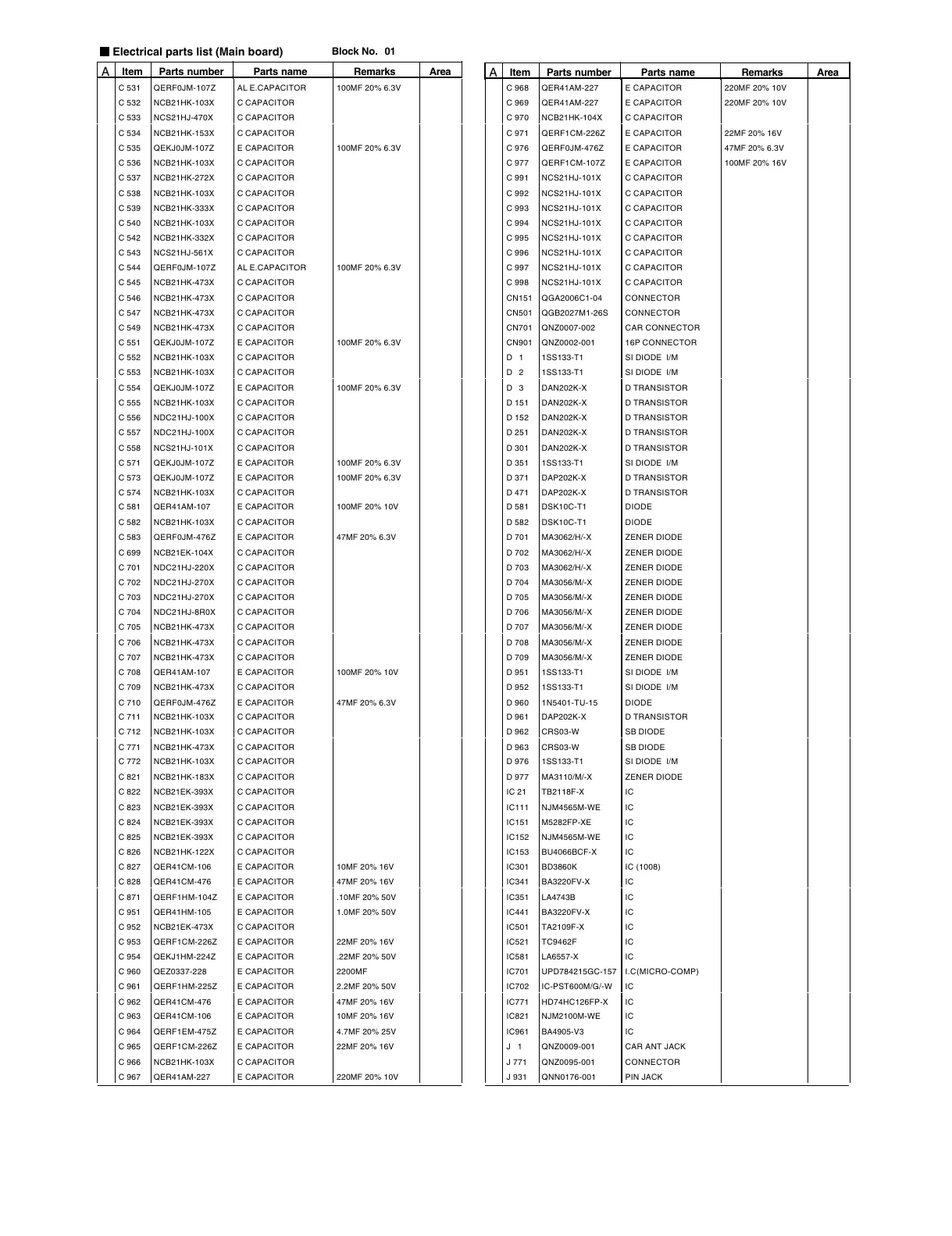

JVC KD-SX950 - Page 45

Item
Parts number
Parts name
Area
A
Electrical parts list (Main board)
Remarks
Block No.
01
C 531
QERF0JM-107Z
AL E.CAPACITOR
100MF 20% 6.3V
C 532
NCB21HK-103X
C CAPACITOR
C 533
NCS21HJ-470X
C CAPACITOR
C 534
NCB21HK-153X
C CAPACITOR
C 535
QEKJ0JM-107Z
E CAPACITOR
100MF 20% 6.3V
C 536
NCB21HK-103X
C CAPACITOR
C 537
NCB21HK-272X
C CAPACITOR
C 538
NCB21HK-103X
C CAPACITOR
C 539
NCB21HK-333X
C CAPACITOR
C 540
NCB21HK-103X
C CAPACITOR
C 542
NCB21HK-332X
C CAPACITOR
C 543
NCS21HJ-561X
C CAPACITOR
C 544
QERF0JM-107Z
AL E.CAPACITOR
100MF 20% 6.3V
C 545
NCB21HK-473X
C CAPACITOR
C 546
NCB21HK-473X
C CAPACITOR
C 547
NCB21HK-473X
C CAPACITOR
C 549
NCB21HK-473X
C CAPACITOR
C 551
QEKJ0JM-107Z
E CAPACITOR
100MF 20% 6.3V
C 552
NCB21HK-103X
C CAPACITOR
C 553
NCB21HK-103X
C CAPACITOR
C 554
QEKJ0JM-107Z
E CAPACITOR
100MF 20% 6.3V
C 555
NCB21HK-103X
C CAPACITOR
C 556
NDC21HJ-100X
C CAPACITOR
C 557
NDC21HJ-100X
C CAPACITOR
C 558
NCS21HJ-101X
C CAPACITOR
C 571
QEKJ0JM-107Z
E CAPACITOR
100MF 20% 6.3V
C 573
QEKJ0JM-107Z
E CAPACITOR
100MF 20% 6.3V
C 574
NCB21HK-103X
C CAPACITOR
C 581
QER41AM-107
E CAPACITOR
100MF 20% 10V
C 582
NCB21HK-103X
C CAPACITOR
C 583
QERF0JM-476Z
E CAPACITOR
47MF 20% 6.3V
C 699
NCB21EK-104X
C CAPACITOR
C 701
NDC21HJ-220X
C CAPACITOR
C 702
NDC21HJ-270X
C CAPACITOR
C 703
NDC21HJ-270X
C CAPACITOR
C 704
NDC21HJ-8R0X
C CAPACITOR
C 705
NCB21HK-473X
C CAPACITOR
C 706
NCB21HK-473X
C CAPACITOR
C 707
NCB21HK-473X
C CAPACITOR
C 708
QER41AM-107
E CAPACITOR
100MF 20% 10V
C 709
NCB21HK-473X
C CAPACITOR
C 710
QERF0JM-476Z
E CAPACITOR
47MF 20% 6.3V
C 711
NCB21HK-103X
C CAPACITOR
C 712
NCB21HK-103X
C CAPACITOR
C 771
NCB21HK-473X
C CAPACITOR
C 772
NCB21HK-103X
C CAPACITOR
C 821
NCB21HK-183X
C CAPACITOR
C 822
NCB21EK-393X
C CAPACITOR
C 823
NCB21EK-393X
C CAPACITOR
C 824
NCB21EK-393X
C CAPACITOR
C 825
NCB21EK-393X
C CAPACITOR
C 826
NCB21HK-122X
C CAPACITOR
C 827
QER41CM-106
E CAPACITOR
10MF 20% 16V
C 828
QER41CM-476
E CAPACITOR
47MF 20% 16V
C 871
QERF1HM-104Z
E CAPACITOR
.10MF 20% 50V
C 951
QER41HM-105
E CAPACITOR
1.0MF 20% 50V
C 952
NCB21EK-473X
C CAPACITOR
C 953
QERF1CM-226Z
E CAPACITOR
22MF 20% 16V
C 954
QEKJ1HM-224Z
E CAPACITOR
.22MF 20% 50V
C 960
QEZ0337-228
E CAPACITOR
2200MF
C 961
QERF1HM-225Z
E CAPACITOR
2.2MF 20% 50V
C 962
QER41CM-476
E CAPACITOR
47MF 20% 16V
C 963
QER41CM-106
E CAPACITOR
10MF 20% 16V
C 964
QERF1EM-475Z
E CAPACITOR
4.7MF 20% 25V
C 965
QERF1CM-226Z
E CAPACITOR
22MF 20% 16V
C 966
NCB21HK-103X
C CAPACITOR
C 967
QER41AM-227
E CAPACITOR
220MF 20% 10V
C 968
QER41AM-227
E CAPACITOR
220MF 20% 10V
C 969
QER41AM-227
E CAPACITOR
220MF 20% 10V
C 970
NCB21HK-104X
C CAPACITOR
C 971
QERF1CM-226Z
E CAPACITOR
22MF 20% 16V
C 976
QERF0JM-476Z
E CAPACITOR
47MF 20% 6.3V
C 977
QERF1CM-107Z
E CAPACITOR
100MF 20% 16V
C 991
NCS21HJ-101X
C CAPACITOR
C 992
NCS21HJ-101X
C CAPACITOR
C 993
NCS21HJ-101X
C CAPACITOR
C 994
NCS21HJ-101X
C CAPACITOR
C 995
NCS21HJ-101X
C CAPACITOR
C 996
NCS21HJ-101X
C CAPACITOR
C 997
NCS21HJ-101X
C CAPACITOR
C 998
NCS21HJ-101X
C CAPACITOR
CN151
QGA2006C1-04
CONNECTOR
CN501
QGB2027M1-26S
CONNECTOR
CN701
QNZ0007-002
CAR CONNECTOR
CN901
QNZ0002-001
16P CONNECTOR
D 1
1SS133-T1
SI DIODE I/M
D 2
1SS133-T1
SI DIODE I/M
D 3
DAN202K-X
D TRANSISTOR
D 151
DAN202K-X
D TRANSISTOR
D 152
DAN202K-X
D TRANSISTOR
D 251
DAN202K-X
D TRANSISTOR
D 301
DAN202K-X
D TRANSISTOR
D 351
1SS133-T1
SI DIODE I/M
D 371
DAP202K-X
D TRANSISTOR
D 471
DAP202K-X
D TRANSISTOR
D 581
DSK10C-T1
DIODE
D 582
DSK10C-T1
DIODE
D 701
MA3062/H/-X
ZENER DIODE
D 702
MA3062/H/-X
ZENER DIODE
D 703
MA3062/H/-X
ZENER DIODE
D 704
MA3056/M/-X
ZENER DIODE
D 705
MA3056/M/-X
ZENER DIODE
D 706
MA3056/M/-X
ZENER DIODE
D 707
MA3056/M/-X
ZENER DIODE
D 708
MA3056/M/-X
ZENER DIODE
D 709
MA3056/M/-X
ZENER DIODE
D 951
1SS133-T1
SI DIODE I/M
D 952
1SS133-T1
SI DIODE I/M
D 960
1N5401-TU-15
DIODE
D 961
DAP202K-X
D TRANSISTOR
D 962
CRS03-W
SB DIODE
D 963
CRS03-W
SB DIODE
D 976
1SS133-T1
SI DIODE I/M
D 977
MA3110/M/-X
ZENER DIODE
IC 21
TB2118F-X
IC
IC111
NJM4565M-WE
IC
IC151
M5282FP-XE
IC
IC152
NJM4565M-WE
IC
IC153
BU4066BCF-X
IC
IC301
BD3860K
IC (1008)
IC341
BA3220FV-X
IC
IC351
LA4743B
IC
IC441
BA3220FV-X
IC
IC501
TA2109F-X
IC
IC521
TC9462F
IC
IC581
LA6557-X
IC
IC701
UPD784215GC-157
I.C(MICRO-COMP)
IC702
IC-PST600M/G/-W
IC
IC771
HD74HC126FP-X
IC
IC821
NJM2100M-WE
IC
IC961
BA4905-V3
IC
J 1
QNZ0009-001
CAR ANT JACK
J 771
QNZ0095-001
CONNECTOR
J 931
QNN0176-001
PIN JACK
Item
Parts number
Parts name
Area
A
Remarks
