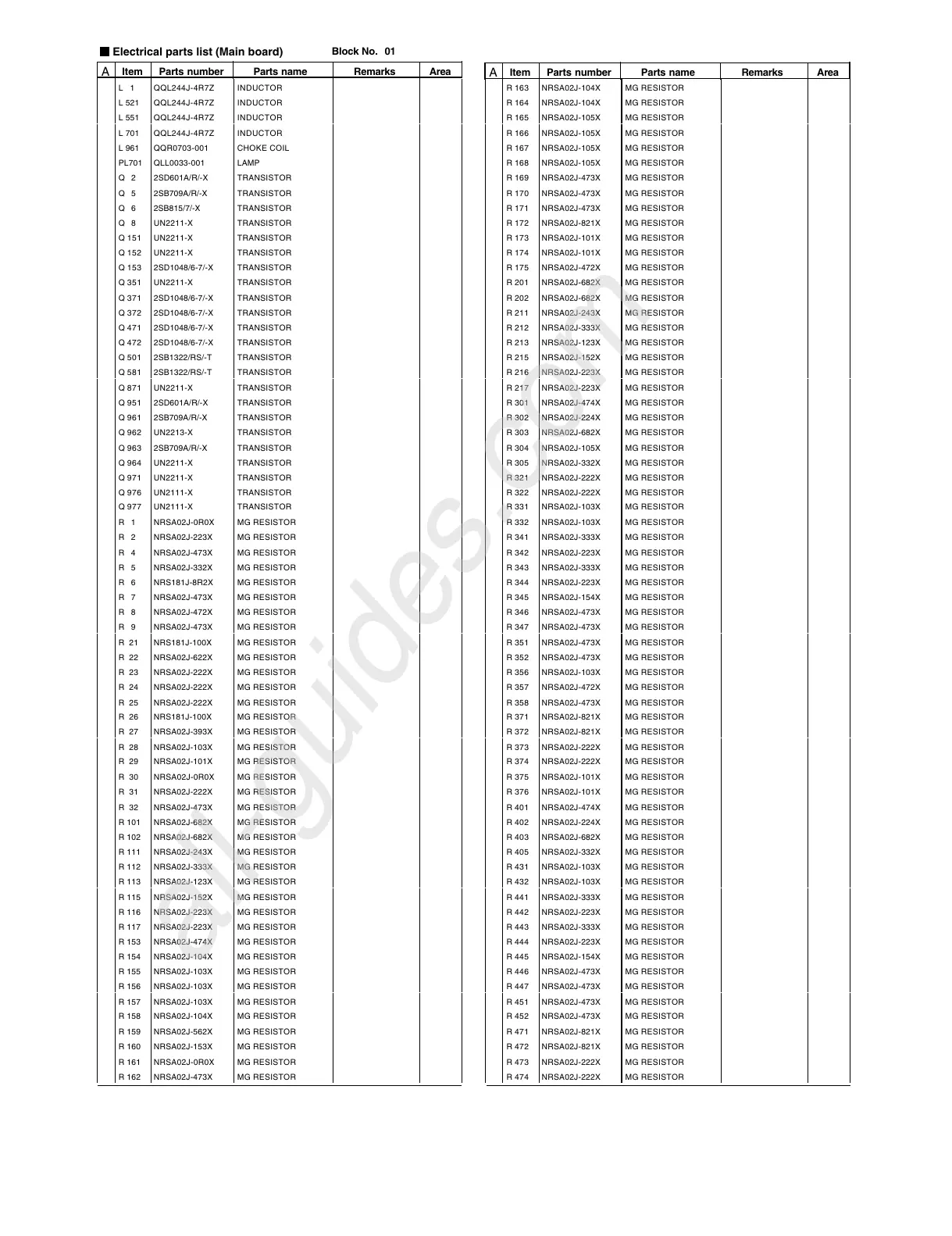

Electrical parts list (Main board)
Remarks
Block No.
01
L 1
QQL244J-4R7Z
INDUCTOR
L 521
QQL244J-4R7Z
INDUCTOR
L 551
QQL244J-4R7Z
INDUCTOR
L 701
QQL244J-4R7Z
INDUCTOR
L 961
QQR0703-001
CHOKE COIL
PL701
QLL0033-001
LAMP
Q 2
2SD601A/R/-X
TRANSISTOR
Q 5
2SB709A/R/-X
TRANSISTOR
Q 6
2SB815/7/-X
TRANSISTOR
Q 8
UN2211-X
TRANSISTOR
Q 151
UN2211-X
TRANSISTOR
Q 152
UN2211-X
TRANSISTOR
Q 153
2SD1048/6-7/-X
TRANSISTOR
Q 351
UN2211-X
TRANSISTOR
Q 371
2SD1048/6-7/-X
TRANSISTOR
Q 372
2SD1048/6-7/-X
TRANSISTOR
Q 471
2SD1048/6-7/-X
TRANSISTOR
Q 472
2SD1048/6-7/-X
TRANSISTOR
Q 501
2SB1322/RS/-T
TRANSISTOR
Q 581
2SB1322/RS/-T
TRANSISTOR
Q 871
UN2211-X
TRANSISTOR
Q 951
2SD601A/R/-X
TRANSISTOR
Q 961
2SB709A/R/-X
TRANSISTOR
Q 962
UN2213-X
TRANSISTOR
Q 963
2SB709A/R/-X
TRANSISTOR
Q 964
UN2211-X
TRANSISTOR
Q 971
UN2211-X
TRANSISTOR
Q 976
UN2111-X
TRANSISTOR
Q 977
UN2111-X
TRANSISTOR
R 1
NRSA02J-0R0X
MG RESISTOR
R 2
NRSA02J-223X
MG RESISTOR
R 4
NRSA02J-473X
MG RESISTOR
R 5
NRSA02J-332X
MG RESISTOR
R 6
NRS181J-8R2X
MG RESISTOR
R 7
NRSA02J-473X
MG RESISTOR
R 8
NRSA02J-472X
MG RESISTOR
R 9
NRSA02J-473X
MG RESISTOR
R 21
NRS181J-100X
MG RESISTOR
R 22
NRSA02J-622X
MG RESISTOR
R 23
NRSA02J-222X
MG RESISTOR
R 24
NRSA02J-222X
MG RESISTOR
R 25
NRSA02J-222X
MG RESISTOR
R 26
NRS181J-100X
MG RESISTOR
R 27
NRSA02J-393X
MG RESISTOR
R 28
NRSA02J-103X
MG RESISTOR
R 29
NRSA02J-101X
MG RESISTOR
R 30
NRSA02J-0R0X
MG RESISTOR
R 31
NRSA02J-222X
MG RESISTOR
R 32
NRSA02J-473X
MG RESISTOR
R 101
NRSA02J-682X
MG RESISTOR
R 102
NRSA02J-682X
MG RESISTOR
R 111
NRSA02J-243X
MG RESISTOR
R 112
NRSA02J-333X
MG RESISTOR
R 113
NRSA02J-123X
MG RESISTOR
R 115
NRSA02J-152X
MG RESISTOR
R 116
NRSA02J-223X
MG RESISTOR
R 117
NRSA02J-223X
MG RESISTOR
R 153
NRSA02J-474X
MG RESISTOR
R 154
NRSA02J-104X
MG RESISTOR
R 155
NRSA02J-103X
MG RESISTOR
R 156
NRSA02J-103X
MG RESISTOR
R 157
NRSA02J-103X
MG RESISTOR
R 158
NRSA02J-104X
MG RESISTOR
R 159
NRSA02J-562X
MG RESISTOR
R 160
NRSA02J-153X
MG RESISTOR
R 161
NRSA02J-0R0X
MG RESISTOR
R 162
NRSA02J-473X
MG RESISTOR
R 163
NRSA02J-104X
MG RESISTOR
R 164
NRSA02J-104X
MG RESISTOR
R 165
NRSA02J-105X
MG RESISTOR
R 166
NRSA02J-105X
MG RESISTOR
R 167
NRSA02J-105X
MG RESISTOR
R 168
NRSA02J-105X
MG RESISTOR
R 169
NRSA02J-473X
MG RESISTOR
R 170
NRSA02J-473X
MG RESISTOR
R 171
NRSA02J-473X
MG RESISTOR
R 172
NRSA02J-821X
MG RESISTOR
R 173
NRSA02J-101X
MG RESISTOR
R 174
NRSA02J-101X
MG RESISTOR
R 175
NRSA02J-472X
MG RESISTOR
R 201
NRSA02J-682X
MG RESISTOR
R 202
NRSA02J-682X
MG RESISTOR
R 211
NRSA02J-243X
MG RESISTOR
R 212
NRSA02J-333X
MG RESISTOR
R 213
NRSA02J-123X
MG RESISTOR
R 215
NRSA02J-152X
MG RESISTOR
R 216
NRSA02J-223X
MG RESISTOR
R 217
NRSA02J-223X
MG RESISTOR
R 301
NRSA02J-474X
MG RESISTOR
R 302
NRSA02J-224X
MG RESISTOR
R 303
NRSA02J-682X
MG RESISTOR
R 304
NRSA02J-105X
MG RESISTOR
R 305
NRSA02J-332X
MG RESISTOR
R 321
NRSA02J-222X
MG RESISTOR
R 322
NRSA02J-222X
MG RESISTOR
R 331
NRSA02J-103X
MG RESISTOR
R 332
NRSA02J-103X
MG RESISTOR
R 341
NRSA02J-333X
MG RESISTOR
R 342
NRSA02J-223X
MG RESISTOR
R 343
NRSA02J-333X
MG RESISTOR
R 344
NRSA02J-223X
MG RESISTOR
R 345
NRSA02J-154X
MG RESISTOR
R 346
NRSA02J-473X
MG RESISTOR
R 347
NRSA02J-473X
MG RESISTOR
R 351
NRSA02J-473X
MG RESISTOR
R 352
NRSA02J-473X
MG RESISTOR
R 356
NRSA02J-103X
MG RESISTOR
R 357
NRSA02J-472X
MG RESISTOR
R 358
NRSA02J-473X
MG RESISTOR
R 371
NRSA02J-821X
MG RESISTOR
R 372
NRSA02J-821X
MG RESISTOR
R 373
NRSA02J-222X
MG RESISTOR
R 374
NRSA02J-222X
MG RESISTOR
R 375
NRSA02J-101X
MG RESISTOR
R 376
NRSA02J-101X
MG RESISTOR
R 401
NRSA02J-474X
MG RESISTOR
R 402
NRSA02J-224X
MG RESISTOR
R 403
NRSA02J-682X
MG RESISTOR
R 405
NRSA02J-332X
MG RESISTOR
R 431
NRSA02J-103X
MG RESISTOR
R 432
NRSA02J-103X
MG RESISTOR
R 441
NRSA02J-333X
MG RESISTOR
R 442
NRSA02J-223X
MG RESISTOR
R 443
NRSA02J-333X
MG RESISTOR
R 444
NRSA02J-223X
MG RESISTOR
R 445
NRSA02J-154X
MG RESISTOR
R 446
NRSA02J-473X
MG RESISTOR
R 447
NRSA02J-473X
MG RESISTOR
R 451
NRSA02J-473X
MG RESISTOR
R 452
NRSA02J-473X
MG RESISTOR
R 471
NRSA02J-821X
MG RESISTOR
R 472
NRSA02J-821X
MG RESISTOR
R 473
NRSA02J-222X
MG RESISTOR
R 474
NRSA02J-222X
MG RESISTOR
Item
Parts number
Parts name
Area
A
Remarks
