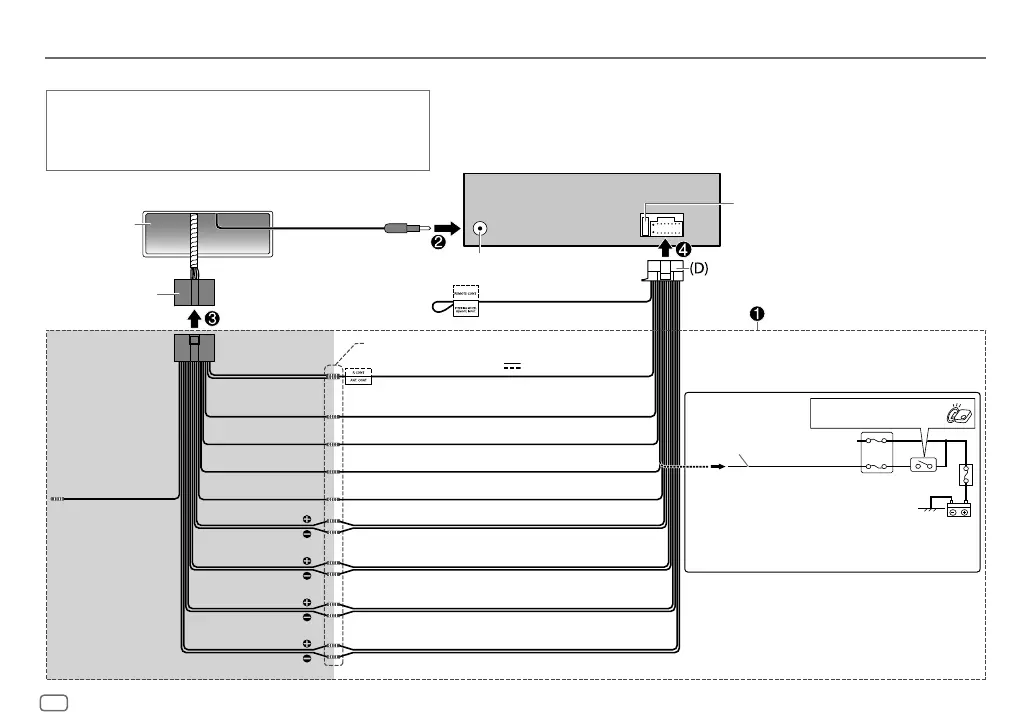

INSTALLATION/CONNECTION
Car fuse block
Ignition switch
Light blue/yellow
Blue/white:
To amplifier
Blue:
To power antenna
Make this connection if your vehicle factory wiring harness
does not have “12 V ignition switch” wire.
Separate red wire
Wiring connection
To the steering wheel remote
control adapter
Fuse (10 A)
Antenna terminal
Factory wiring
harness (vehicle)
Black: Ground
Yellow: Battery 12 V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12 V
Orange/white: Illumination
Blue/white: Remote (12 V
350 mA)
Brown (not used)
Green: Rear speaker (left)*1
Green/black*1
*1 You can also connect a subwoofer speaker directly using
this lead without an external subwoofer amplifier. For
setting, see page 12.
Custom wiring harness
(separately purchased)
Vehicle
dashboard
Recommended connection
IMPORTANT
We recommend installing the unit with a commercially available custom wiring
harness specific for your car and leave this job to professionals for your safety.
Consult your car audio dealer.
