INSTALLATION/CONNECTION
Connecting external components

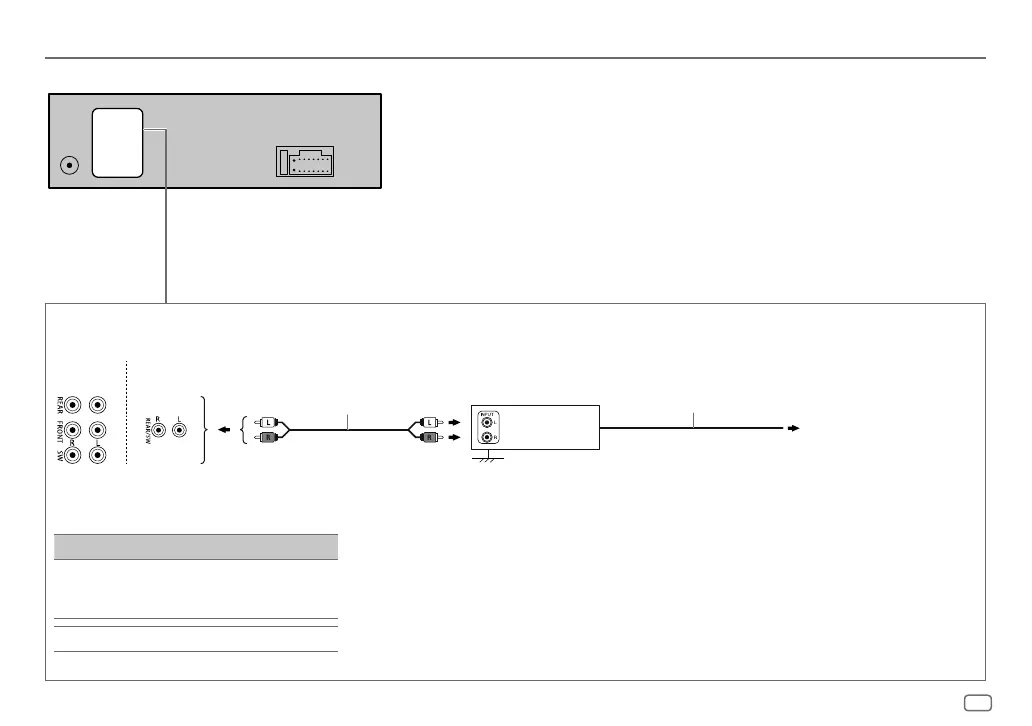

Connecting external amplifiers via output terminals
KD-T408 KD-T406/
KD-T401
*2 Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the unit.
Output terminals
REAR :
FRONT :
SW :
Rear output
Front output
Subwoofer output
REAR/SW : Rear/subwoofer output
JVC Amplifier*2
Signal cord (not supplied)
To remote lead (blue/white) of
the wiring harness. (Page 20)
Remote wire (not supplied)
Output terminals
