JVC KD-T922BT User Manual

40
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

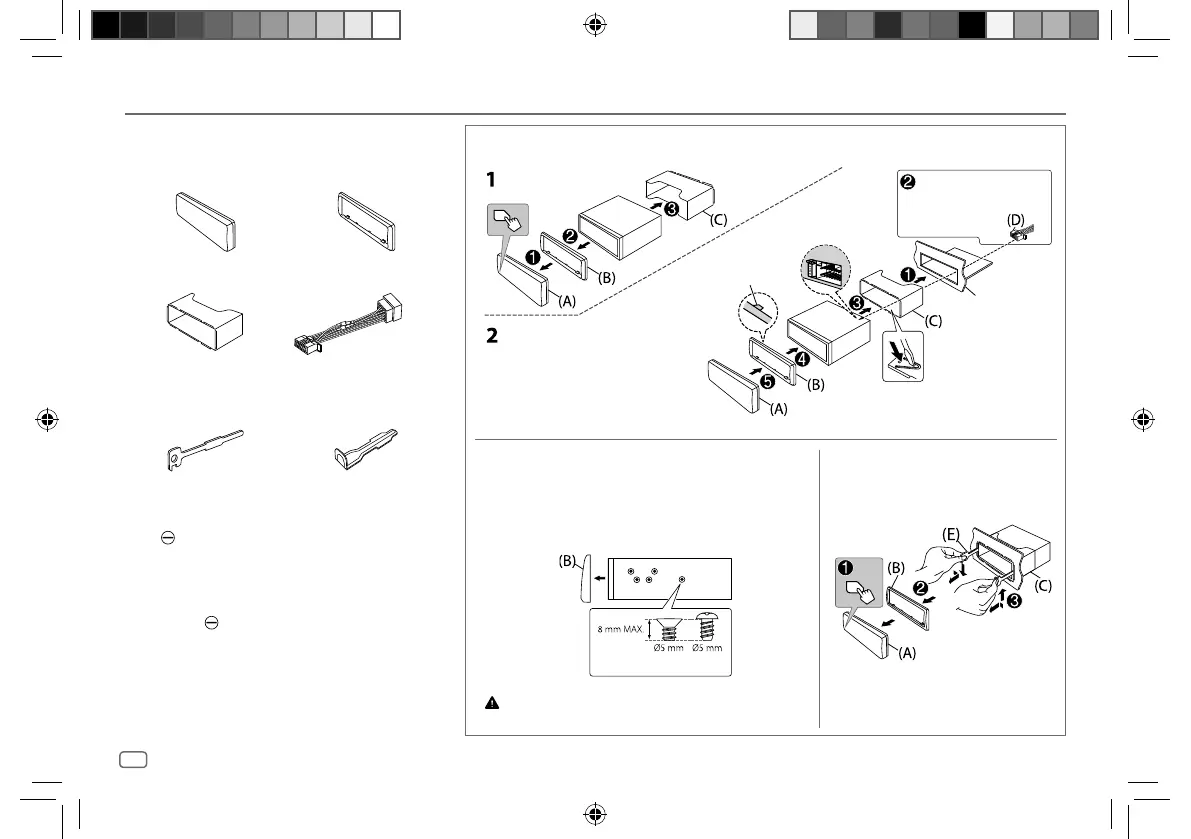

Installing the unit (in-dash mounting) (for KD-T922BT/KD-DB622BT)
Part list for installation
(A) Faceplate (×1) (B) Trim plate (×1)
(C) Mounting sleeve (×1) (D) Wiring harness (×1)
(E) Extraction key (×2)
(for KD-T922BT/
KD-DB622BT)
(
for KD-X38MDBT)
Basic procedure
1 Remove the key from the ignition switch, then disconnect
the
terminal of the car battery.
2 Connect the wires properly.
See “Wiring connection” on page 42, 43.
3 Install the unit to your car.
See “Installing the unit (in-dash mounting)” on page 40, 41.
4 Connect the terminal of the car battery.
5 Press B SRC to turn on the power.
6 Detach the faceplate and reset the unit within 5 seconds.
(Page4, 5, 6)
Removing the unit
(for KD-T922BT/KD-DB622BT)
Installing the unit (without mounting sleeve)
(for KD-T922BT/KD-DB622BT)
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might damage
the unit.
Installation/Connection
Self-tapping screw type
Do the required wiring.
(Page 42, 43)
Bend the appropriate tabs to hold the
sleeve firmly in place.
Hook on the top side
Orientate the trim
plate as illustrated
before fitting.
Dashboard of
your car
JS_JVC_KD_T922BT_E_EN_2.indd 40JS_JVC_KD_T922BT_E_EN_2.indd 40 4/2/2020 2:04:59 PM4/2/2020 2:04:59 PM
