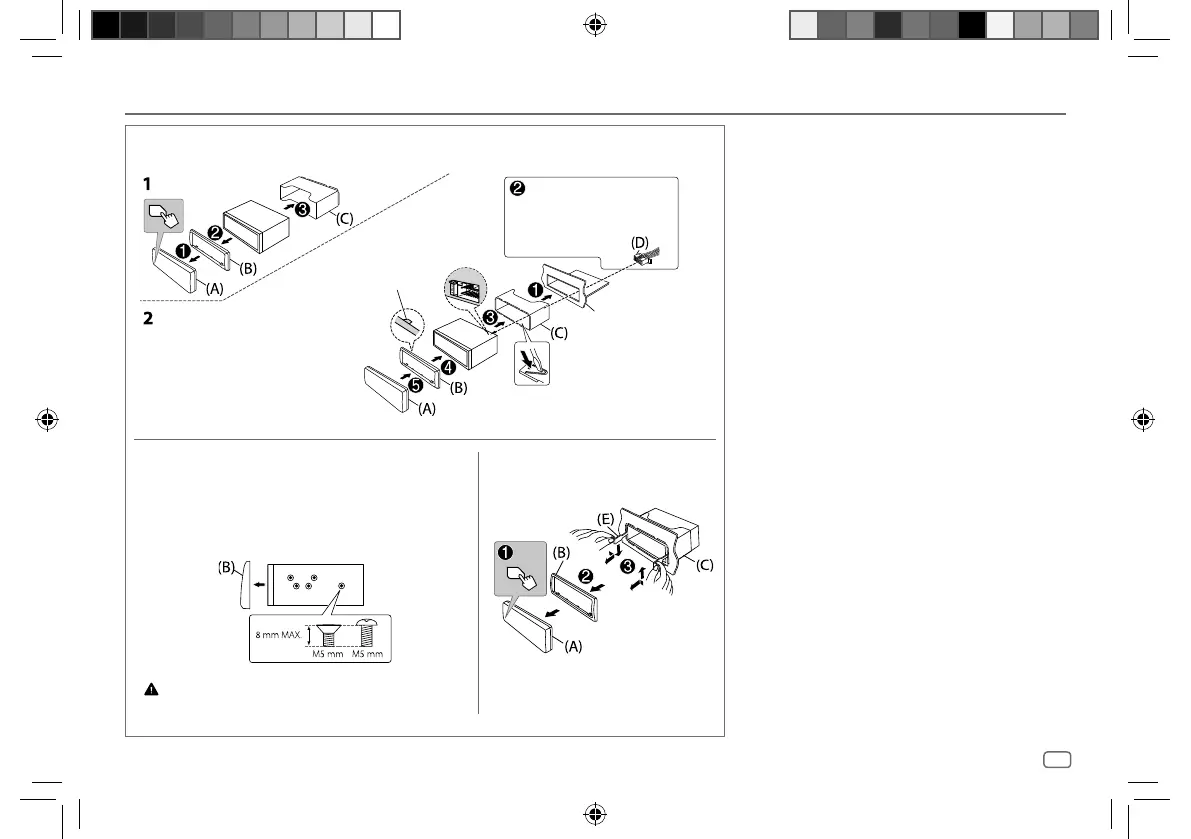

Installation/Connection
Installing the unit (in-dash mounting)
(for KD-X38MDBT)
Removing the unit
(for KD-X38MDBT)
Installing the unit (without mounting sleeve)
(for KD-X38MDBT)
1
Remove the mounting sleeve and trim plate from the unit.
2
Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might damage
the unit.
Do the required wiring.
(Page 43)
Bend the appropriate tabs to hold the
sleeve firmly in place.
Hook on the top side
Orientate the trim
plate as illustrated
before fitting.
Dashboard of
your car
