ENGLISH
15
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

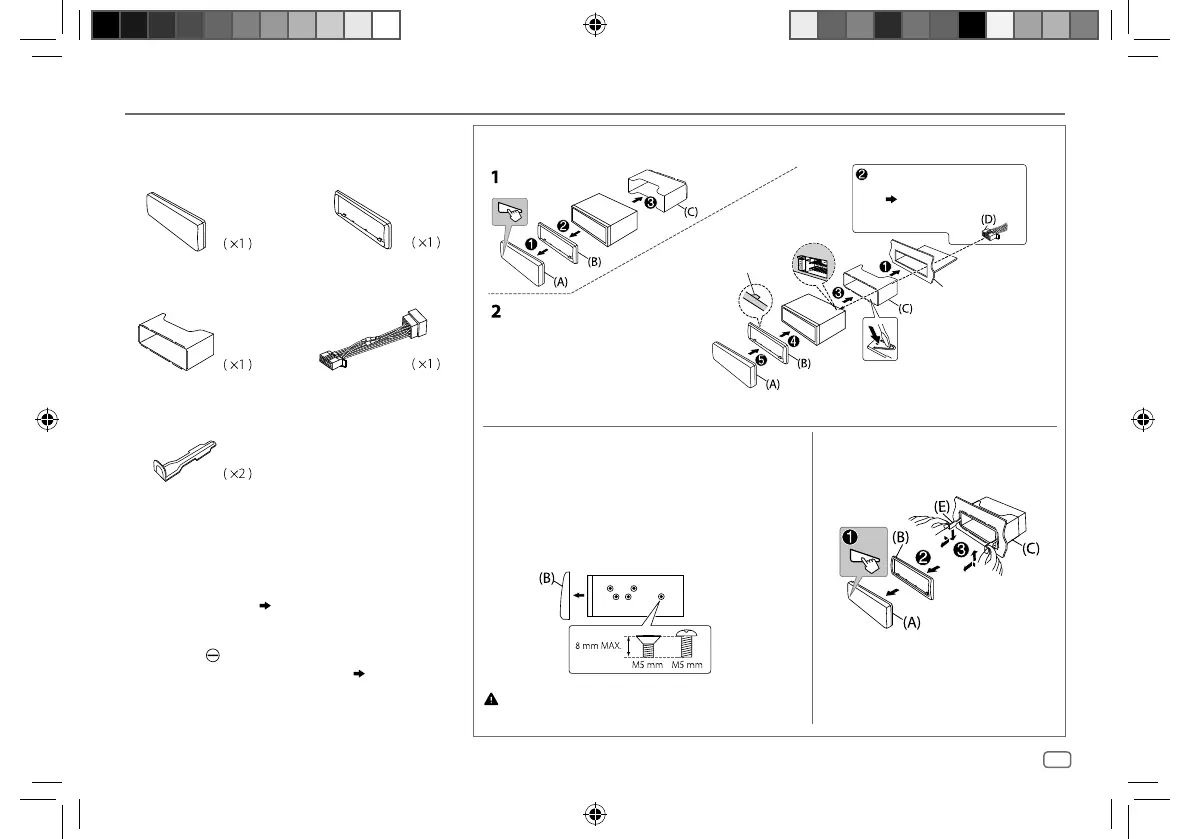

INSTALLATION/CONNECTION
How to remove the unitWhen installing without the mounting
sleeve
1
Remove the mounting sleeve and trim plate from the
unit.
2
Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with
screws (commercially available).
Use only the specified screws. Using wrong screws might
damage the unit.
Installing the unit (in-dash mounting)
Do the required wiring.
( 16)
Bend the appropriate tabs to
hold the sleeve firmly in place.
Hook on the top side
Orientate the trim plate as
illustrated before fitting.
Dashboard of your car
Part list for installation
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
(A)
Faceplate
Basic procedure
1
Remove the key from the ignition switch, then disconnect
the
[
terminal of the car battery.
2
Connect the wires properly.
See Wiring connection.
( 16)
3
Install the unit to your car.
See Installing the unit (in-dash mounting).
4
Connect the terminal of the car battery.
5
Detach the faceplate and reset the unit.
( 3)
JS_JVC_KD_X155_Q_ENRef_1.indd 15JS_JVC_KD_X155_Q_ENRef_1.indd 15 10/7/2017 10:39:58 AM10/7/2017 10:39:58 AM
