2
KS-AX4302
2-speaker system—Bridge Mode*
2
4-speaker system
2-speaker system plus subwoofer—Bridge Mode*
2
2-speaker system
2-speaker system (2 amplifi ers)—Bridge Mode*
2
Subwoofer system—Bridge Mode*
2

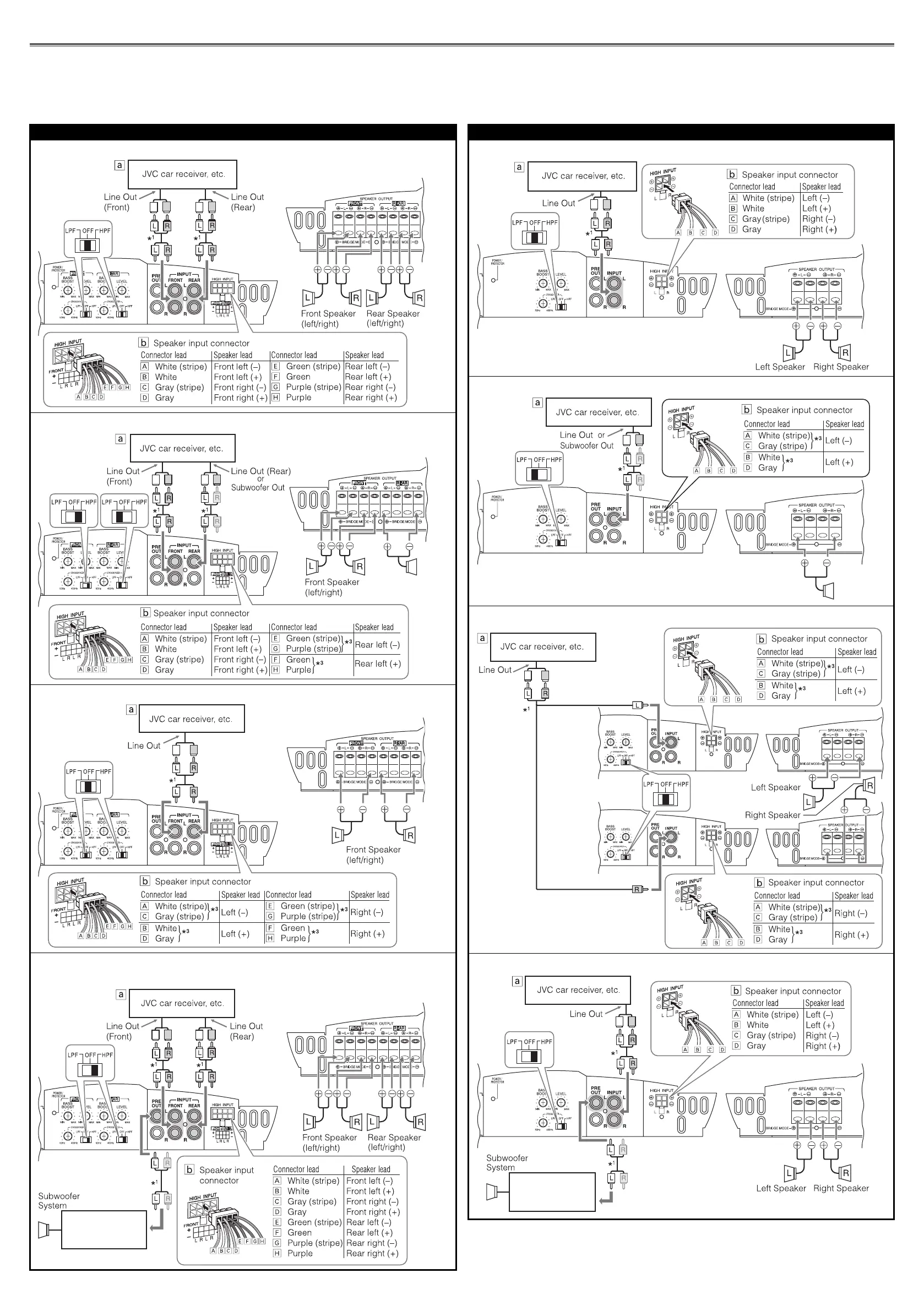

Connection varies depending on the number of the speakers used in your car. Select the
appropriate connection referring to the following diagrams.
Before connecting: Securely connect all the parts. If the connections are loose, due to contact
resistance etc., heat will break out and may cause an accident. Secure and cover the cords with
insulating tape and run them under the car mats.
KS-AX4504
*
1
Not provided for this unit.
*
2
Bridge Mode: Be sure to connect the line output from the receiver to the left (L) jack on this
unit.
*
3
Be sure to connect the both leads to the target speaker lead.
å When your receiver is equipped with Line Output, connect the Line Output (through the
receiver) to the INPUT jacks on this unit.
∫ When your receiver is NOT equipped with Line Output, connect the provided speaker
input connector (through the receiver) to the HIGH INPUT terminal on this unit.
4-speaker system plus subwoofer (PRE OUT)
Down mixed signals are emitted through PRE OUT jacks.
2-speaker system plus subwoofer (PRE OUT)
SPEAKER CONNECTIONS
JVC power amplifi er:
KS-AX4302, etc.
JVC power amplifi er:
KS-AX4302, etc.
Subwoofer
Subwoofer
EN_KS-AX4504_4302[JEU].indd 2EN_KS-AX4504_4302[JEU].indd 2 07.1.25 11:23:10 AM07.1.25 11:23:10 AM
