Preparation
Installing / Removing the Base Stand
Remove the stand assembly before mounting the TV onto the wall.
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that
no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert
pressure on the front of the TV at any time because the screen could crack.

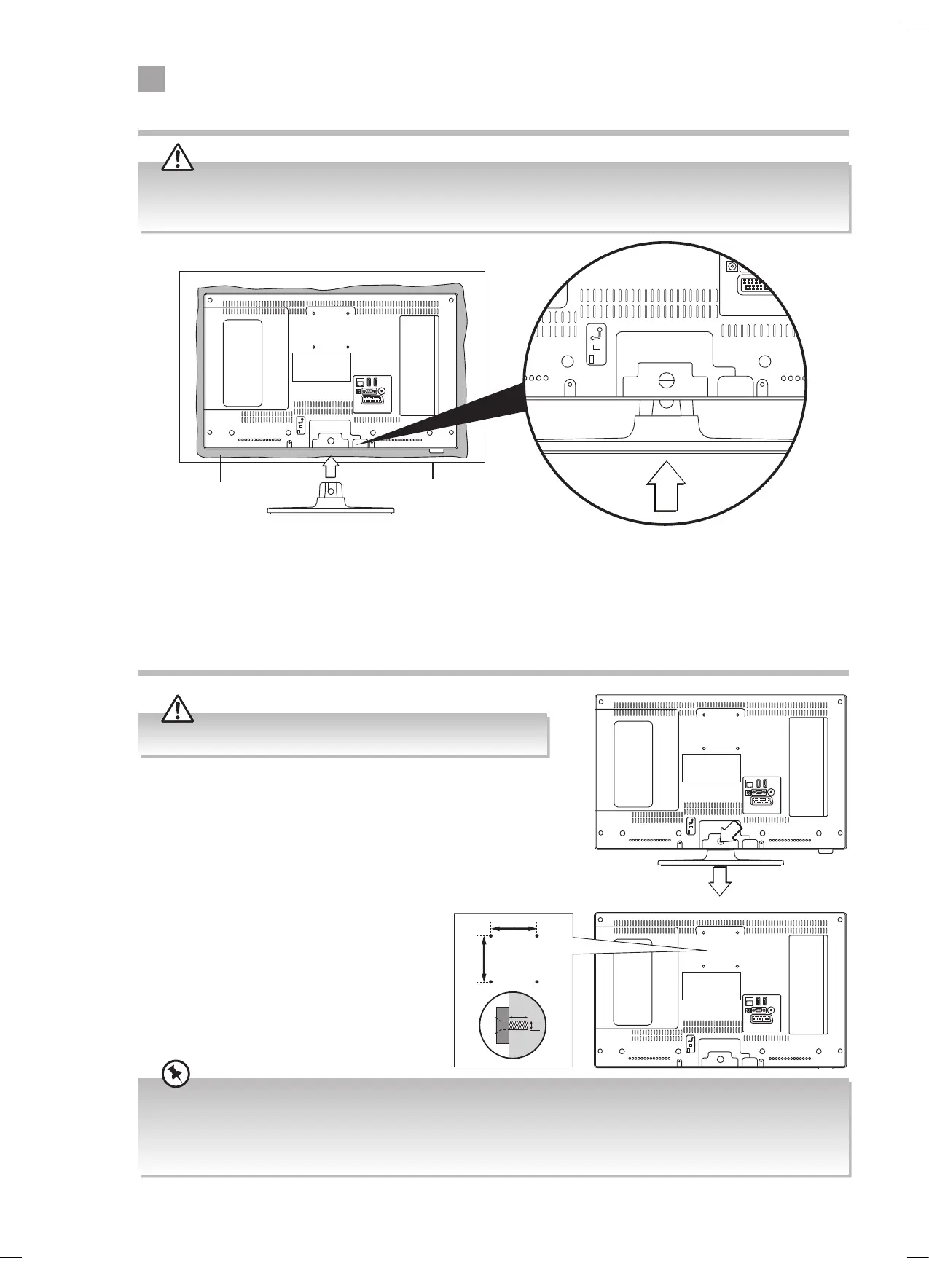

1. Press the button in the middle of the stand neck and gently pull
the stand away from the TV.
1. Ensure the TV is switched off and not connected to the mains power supply.
2. Lay the TV down on a flat surface ideally on the edge of a table so the base of the TV slightly overhangs the edge of the table,
with the back side facing up. Please make sure a soft cushioned material (such as a dry bath towel or thick piece of foam) is
placed beneath the screen.
3. To install, slide the TV stand into the slot on the bottom of the TV. Make sure it clicks into position.
Mounting the TV to a Wall
2. This TV is designed to be wall-mounted with a
standard 75 mm x 75 mm mounting kit (sold
separately) designed for flat-panel TVs. Mount
this TV according to the instructions included
in the mounting kit. Use a mounting screw with
the maximum length of 14mm. Due to space
restrictions, we recommend that you make all
connections before mounting on to the wall.
• If you are wall mounting your TV you may wish to buy a 90° HDMI adapter. This will help with your cable management.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our Call Centre on (UK) 0344 561 1234 or (Ireland) 1 890 818 575.
Our Customer Contact Centre is open 24/7.
SCART
SPDIF
VGA
ANT.
HDMI 1
HDMI 2
SCART
SPDIF
VGA
ANT.
HDMI 1
HDMI 2
SCART
SPDIF
Coax.OUT
VGA
ANT.
HDMI 1
(ARC)
HDMI 2
LAN
Cushioned material
Table
SCART
SPDIF
VGA
ANT.
HDMI 1
HDMI 2
SCART
SPDIF
Coax.OUT
VGA
ANT.
HDMI 1
(ARC)
HDMI 2
LAN
SCART
SPDIF
VGA
ANT.
HDMI 1
HDMI 2
75mm
Four mounting
holes
(size M4 screw)
75mm
SCART
SPDIF
Coax.OUT
VGA
ANT.
HDMI 1
(ARC)
HDMI 2
LAN
5-8mm
M4
