1-6 (No.YA708<Rev.002>)
1.2 INSTALLATION

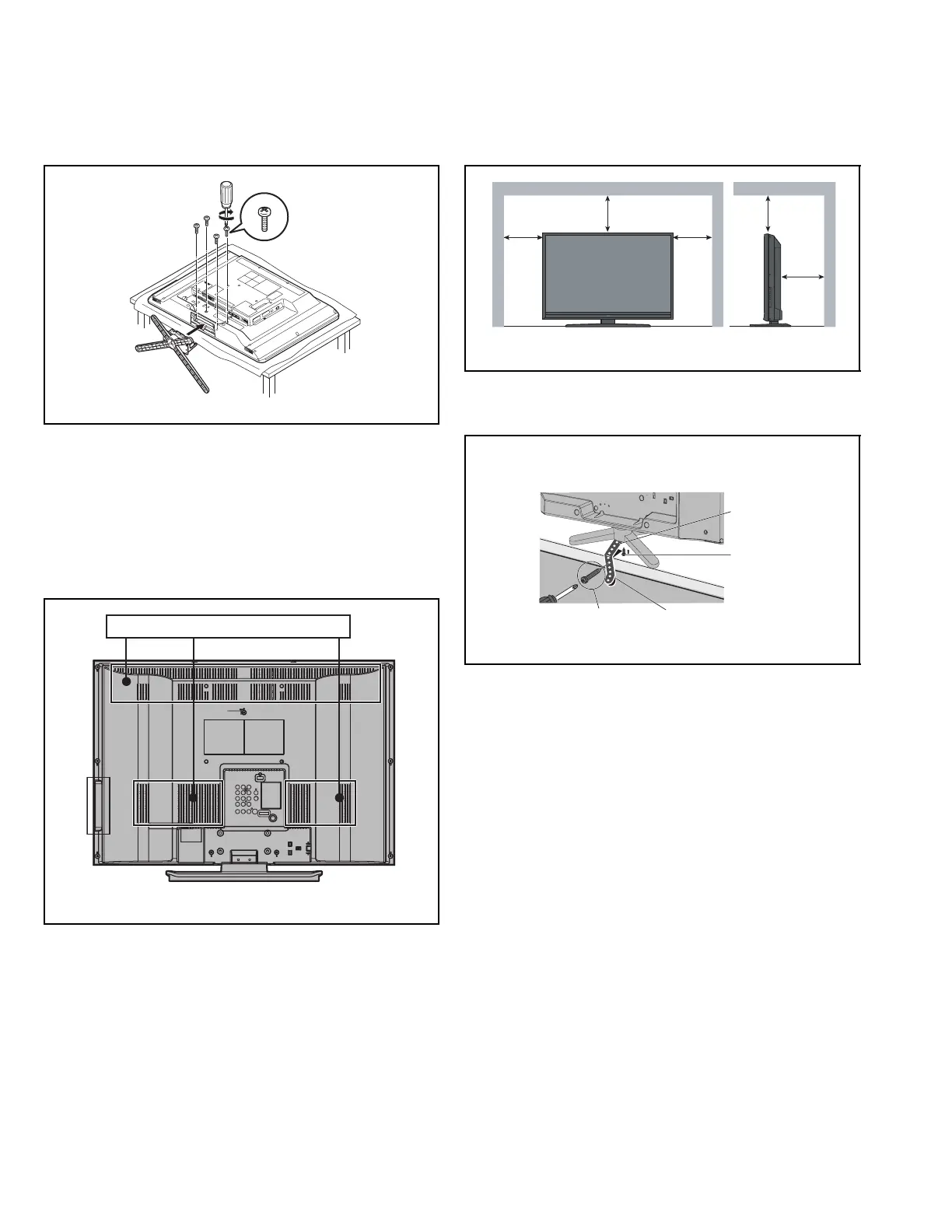

1.2.1 ATTACH THE STAND TO THE TV
When installing the unit on the floor, it is required to attach the
supplied stand.
To attach the stand to the TV, follow the procedure below.
1.2.2 HEAT DISSIPATION
If the heat dissipation vent behind this unit is blocked, cooling
efficiency may deteriorate and temperature inside the unit will
rise. The temperature sensor that protects the unit will be
activated when internal temperature exceeds the pre-determined
level and power will be turned off automatically.Therefore,
please make sure pay attention not to block the heat dissipation
vent as well as the ventilation outlet behind the unit and ensure
that there is room for ventilation around it.
1.2.3 INSTALLATION REQUIREMENTS
Ensure that the minimal distance is maintained, as specified
below, between the unit with and the surrounding walls, as well
as the floor etc.Install the unit on stable flooring or stands.
To ensure safety in an emergency such as an earthquake, and
to prevent accidents, ensure that measures are taken to prevent
the TV dropping or falling over.
*Diagram differs from actual appearance.
VENTILATION HOLE
*Diagram differs from actual appearance.
*Diagram differs from actual appearance.
150 mm
200 mm
150 mm
200 mm
50 mm
POWER
*Diagram differs from actual appearance.
Hole for belt
(under the stand)
Belt (provided)Screw (not provided)
Screw for attach
the belt to the
stand (provided)
To prevent the TV from falling, thread the belt through the
hole on the back of the stand and secure it to the TV rack.
To Next Page
