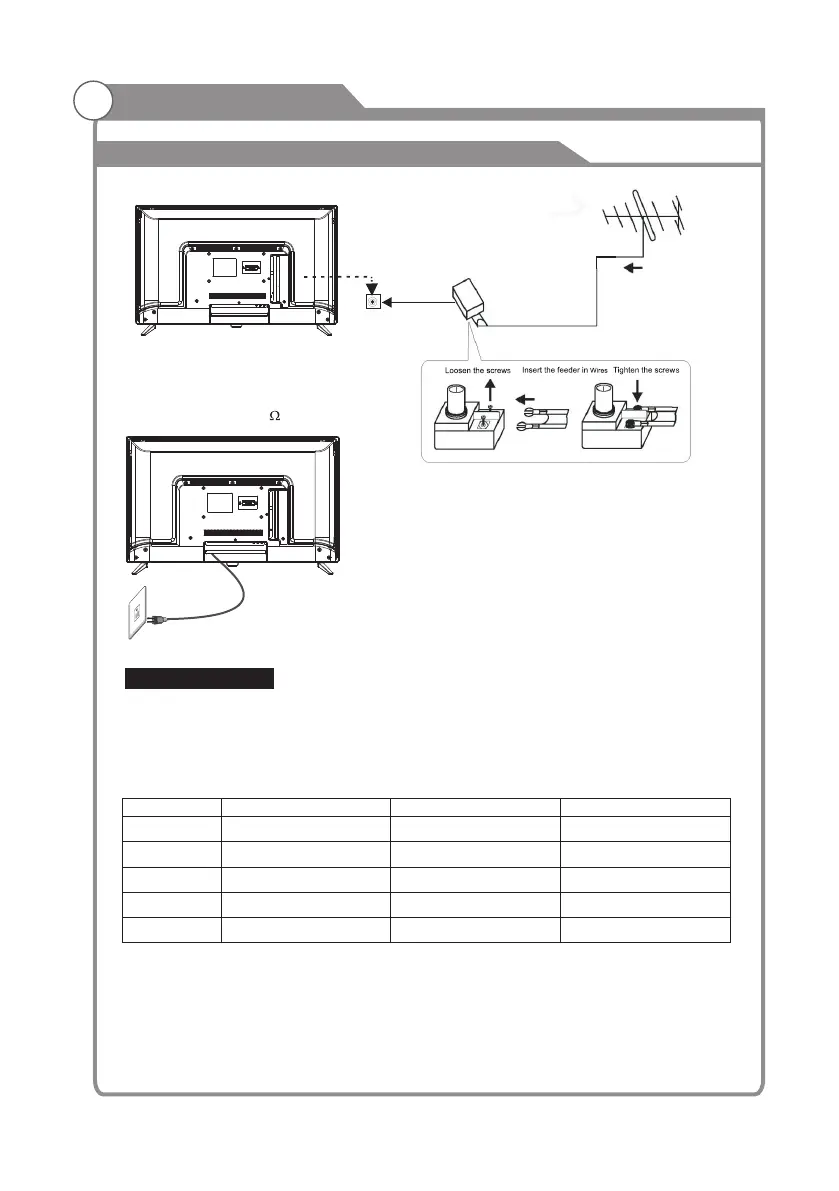

INSTALLATION
Antenna
PRESET MODE (HDMI)
1
2
3
800*600
1024*768
60
60
37.88
48.36
RESOLUTION
V.Freq.(Hz) H.Freq.(KHz)
1366*768
60
47.7
4
1280*768
60
47.3
5
1920*1080
60
67.5
CABLE
When shipped from the factory, the Signal Type option is for the RF connector (F-type) set to
the"AIR" (Over-the air antenna) mode.
Power connection
Please note: After unpacking, allow the TV to reach ambient room temperature before
connection the TV to the mains power socket.
Connect the power cord plug to the mains power socket.
Note:
Aerial connections:F connector.
Input impendance:75 unbalanced.
-6-
PLUG
75Ω CABLE
ANTENNA OR CABLE TV
ADAPTER (NOT SUPPLIED)
TWIN-LEADER FEEDER (300Ω)
OUTDOOR OR INDOOR ANTENNA
(NOT SUPPLIED)
To Next Page
