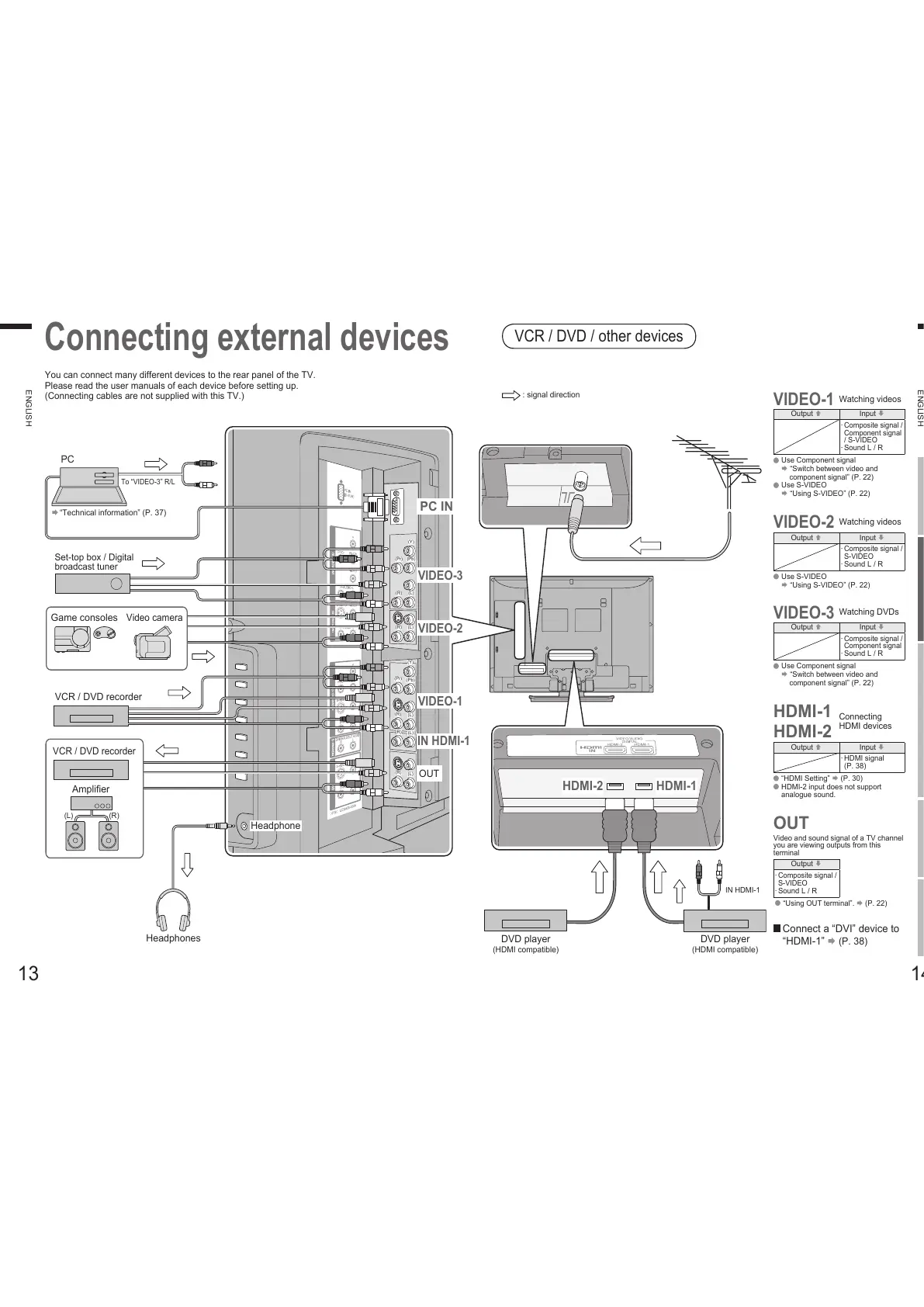

Connecting external devices
You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setting up.
(Connecting cables are not supplied with this TV.)
DVD player
(HDMI compatible)
Amplifier
(L) (R)
OUT
Set-top box / Digital
broadcast tuner
Game consoles
 “Technical information” (P. 37)
VCR / DVD recorder
PC IN
PC
Video camera
VIDEO-1
VIDEO-2
VIDEO-3
: signal direction
 Connect a “DVI” device to
“HDMI-1”  (P. 38)
To “VIDEO-3” R/L
Headphones
(R)
Headphone
VIDEO-1
Watching videos
Output
 Input 
· Composite signal /
Component signal
/ S-VIDEO
· Sound L / R
 Use Component signal
 “Switch between video and
component signal” (P. 22)
 Use S-VIDEO
 “Using S-VIDEO” (P. 22)
VIDEO-2
Watching videos
Output
 Input 
· Composite signal /
S-VIDEO
· Sound L / R
 Use S-VIDEO
 “Using S-VIDEO” (P. 22)
VIDEO-3
Watching DVDs
Output
 Input 
· Composite signal /
Component signal
· Sound L / R
 Use Component signal
 “Switch between video and
component signal” (P. 22)
HDMI-1
HDMI-2
Connecting
HDMI devices
Output
 Input 
· HDMI signal
(P. 38)
 “HDMI Setting”  (P. 30)
 HDMI-2 input does not support
analogue sound.
OUT
Video and sound signal of a TV channel
you are viewing outputs from this
terminal
Output

· Composite signal /
S-VIDEO
· Sound L / R
 “Using OUT terminal”.  (P. 22)
VCR / DVD / other devices
(L)
(Y)
(Pb)
(Pr)
(R)
(R)
(L)
(L)
HDMI-2 HDMI-1
DVD player
(HDMI compatible)
VCR / DVD recorder
IN HDMI-1
IN HDMI-1
(Y)
(Pb)
(Pr)
(R) (L)
(R)
(L)
