1-12 (No.MB003)

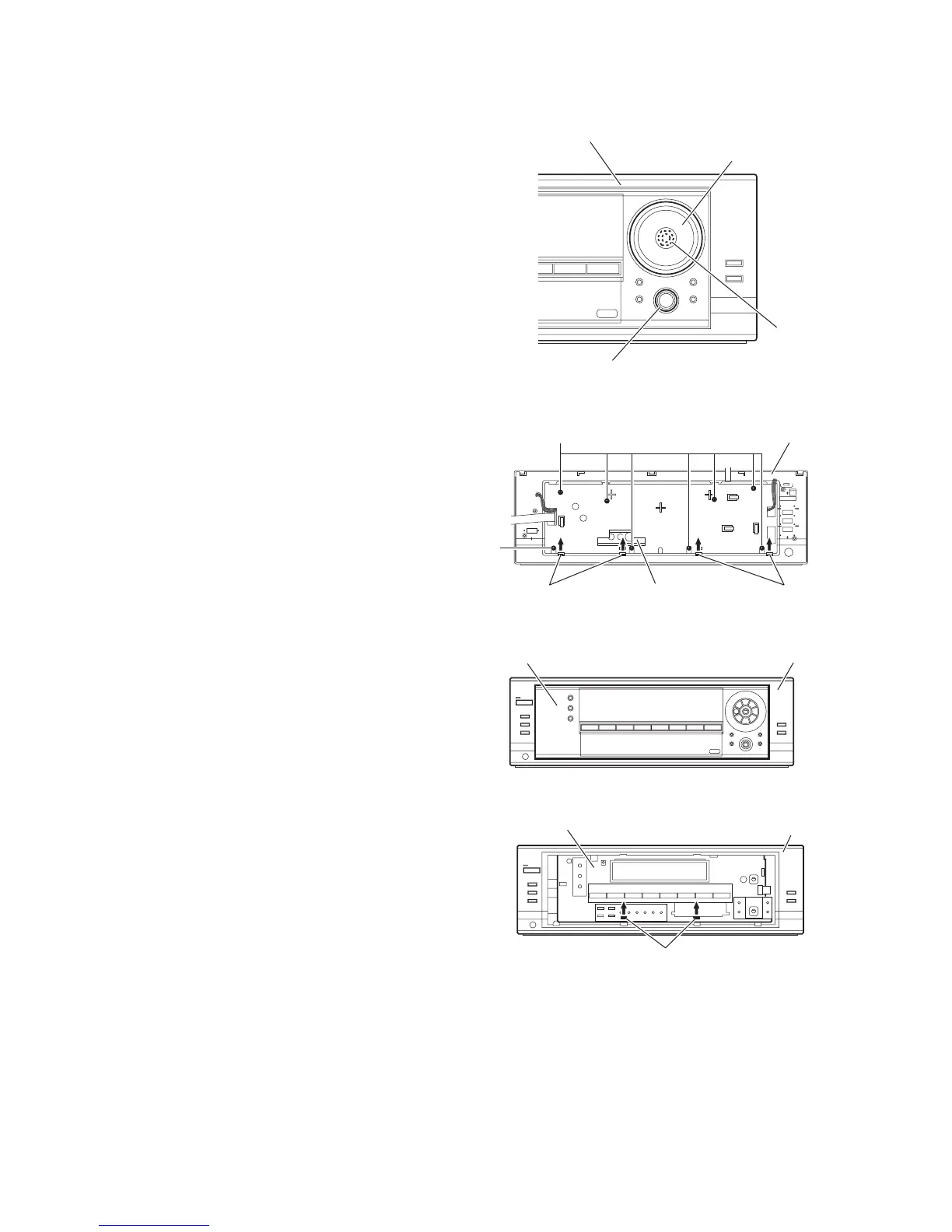

3.17 Removing the front key & system control board

(See Figs.17 to 20)

• Prior to performing the following procedures, remove the top

cover, front panel assembly, switch board and power switch

board.

(1) Pull out the volume and jog knobs from the front side of the

front panel assembly, remove the nut attaching the front

key & system control board. (See Fig.17.)

(2) From the back side of the front panel assembly, remove the

eight screws Y attaching the sub panel assembly. (See

Fig.18.)

(3) Remove the sub panel assembly while releasing the claws

g in the direction of the arrow. (See Figs.18 and 19.)

(4) Release the claws h attaching the front key & system con-

trol board in the direction of the arrow and take out the front

key & system control board. (See Fig.20.)

Fig.17

Fig.18

Fig.19

Fig.20

Volume knob

Nut

Front panel assembly

Jog knob

Claws g Claws g

Front panel assembly

Sub panel assembly

Front panel assembly

Front key & System control board

Front panel assembly

Claws h
