5
33
33

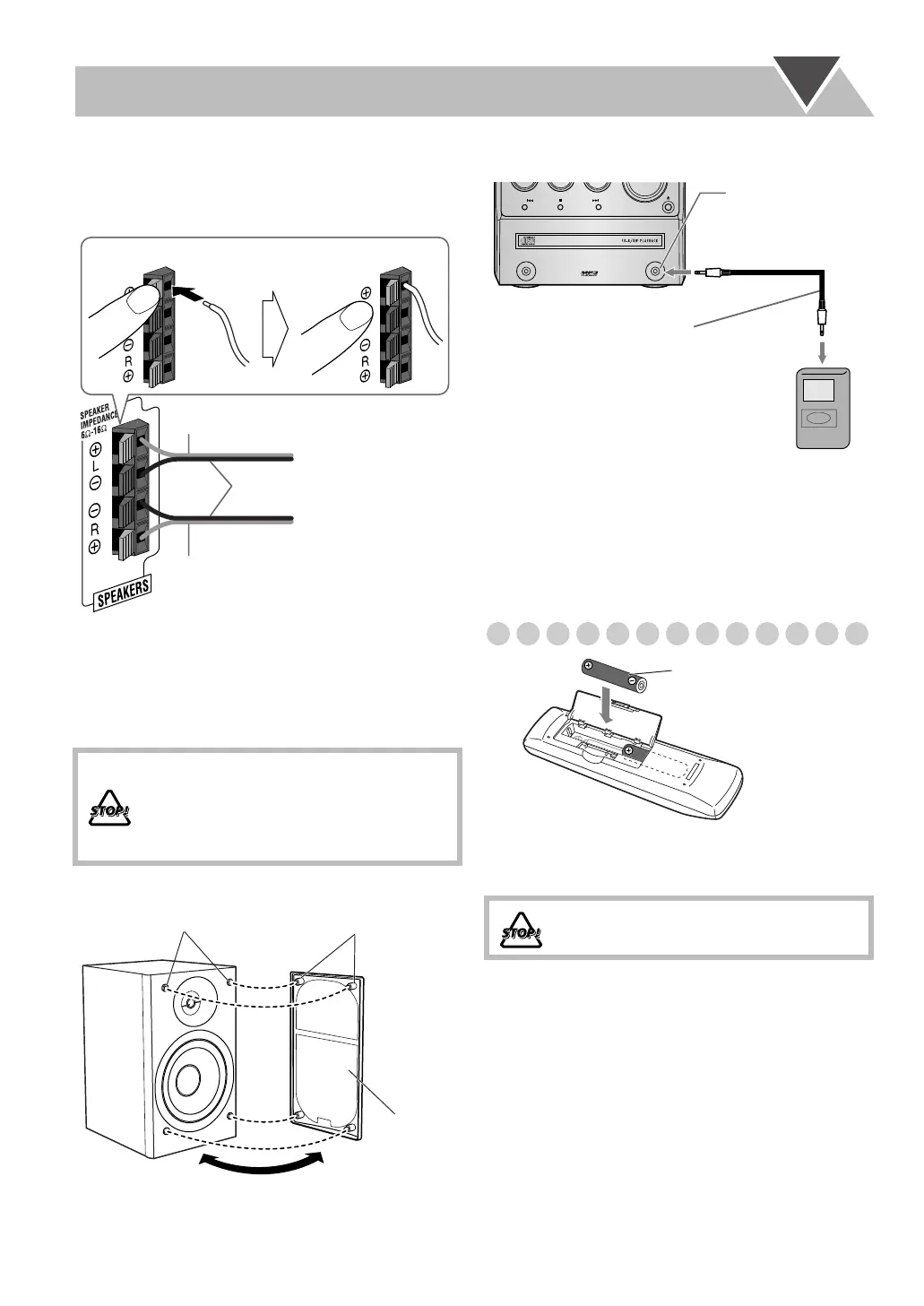

Speakers
To connect the speaker cords
Make sure that both speakers are connected correctly and
firmly.
• When connecting the speaker cords, match the polarity of
the speaker terminals: red cord to (+) and black cord to (–).
• If the speaker cords are covered with vinyl, remove the
vinyl to expose the tip of the speaker cord by twisting the
vinyl.
To remove the speaker grilles:
To connect a portable audio device
• By using QP Link (Quick Portable Link), you can easily
start playing back a portable audio device on this unit. See
page 9 for details.
• If an external device is not equipped with a stereo mini plug
audio output, use a plug adapter to convert the stereo mini
plug to the corresponding plug of the audio output.
Preparing the remote control
• Dispose of batteries in the proper manner, according to
federal, state, and local regulations.
When using the remote control
Point the top of the remote control toward the remote sensor
as directly as possible. If you operate it from a diagonal
position, the operating range (approx. 5 m) may be shorter.
• DO NOT connect more than one speaker to
each terminal.
• DO NOT allow the conductor of the speaker
cords to be in touch with the metallic parts of
the System.
1 Hold 2 Insert 3 Release
Red
Red
Black
From left speaker
From right speaker
Holes Projections
Speaker
grille
DO NOT recharge, short, disassemble, heat
the battery or dispose of it in a fire.
AUX jack
Stereo mini plug cord
(not supplied)
Portable audio device
R03(UM-4)/AAA(24F)
UX_GB9.book Page 5 Thursday, May 18, 2006 4:18 PM
