MX-G500
1-11
Prior to performing the following procedure, remove
the CD tray.
Remove the screw A attaching the sensor board and
release the two tabs b attaching the sensor board on
the under side of the CD tray.
Disconnect the harness from connector CW1 on the
sensor board and release the harness from the two
hooks c. Remove the sensor board.
Remove the screw B attaching the turn table. Detach
the turn table from the tray.
Pull outward the tab marked d attaching the turn
table motor assembly on the upper side of the tray
and detach the turn table motor assembly from the
tray.
1.
2.
3.
4.

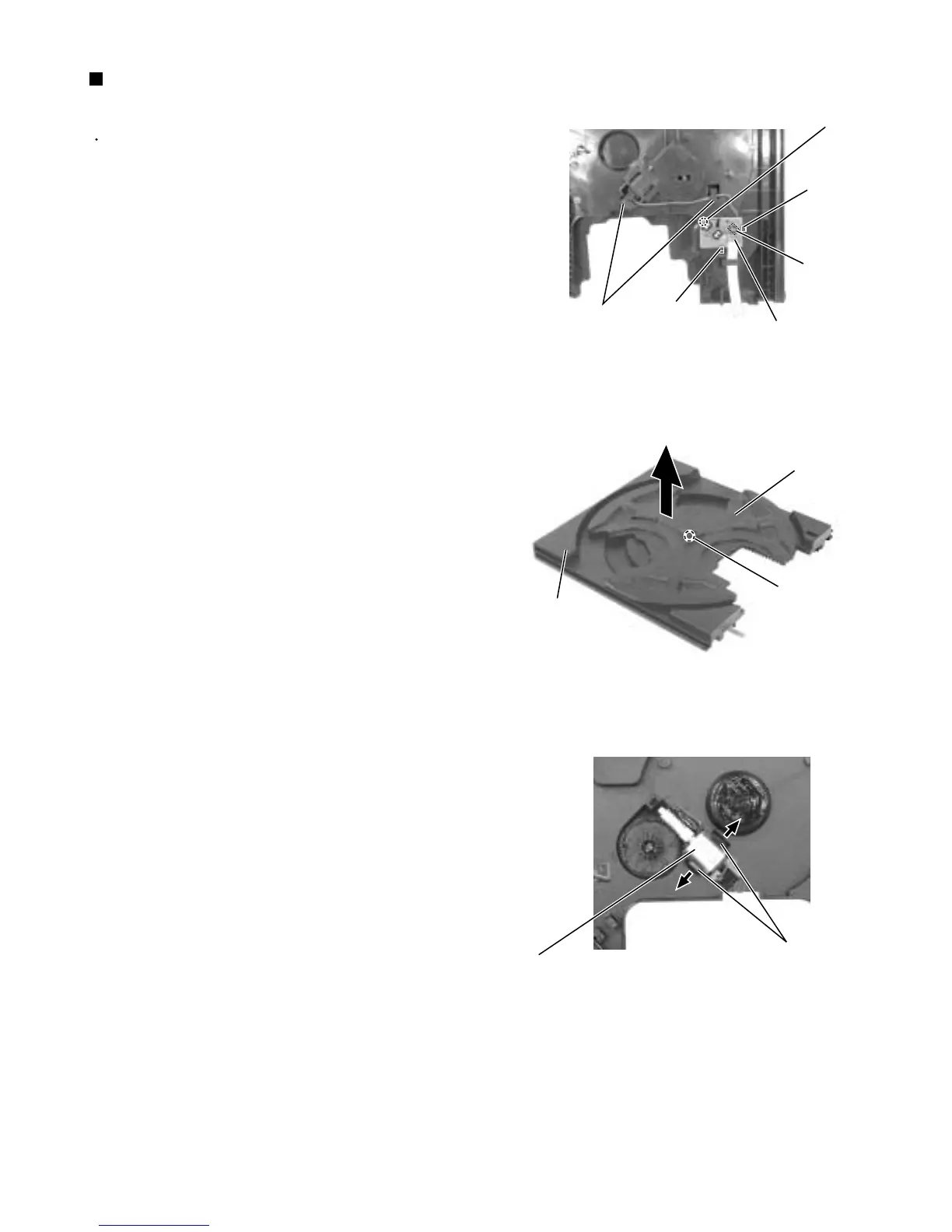

Removing the sensor board / the turn
table motor assembly (See Fig.6 to 8)
Fig.7
Fig.6
Fig.8
b
b
c
Sensor board
CW1
Turn table
Tray
Turn table motor assembly
d
A
B
To Next Page
