Removing the motor.

1. Remove the two screws D fixing the motor.

Be careful to grease's splash when the

drive belt comes off.(Fig.5, Fig.6)

2. Unsolder the motor terminal.(Fig.5)

Removing the mechanism board.

Unsolder the four parts a on the solenoid

coil terminal.(Fig.5)

2. Remove the two screws E fixing the board.(Fig.5)

3. Unhook the three parts b from the board.(Fig.5)

4. Remove the mechanism board.(Fig.5)

Removing the flywheel.

Remove the cut-washers at c and d from the

capstan shaft, then remove the flywheel.

When reassembling the flywheel,

be sure to use new washers as they

cannot be reused.(Fig.8, Fig.9)

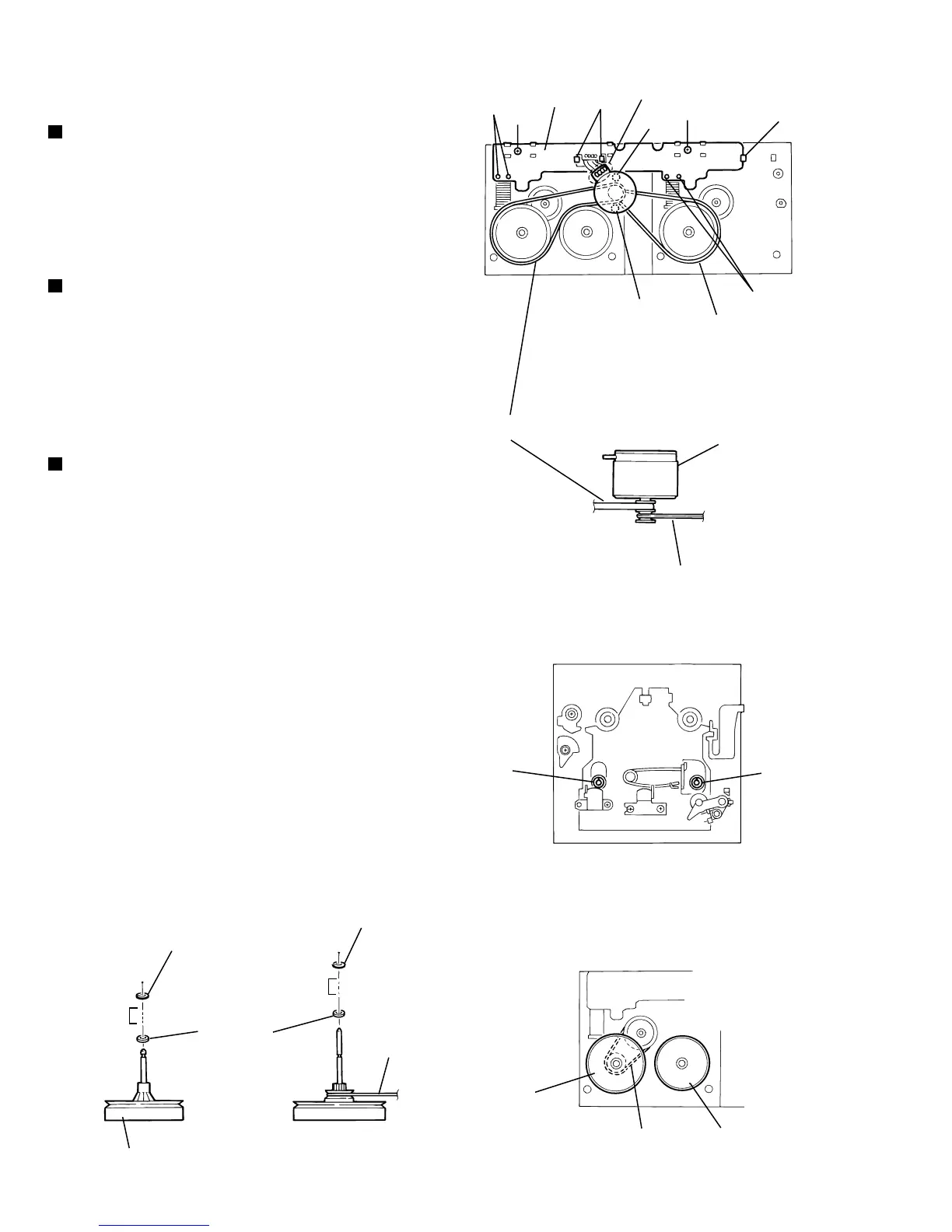

Fig.5

Drive belt

Drive belt (Flat)

Motor

terminal

Motor

FR belt

Washer

Capstan

washer

Flywheel

Capstan

washer

Mecha.

board

Fig.6

Fig.7

Fig.8Fig.9

Sleeve
