CONNECTION
• DO NOT use other amplifier to operate this speaker system
except for CA-MXG500R.
• Turn off power to the whole system before connecting the
speakers to the amplifier.
• The maximum power handling capacity of the SP-MXG500
main speaker is 30 W Subwoofer is 60 W. Excessive input
will result in abnormal noise and possible damage. In cases
where the signals described below are applied to the speak-
ers, even if the signals are below the maximum allowable
input, they may cause an overload and burn the wiring of the
speakers. Be sure to lower the amplifier volume beforehand.
1) Noise during FM tuning.
2) High level signals containing high frequency components
produced by a tape deck in the fast forward mode.
3) Click noise produced when turning power of other compo-
nents on and off.
4) Click noise produced when connecting or disconnecting
cords with the power on.
5) Click noise produced when the cartridge is replaced with
the power on.
6) Click noise produced when operating amplifier switches.
7) Continuous high frequency oscillation or high pitch elec-
tronically produced musical instrument sound.
8) Howling when using a microphones.
SPECIFICATIONS
Type : 3-way 3-speaker Bass-Reflex
Type
Speakers:
Subwoofer : 13.5 cm cone × 1
Main woofer : 13.5 cm cone × 1
Tweeter : 5.0 cm cone × 1
Power Handling Capacity:
Subwoofer : 60 W
Main Speaker : 30 W
Impedance:
Subwoofer : 6 Ω
Main Speaker : 4 Ω
Frequency Range:
Subwoofer : 32 Hz — 87 Hz
Main Speaker : 87 Hz — 20 000 Hz
Sound Pressure Level:
Subwoofer : 84 dB/W·m
Main Speaker : 82 dB/W·m
Dimensions (W × H × D) :282 mm × 318 mm × 322 mm
Mass : 5.0 kg each
Design and specifications subject to change without notice.

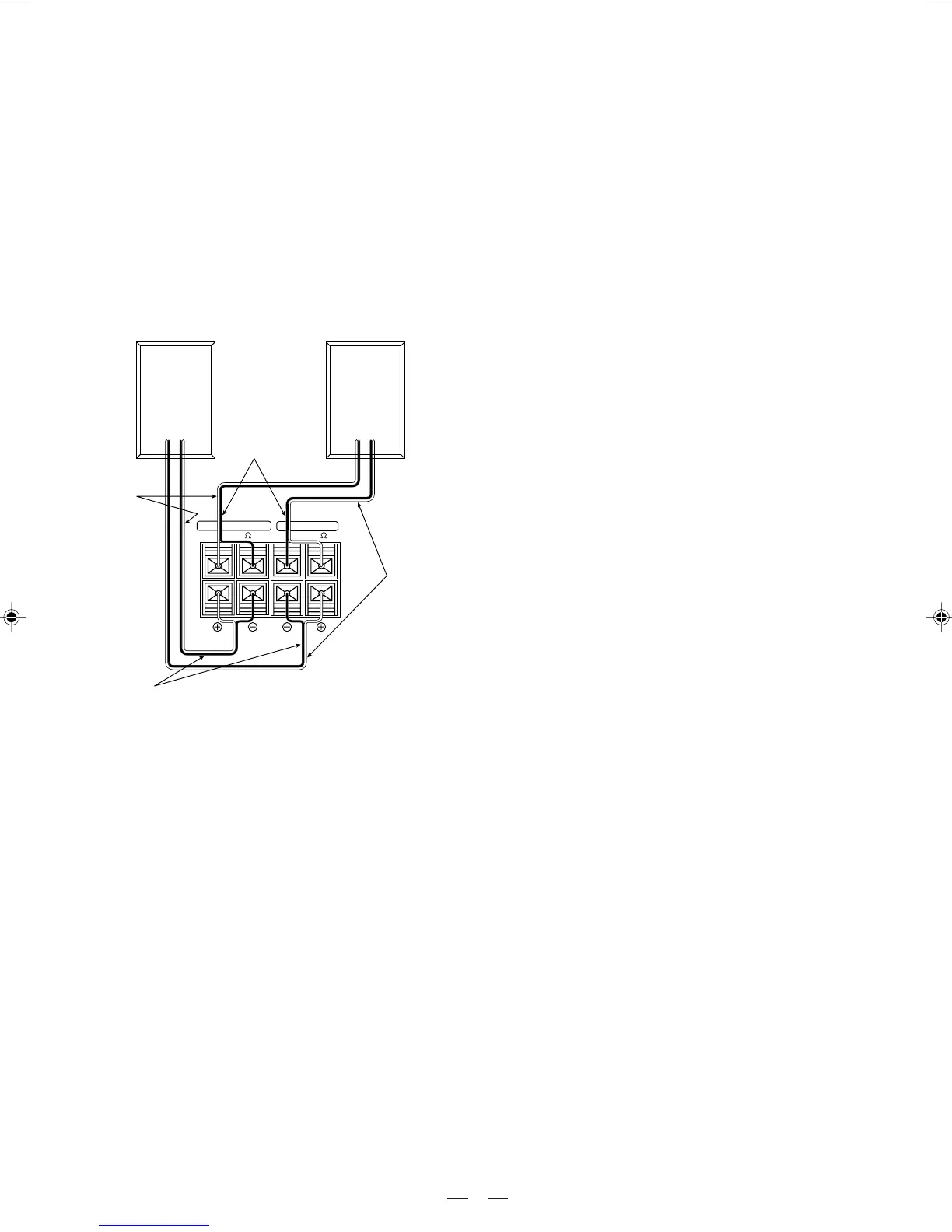

Connection
Anschluß
Raccordement
Aansluiting
Conexión
Left speaker
Linker Lautsprecher
Enceinte de gauche
Linker spreker
Altavoz izquierdo
Altoparlante sinistro
Vänster högtalare
Vasen kaiutin
Venstre højttaler
Right speaker
Rechter Lautsprecher
Enceinte de droite
Rechter spreker
Altavoz derecho
Altoparlante destro
Höger högtalare
Oikea kaiutin
Højre højttaler
MAIN SPEAKER
SUBWOOFER
4-8
[ ]
6
[ ]
RR
LL
-16
R L
Amplifier output terminals
Ausgang des Verstärkers
Bornes de sortie de l’amplificaterur
Uitgangsaansluitengen van de versterker
Terminales de salida de amplificador
Terminali de uscita dell’amplifcator
Utgångar på förstärkaren
Vahvistimen ulostuloliittimet
Forstærkerudgangsbøsninger
Collegamento
Ansluiting
Liitäntä
Tilslutning
BLUE
BLAU
BLEU
BLAUW
AZUL
BLU
BLA
SININEN
BLA
BLACK
SCHWARZ
NOIR
ZWART
NEGRO
NERO
SVART
MUSTA
SORT
RED
ROT
ROUGE
ROOD
ROJO
ROSSO
RÖD
PUNAINEN
RØD
BLACK
SCHWARZ
NOIR
ZWART
NEGRO
NERO
SVART
MUSTA
SORT
