JVC MX-G70 User Manual

MX-G70
1-25

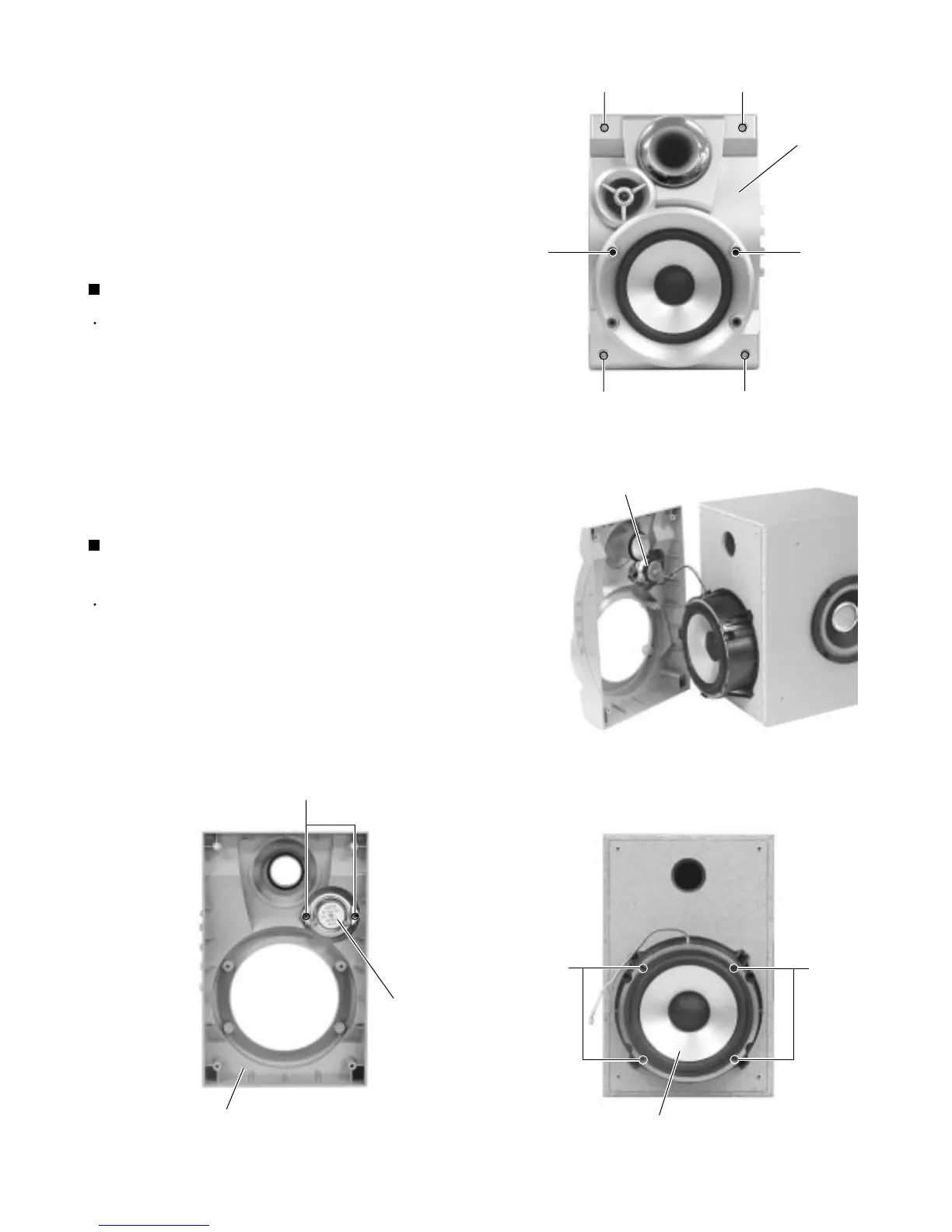

Remove the two screws D and E respectively.
Remove the front cover toward the front and
disconnect the yellow and black wires from the two
tweeter speaker terminals.
3.
4.
Prior to performing the following procedure, remove
the side cover and the front cover.
Remove the four screws F on the front of the body.
Pull out the woofer speaker toward the front and
disconnect the wire (yellow and black,blue and
black) from the two speaker terminals.
1.
2.
Removing the woofer speaker (See Fig.7)
Prior to performing the following procedure, remove
the side cover and the front cover.
Remove the two screws G attaching the tweeter
speaker on the back of the front cover.
1.
Removing the tweeter speaker
(See Fig.8)
Fig.5
Fig.6
Fig.7Fig.8
C
Front cover
C
Woofer speaker
F
DD
EE
Tweeter speaker
F
Tweeter speaker
Front cover
G
