Prior to performing the following procedure, remove
the front cover.
Remove the four screws B on the front of the body.
Pull out the woofer speaker toward the front and
disconnect the wire (yellow and black,red and black)
from the two speaker terminals.
1.
2.
Removing the woofer speaker (See Fig.3)
Prior to performing the following procedure, remove
the front cover.
Disconnect the red and black wires from the two
tweeter speaker terminals.
Remove the two screws C attaching the tweeter
speaker on the back of the front cover.
1.
2.
Removing the tweeter speaker
(See Fig.4)
B
B
C

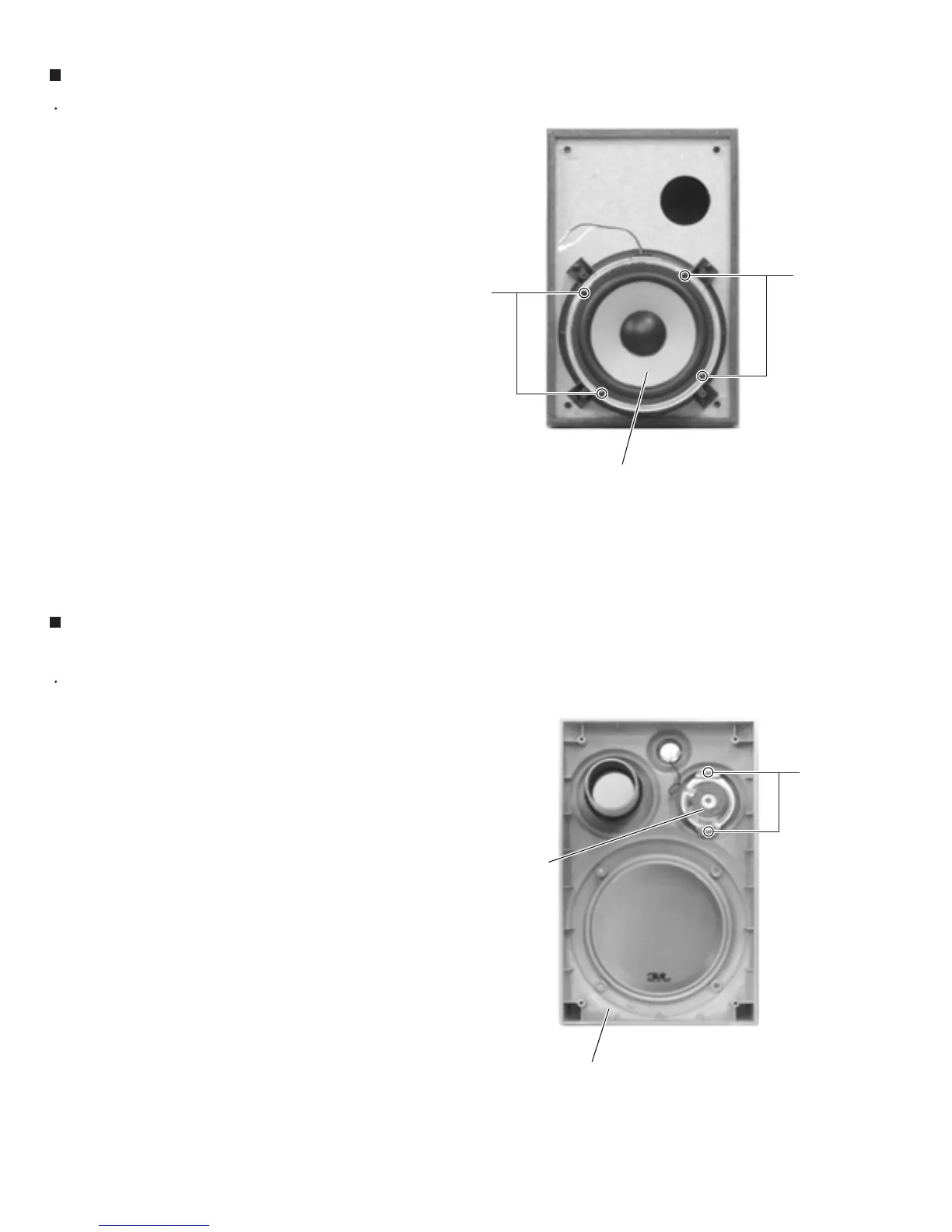

Woofer speaker
Fig.3
(SP-MXG750V)
(SP-MXG850V)
(SP-MXG950V)
Fig.4
(SP-MXG750V)
(SP-MXG850V)
(SP-MXG950V)
Tweeter speaker
Front cover
