JVC MX-G880V - CD mechanism assembly and parts list

MX-G950V/MX-G880V
MX-G850V/MX-G750V
4-10
15
4
2
3
5
1
8
10
9
13
12
11
5
6
7
14
EXL-M7TMB
19.4
+
-
0.1mm
2
10
8

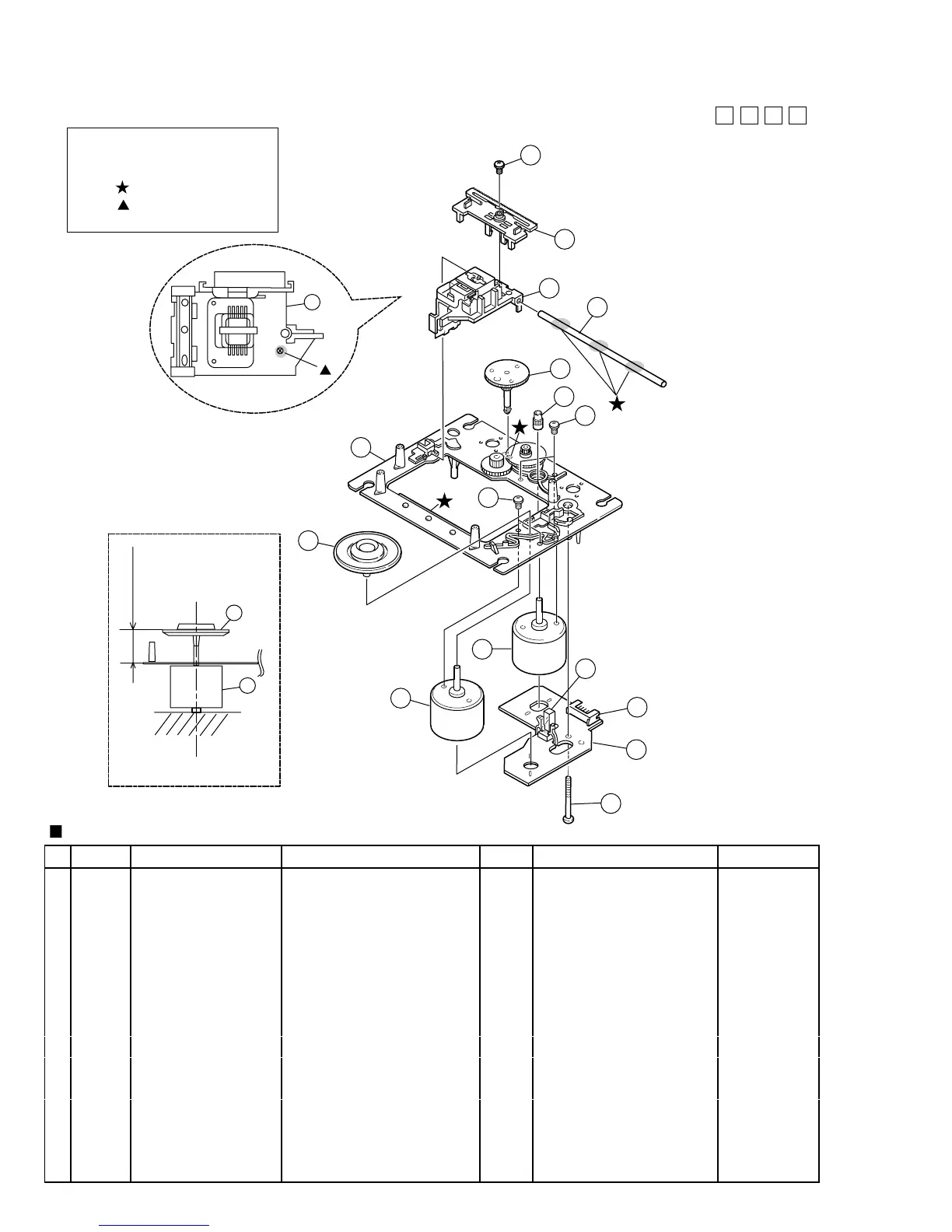

CD mechanism assembly and parts list
Block No.
M
M
M
B
= EBS0006-013B
= 1401B
Grease & Bond
Turn table hight
Item
Parts number Parts name Area
A
Parts list (CD mechanism)
Q'ty
Description
Block No. MBMM
1 E102731-221SM
CD MECHA BASE A
1
2 OPTIMA-7B
C.D PICK
1
3 E406777-002SM
C.D SHAFT
1
4 LV31002-001A
CD RACK
1
5 E307745-441SM
C.D GEAR 3
1
6 QYSDSP2003N
SCREW
4
7 E406750-442SM
PINION
1
8 EPB309173PKA
T.T PACKING
1
9 E406784-001
FEED MOTOR
1
10 QAR0130-001
SP MOTOR
1
11 EMW10190-441
CIR BOARD
1
12 QGA2001F1-06
CONNECTOR
1
13 QSW0506-001
LEAF SWITCH
1
14 E75832-221SS
SPECIAL SCREW
1
15 QYSDSF2006Z
SCREW
1
