Remove the four screws D on the front of the body
respectively.
Remove the front cover toward the front.
1.
2.
Removing the front cover (See Fig.5)
Do not break or damage the front panel and
body that are glued at the joints b.
(See Fig.5)
CAUTION:
Prior to performing the following procedure, remove
the front cover.
Remove the four screws E on the front of the body.
Pull out the woofer speaker toward the front and
disconnect the red and black wires from the two
speaker terminals.
1.
2.
Removing the woofer speaker (See Fig.6)
<Woofer speaker section>

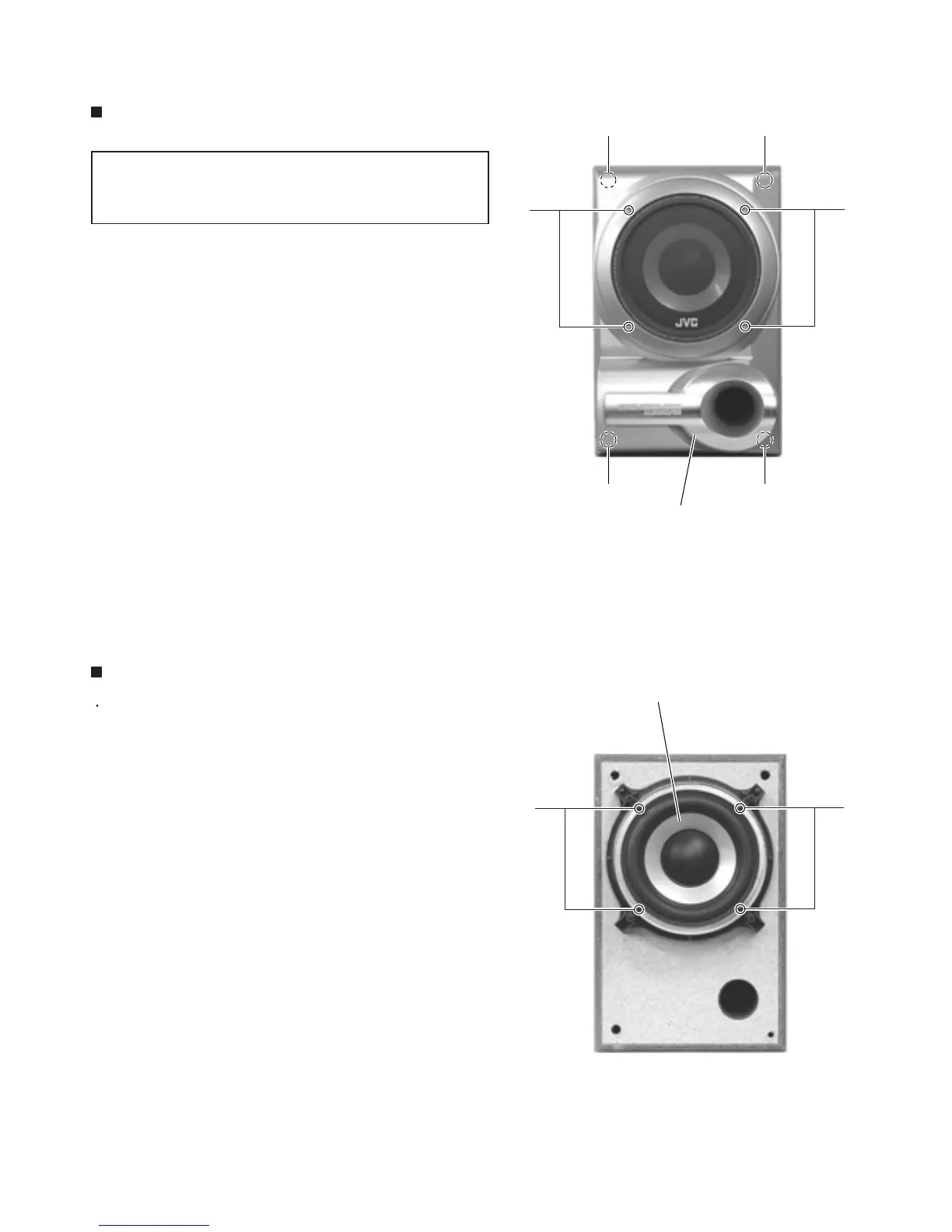

Fig.5
(SP-MXG850V)
(SP-MXG950V)
Fig.6
(SP-MXG850V)
(SP-MXG950V)
EE
DD
Joint b
Woofer speaker
Front cover
Joint b
Joint b Joint b
