JVC MX-G880V - Speaker assembly and parts list

MX-G950V/MX-G880V
MX-G850V/MX-G750V
5-6

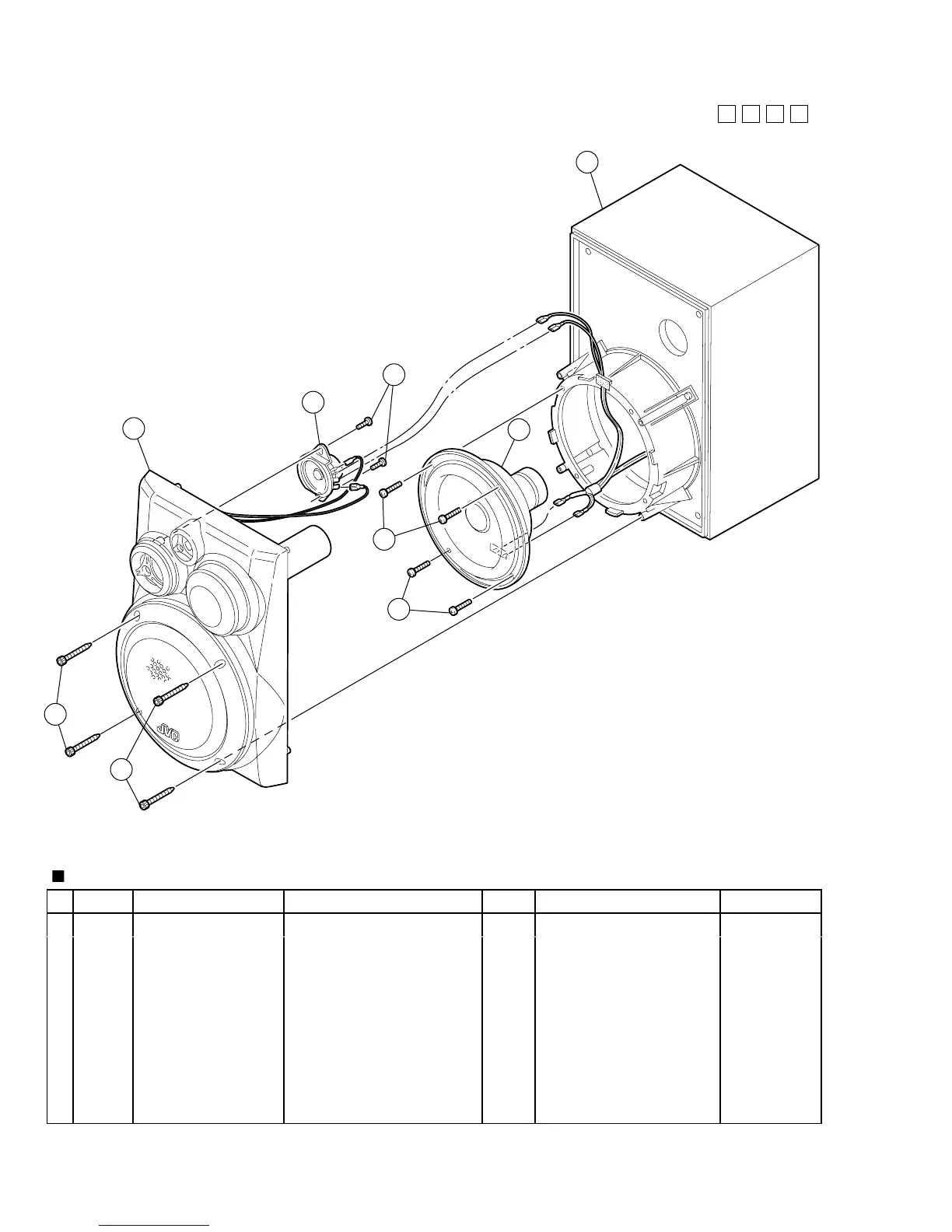

Speaker assembly and parts list
Block No.
M
M
M
7
SP-MXG750V
Item
Parts number Parts name Area
A
Parts list (Speaker assembly) SP-MXG750V
Q'ty
Description
Block No. M7MM
A MXG750K-SPBOX-L
SP BOX ASSY(L) 1
MXG750K-SPBOX-R
SP BOX ASSY(R)
1
1 J200-G750RSG-40
FRONT PANEL(R)
1
J200-G750LSG-40
FRONT PANEL(L)
1
2 411-N74020AB1
SCREW 4X20
8
3 300-J0G7501600
WOOFER
2
4 411-B840120P1
SCREW 4X12
8
5 302-J0G7500500
TWEETER
2
6 411-B140080P1
SCREW 4X8
4
7 ---------------
CABINET ASSY
2
1
4
4
3
7
2
2
5
6
