(No.MB011)1-11

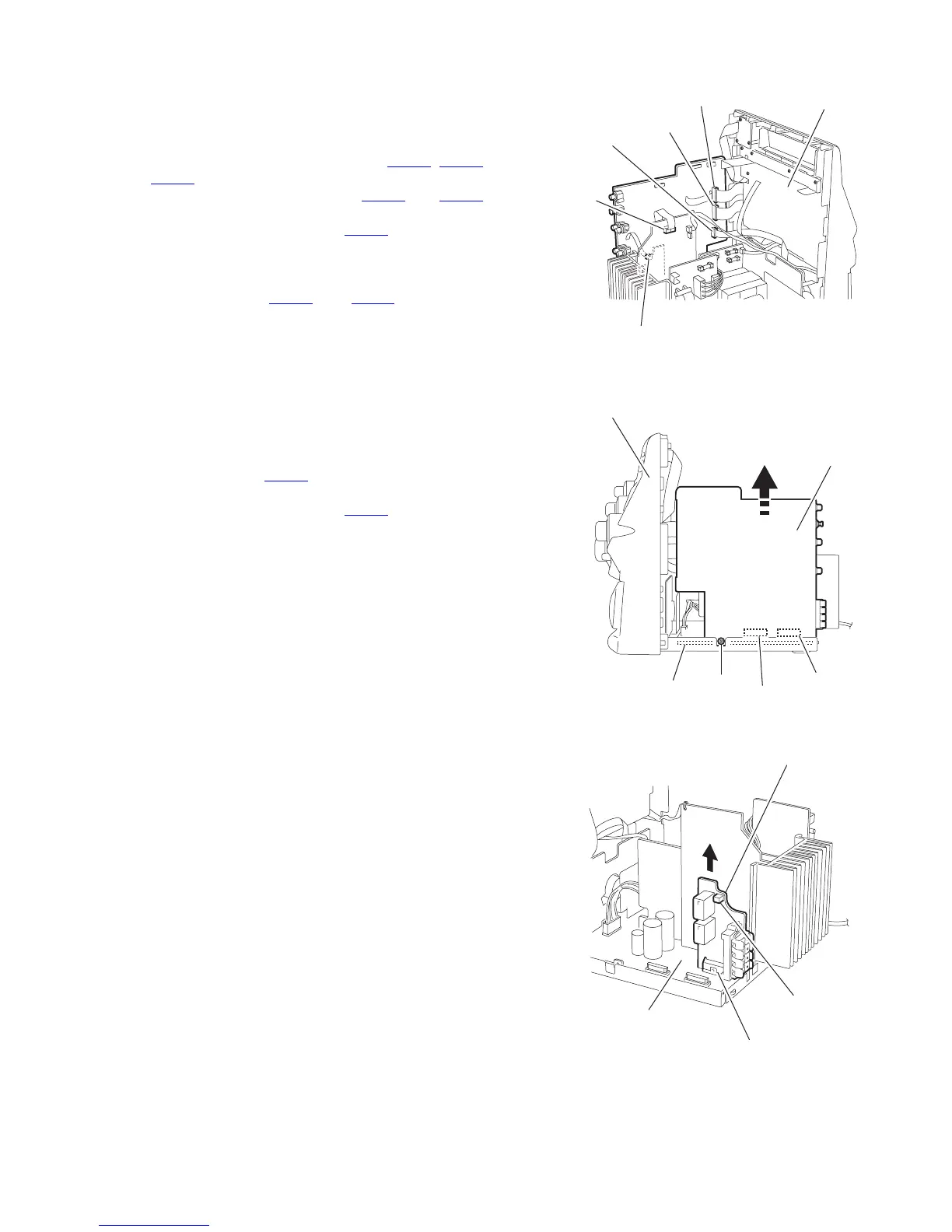

3.1.7 Removing the main board
(See Fig.17 ~ 19)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly, the rear panel
and the antenna board.
(1) Disconnect the card wires from connector CN870
, CN871
and CN315 on the main board.
(2) Disconnect the wires from connector CN704 and CN706
on the amplifier board.
(3) Disconnect the wire from connector CN710
on the speaker
board.
(4) Remove the screw I attaching the main board on the right
side ofthe body.
(5) Disconnect connector CN211
and CN212 on the main
board from the regulator board.
3.1.8 Removing the speaker board
(See Fig.19)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly and the rear pan-
el.
REFERENCE:
It is not necessary to remove the main board.
(1) Disconnect connector CN217
on the speaker board from
the regulator board.
(2) Disconnect the wire from connector CN710
on the speaker
board.
Fig.17
Fig.18
Fig.19
Front panel assembly
A
mplifier board
CN704
CN706
Speaker board
CN710
Main board
CN870
CN871
CN315
Main board
Front panel assembly
I
CN211
CN212
Regulator board
Regulator board
CN217
Speaker board
CN710
