1-10 (No.MB011)

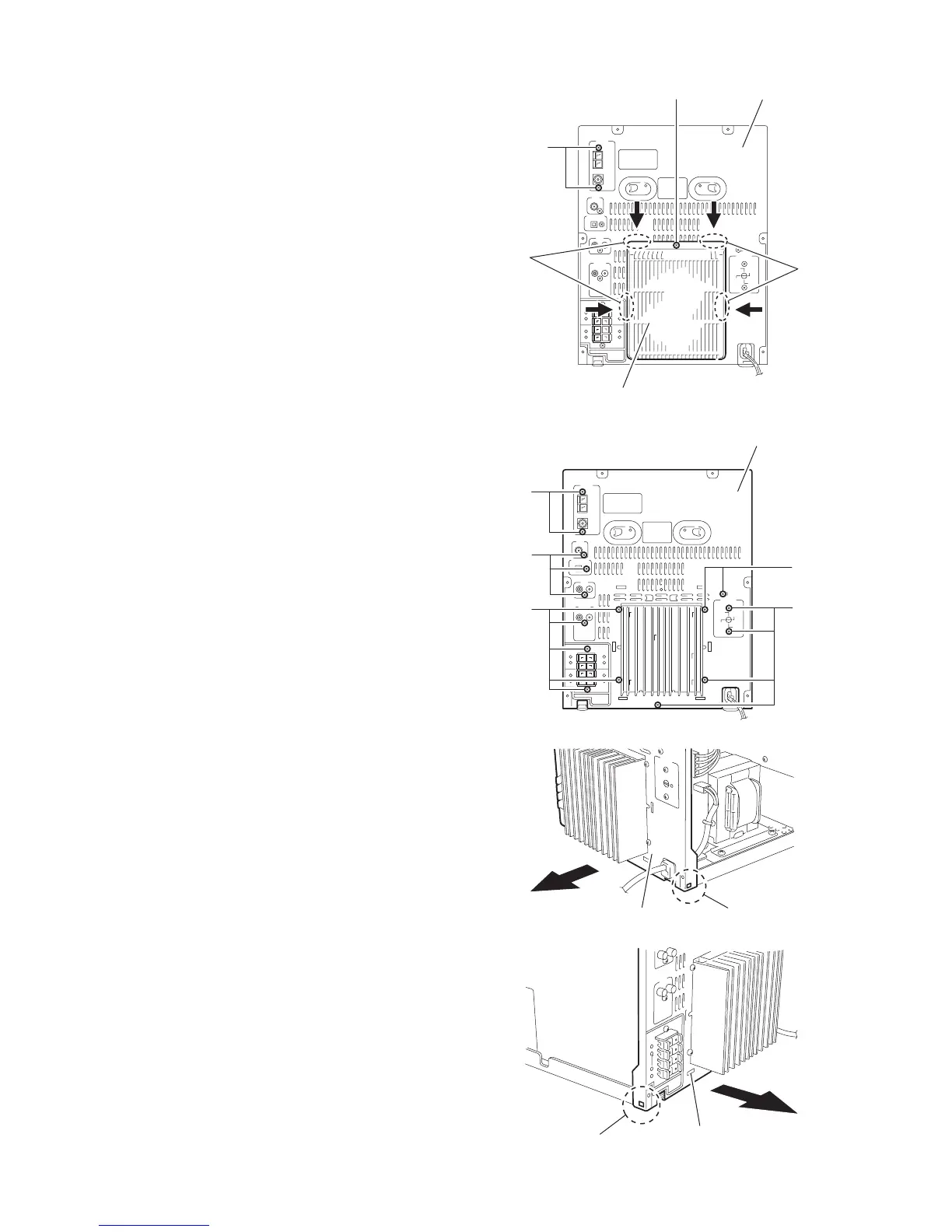

3.1.6 Removing the rear cover / rear panel

(See Fig.13 ~ 16)

• Prior to performing the following procedure, remove the metal

cover and the CD changer mechanism assembly.

(1) Remove the screw H attaching the rear cover on the back

of the body.

(2) Push each tab of the four joints b in the direction of the ar-

row and release.

(3) Remove the sixteen screws G attaching the rear panel.

(4) Disengage the joints c on each lower side of the rear panel

using a screwdriver and remove the rear panel backward.

Fig.13

Fig.14

Fig.15

Fig.16

Rear panel

Joint b

Rear cover

Rear panel

Joint c

Rear panel

Joint c

Rear panel
