(No.MB011)1-9

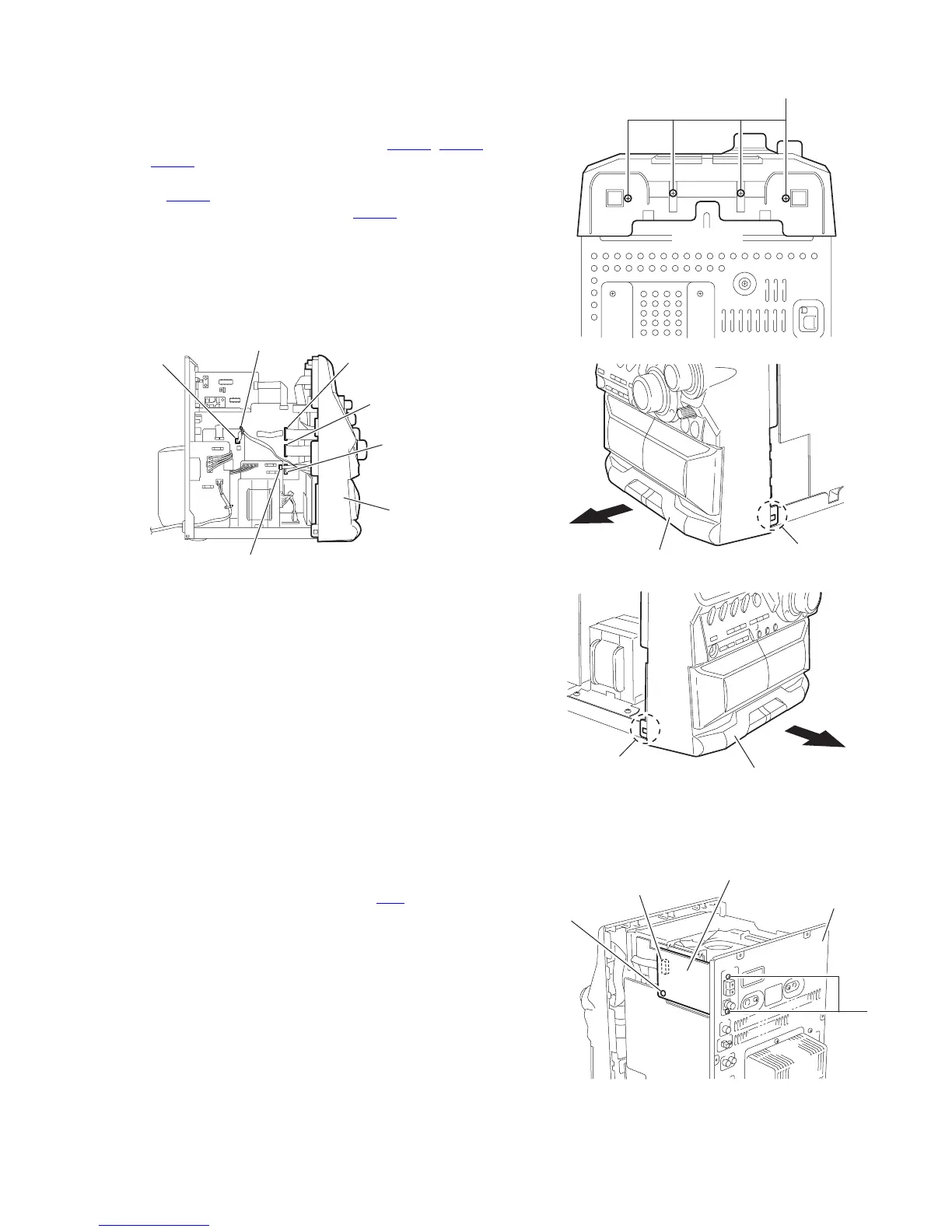

3.1.4 Removing the front panel assembly
(See Fig.8 ~ 11)
• Prior to performing the following procedure, remove the metal
cover and CD changer mechanism assembly.
(1) Disconnect the card wires from connector CN870
, CN871
and CN315 on the main board respectively.
(2) Remove the wire clamp and disconnect the wire from con-
nector CN703
on the amplifier board.
(3) Disconnect the wire from connector CN220
on the trans-
former board.
(4) Remove the four screws F on the bottom of the body.
(5) Release the two joints a on the lower right and left sides of
the body using a screwdriver, and remove the front panel
assembly toward the front.
Fig.8
Fig.9
Fig.10
Fig.11
3.1.5 Removing the tuner board
(See Fig.12)
• Prior to performing the following procedure, remove the metal
cover.
(1) Disconnect the card wire from connector CN1
on the tuner
board on the right side of the body.
(2) Remove the plastic rivet fixing the tuner board.
(3) Remove the two screws G on the back of the body.
Fig.12
Wire clamp
A
mplifier board
CN703
Main board
CN870
CN871
CN315
Transformer board
CN220
Front panel
assembly
F
(Bottom)
(Bottom)
(Bottom)
Joint a
Front panel assembly
Front panel assembly
Joint a
CN1
Plastic rivet
Tuner board
Rear panel
G
