(No.MB011)1-13

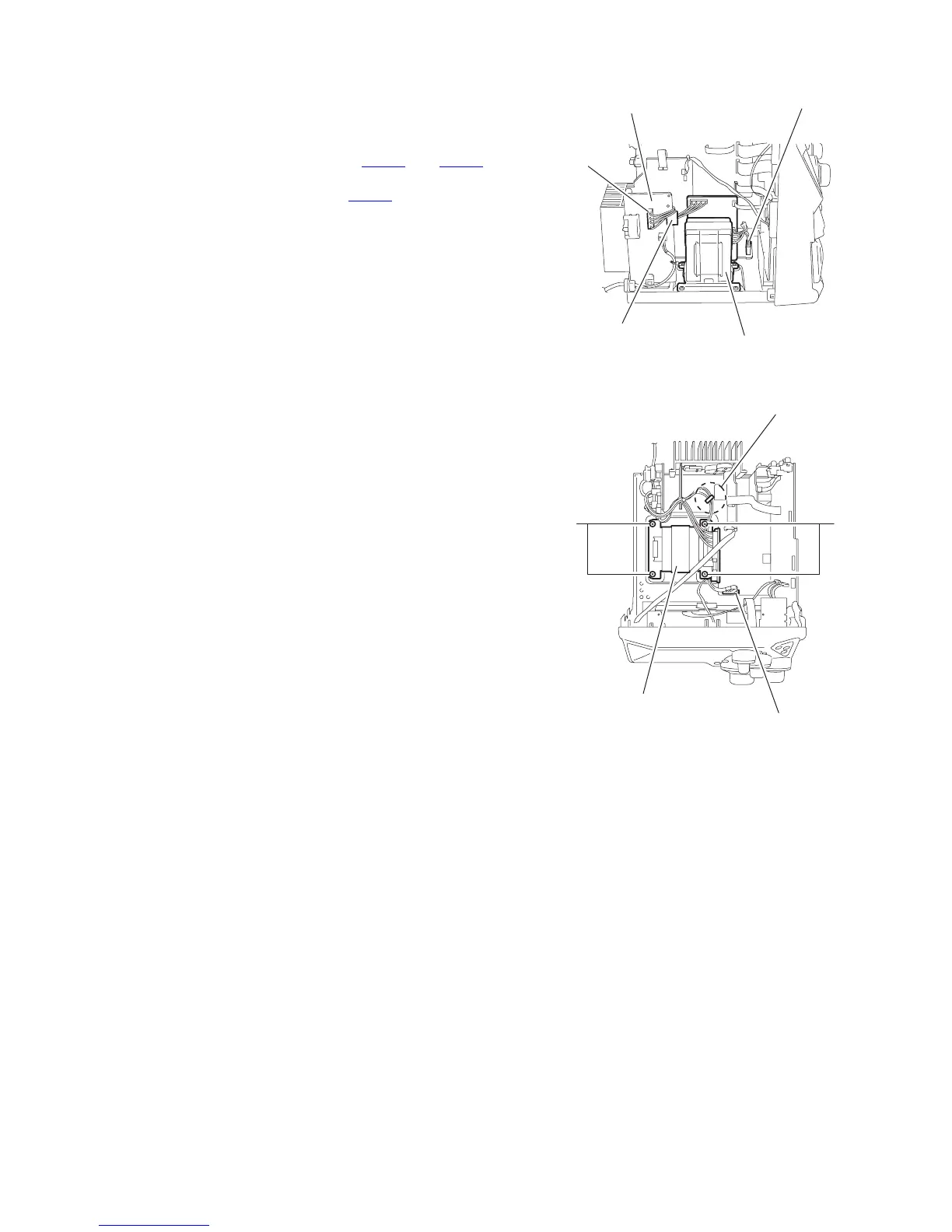

3.1.11 Removing the power transformer assembly
(See Fig.23, 24)
Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly and the rear pan-
el.
(1) Disconnect the wires from connector CN218
and CN219
on the power board.
(2) Disconnect the wire from connector CN204 on the regula-
tor board.
(3) Release the wire from the stopper on the regulator board.
(4) Remove the four screws L attaching the transformer as-
sembly.
Fig.23
Fig.24
CN219
Regulator board
CN204
Power transformer assembly
Power board
CN218
Power transformer
assembly
Regulator board
CN204
LL
Stopper
