1-14 (No.MB011)
3.1.12 Removing the regulator board
(See Fig.25)
• Prior to performing the following procedure, remove metal cov-
er, CD changer mechanism assembly, rear panel, antenna
board, main board, amplifier board, voltage board, power
board and speaker board.
(1) Disconnect the wire from connector CN204
on the regula-
tor board.
(2) Release the wire from the stopper on the regulator board.
(3) Remove the two screws M attaching the reglator board.

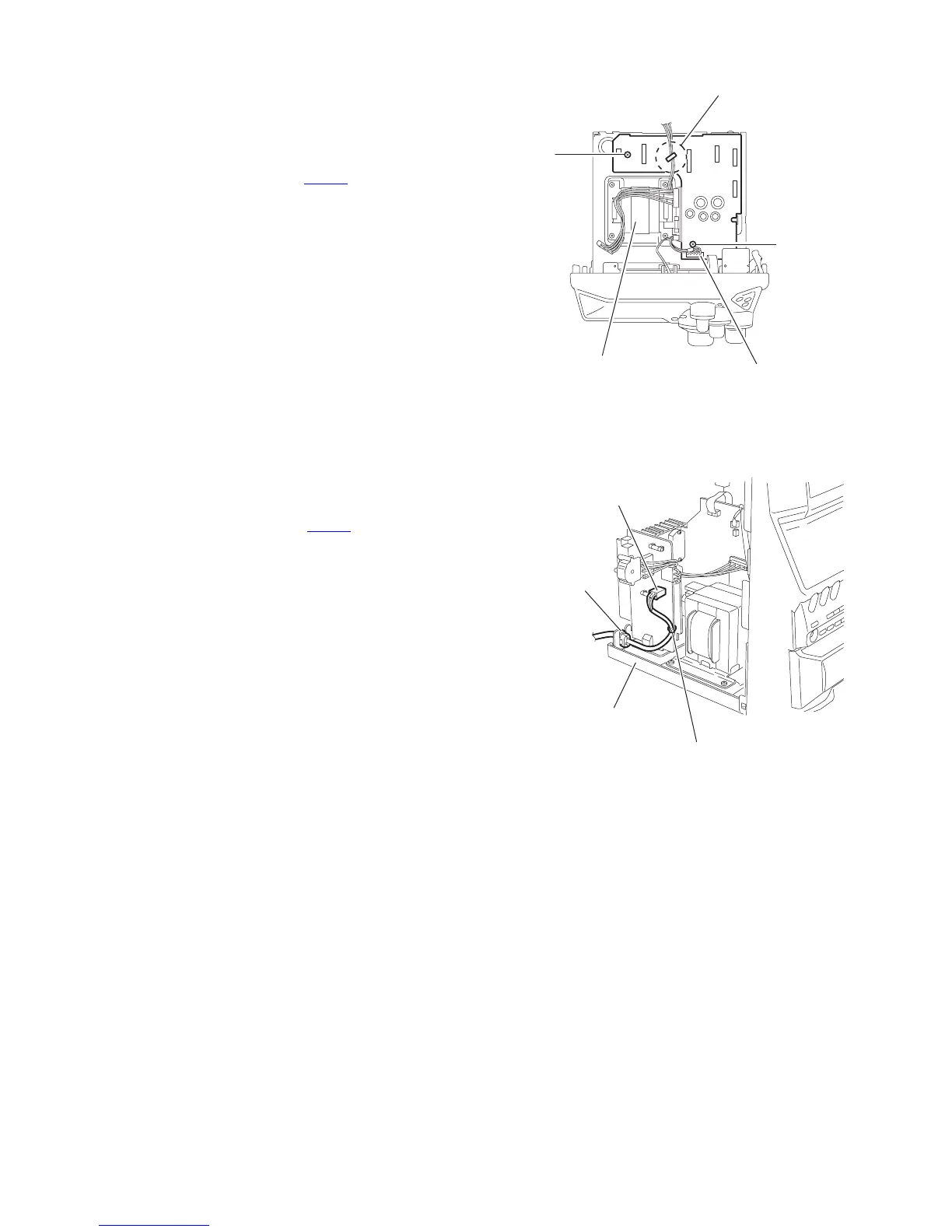

Fig.25
3.1.13 Removing the power cord
(See Fig.26)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly and the rear pan-
el.
(1) Disconnect the wire from connector CN250
on the power
board.
(2) Remove the wire clamp from the power board.
(3) Move the power cord stopper upward and pull out it from
the base chassis.
Fig.26
M
M
Power transformer assembly
Regulator board
CN204
Stopper
Power board
CN250
Power cord stopper
Wire clamp
Base chassis
To Next Page
