1-34 (No.MB011)
3.6 Woofer speaker section

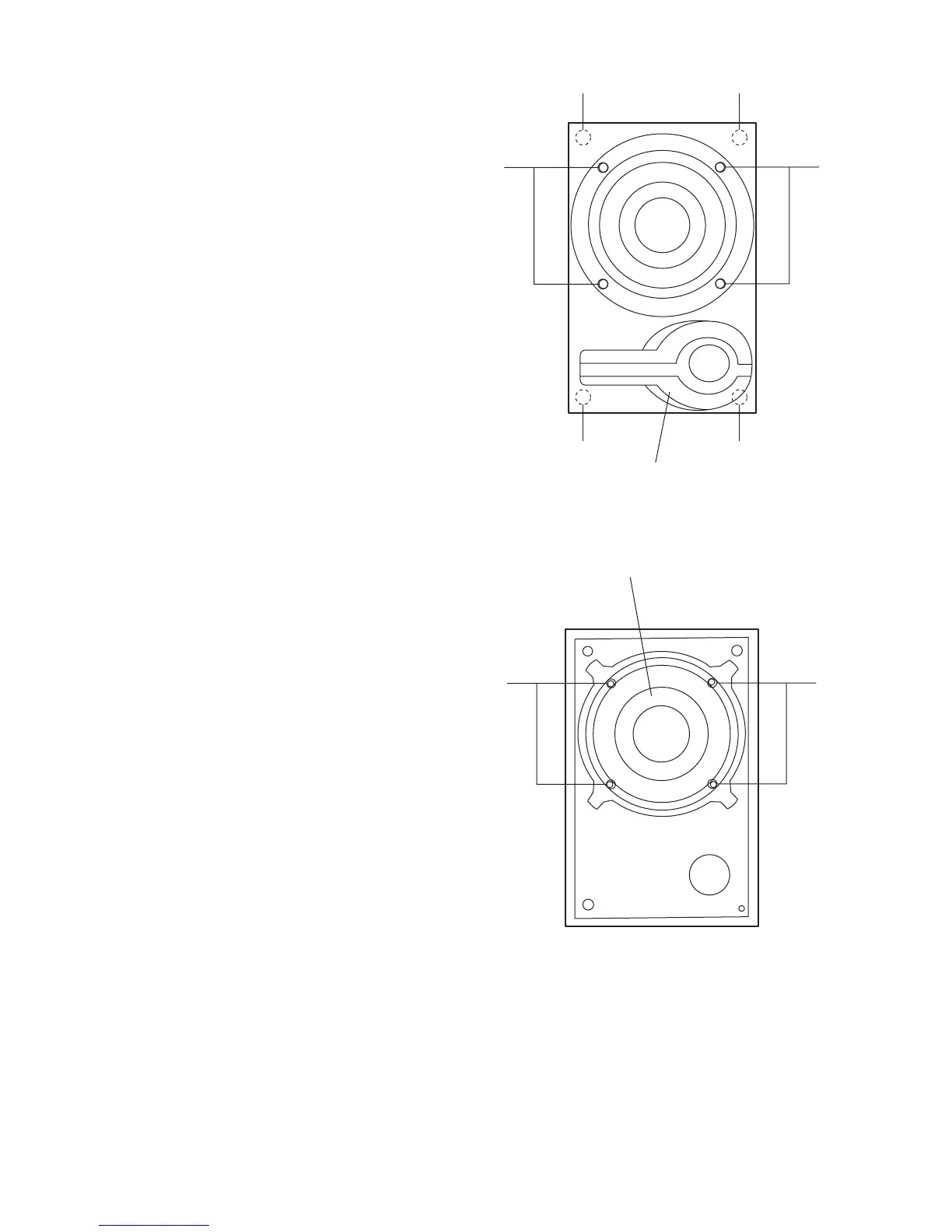

3.6.1 Removing the front cover
(See Fig.5)
CAUTION:
Do not break or damage the front panel and body that are
glued at the joints b. (See Fig.5)
(1) Remove the four screws D on the front of the body respec-
tively.
(2) Remove the front cover toward the front.
Fig.5
3.6.2 Removing the woofer speaker
(See Fig.6)
• Prior to performing the following procedure, remove the front
cover.
(1) Remove the four screws E on the front of the body.
(2) Pull out the woofer speaker toward the front and discon-
nect the red and black wires from the two speaker termi-
nals.
Fig.6
DD
Joint b
Front cover
Joint b
Joint b Joint b
EE
Woofer speaker
To Next Page
