3.7 Removing the Rear speaker
3.7.1 Removing the Rear cover
(See Fig.7 ~ 9 )
(1) Remove the four screws F on the back of the body.
(2) Disconnect the wires from the two terminals on the rear
speaker.
(3) Remove the four screws G on the back of the front cover.

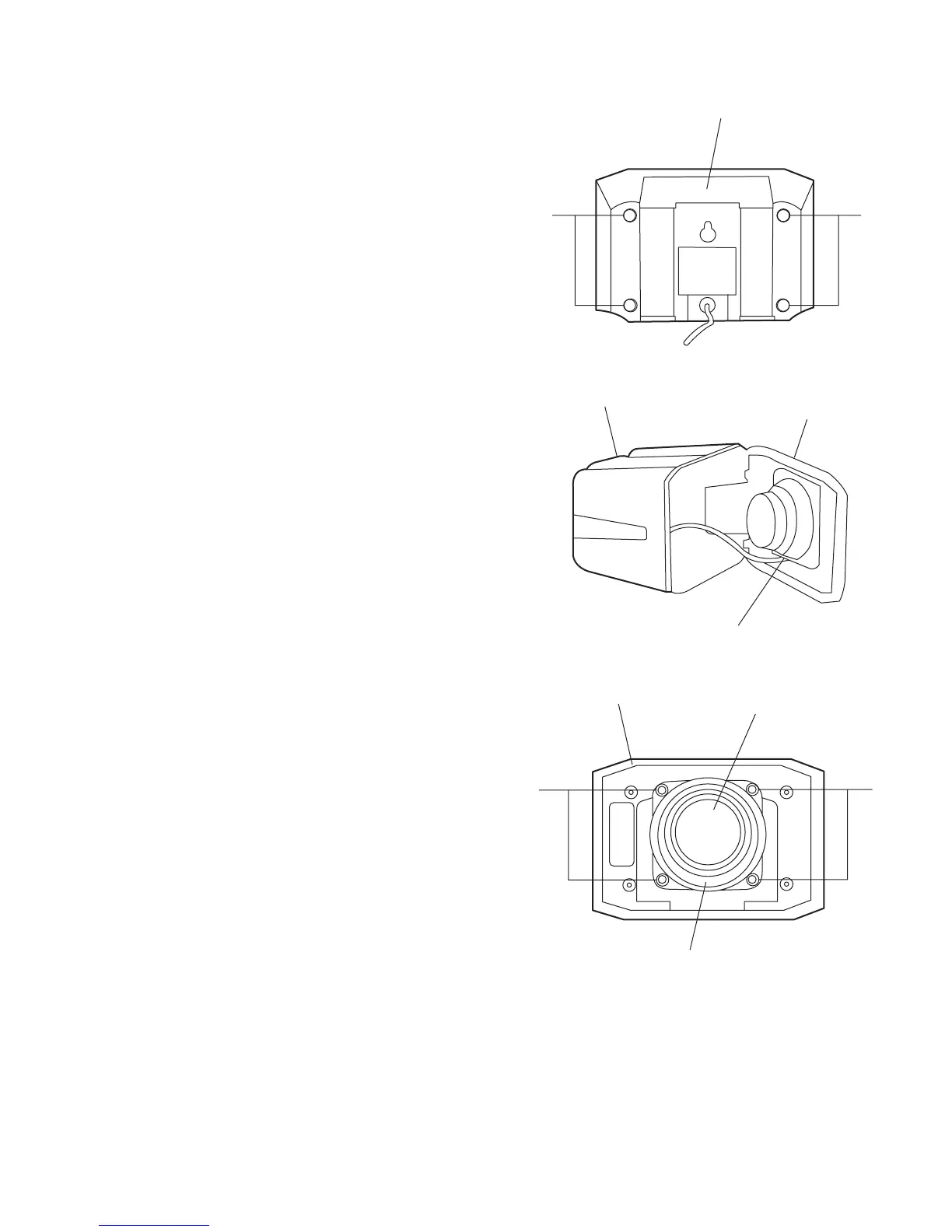

Fig.7
Fig.8
Fig.9
F
F
Rear cover
Rear speaker terminals
Rear cover
Front cover
G
G
Rear speaker terminals
Rear speaker
Front cover
