MX-GT80/MX-GT90
1-12

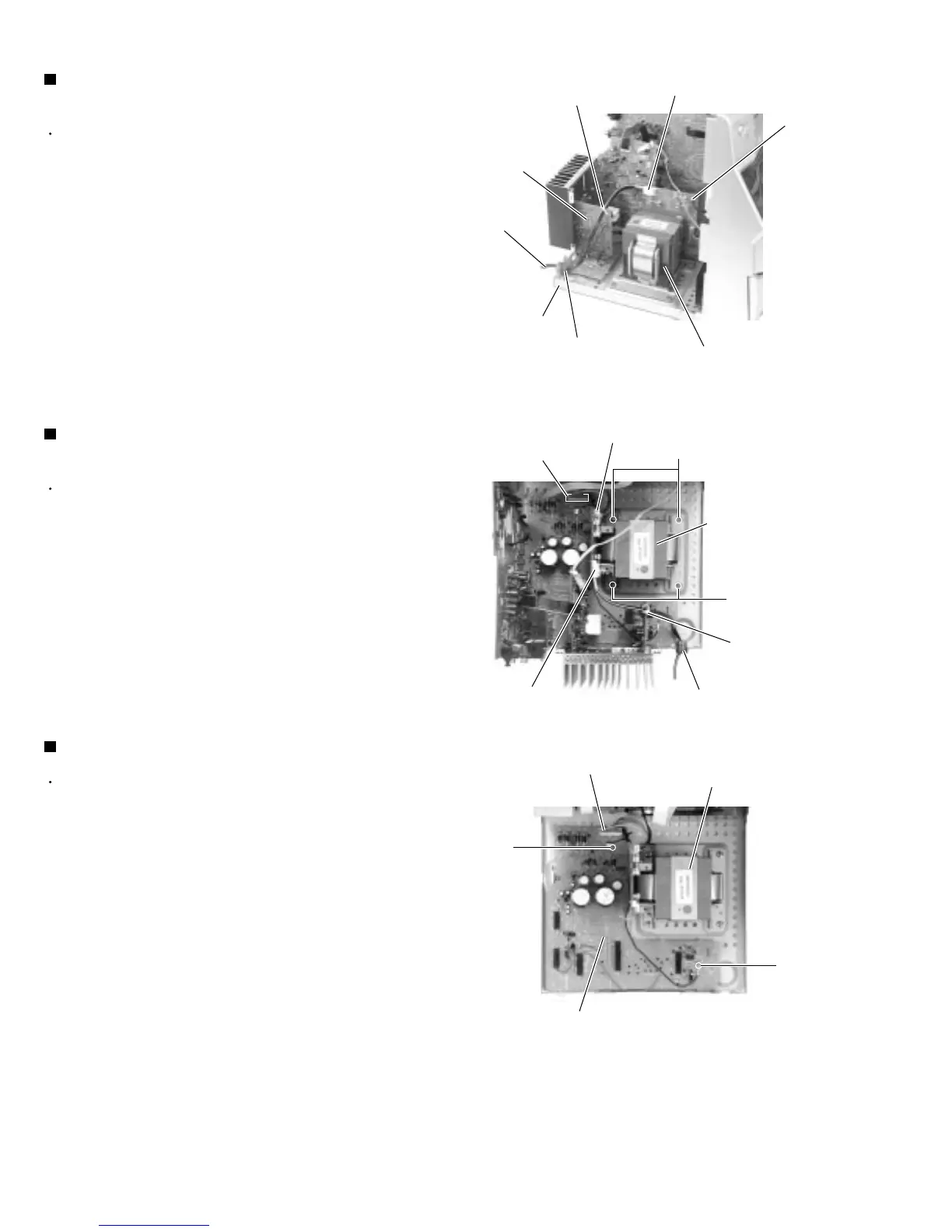

Prior to performing the following procedure, remove
the metal cover, the CD changer mechanism
assembly and the rear panel.
Disconnect the wires from connector CN220 and
CN250 on the transformer board.
Disconnect the wire from connector CN204 on the
regulator board.
Remove the four screws k attaching the transformer
assembly.
1.
2.
3.
Removing the power transformer
assembly (See Fig.21 and 22)
Prior to performing the following procedure, remove
metal cover, CD changer mechanism assembly, rear
panel, tuner board, main board, amplifier board,
voltage board and speaker board.
Disconnect the wire from connector CN204 on the
regulator board.
Remove the two screws L attaching the regulator
board.
1.
2.
Removing the regulator board
(See Fig.23)
Prior to performing the following procedure, remove
the metal cover, the CD changer mechanism
assembly and the rear panel.
Disconnect the wire from connector CN250 on the
transformer board.
Remove the tie band from the voltage board.
Move the power cord stopper upward and pull out it
from the base chassis.
1.
2.
3.
Removing the power cord (See Fig.21)
Fig.21
Fig.22
Fig.23
Tie band
Voltage board
Transformer board
CN250
CN220
Power transformer assembly
Power cord stopper
Base chassis
Power cord
Power transformer
assembly
Power cord stopper
Tie band
Regulator board
CN204
Transformer board
CN220
K
K
CN250
L
L
Regulator board
CN204
Power transformer assembly
