JVC MX-GT80 User Manual

MX-GT80/MXGT90
1-17

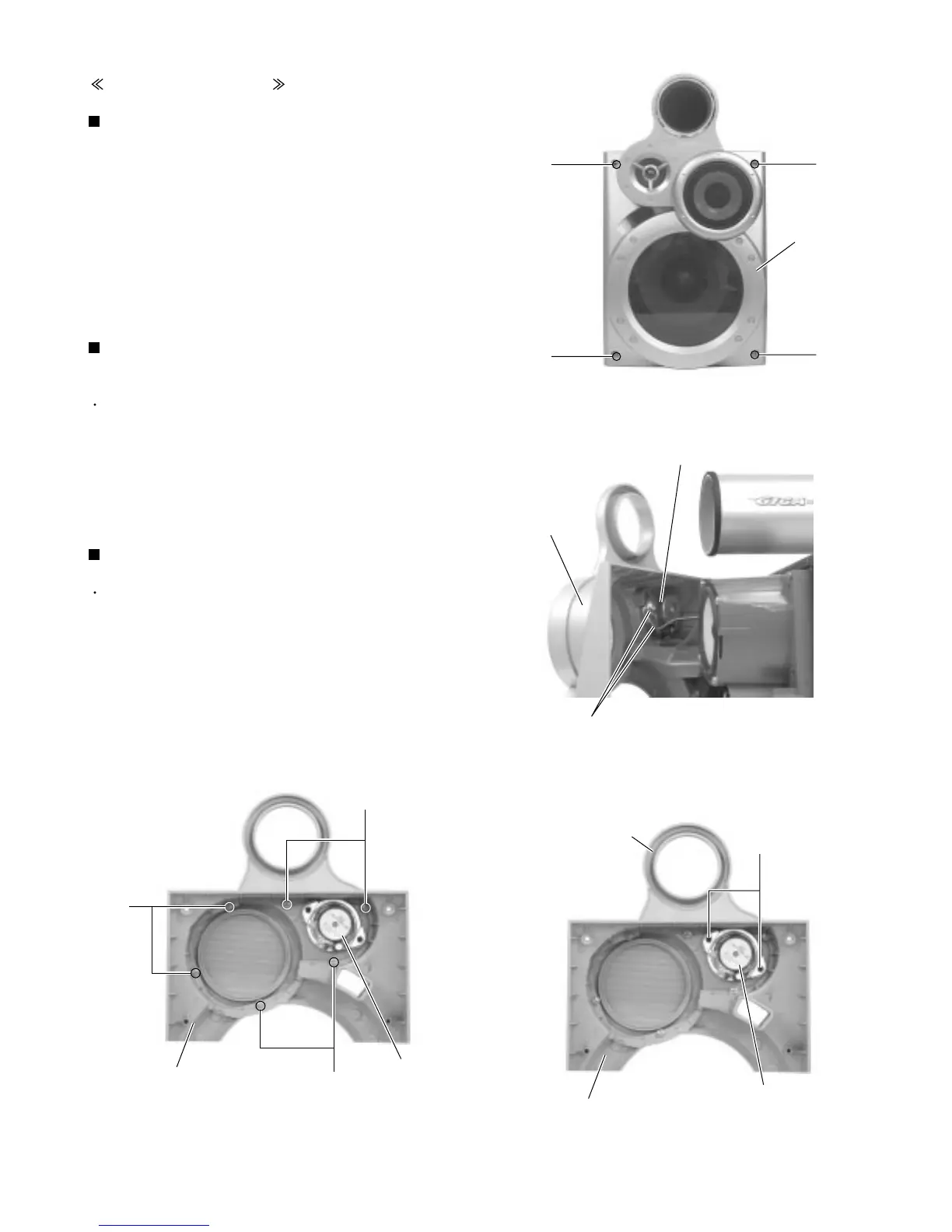

Remove the four screws A attaching the front panel
on the front of the body.
Pull out the front panel toward the front and
disconnect the wire from the two speaker terminals
of the speaker (tweeter) on the back of the front
panel.
1.
2.
Removing the front panel
(See Fig.1 and 2)
Prior to performing the following procedures, remove
the front panel.
Remove the two screws B attaching the speaker
(tweeter) on the back of the front panel.
1.
Removing the speaker (tweeter)
(See Fig.3)
Prior to performing the following procedures, remove
the front panel.
Remove the six screws C attaching the sub panel
on the back of the front panel.
Pull out the sub panel toward the front.
1.
2.
Removing the sub panel (See Fig.4)
Speaker section 2
(SP-MXGT90)
Fig.1
Fig.2
Fig.3
Fig.4
A
A
A
A
B
Sub panel
Speaker (tweeter)
C
C
Speaker (tweeter)
Speaker terminals
C
Speaker (tweeter)
Front panel
Front panel
Front panel
Front panel
