MX-GT80/MXGT90
1-29

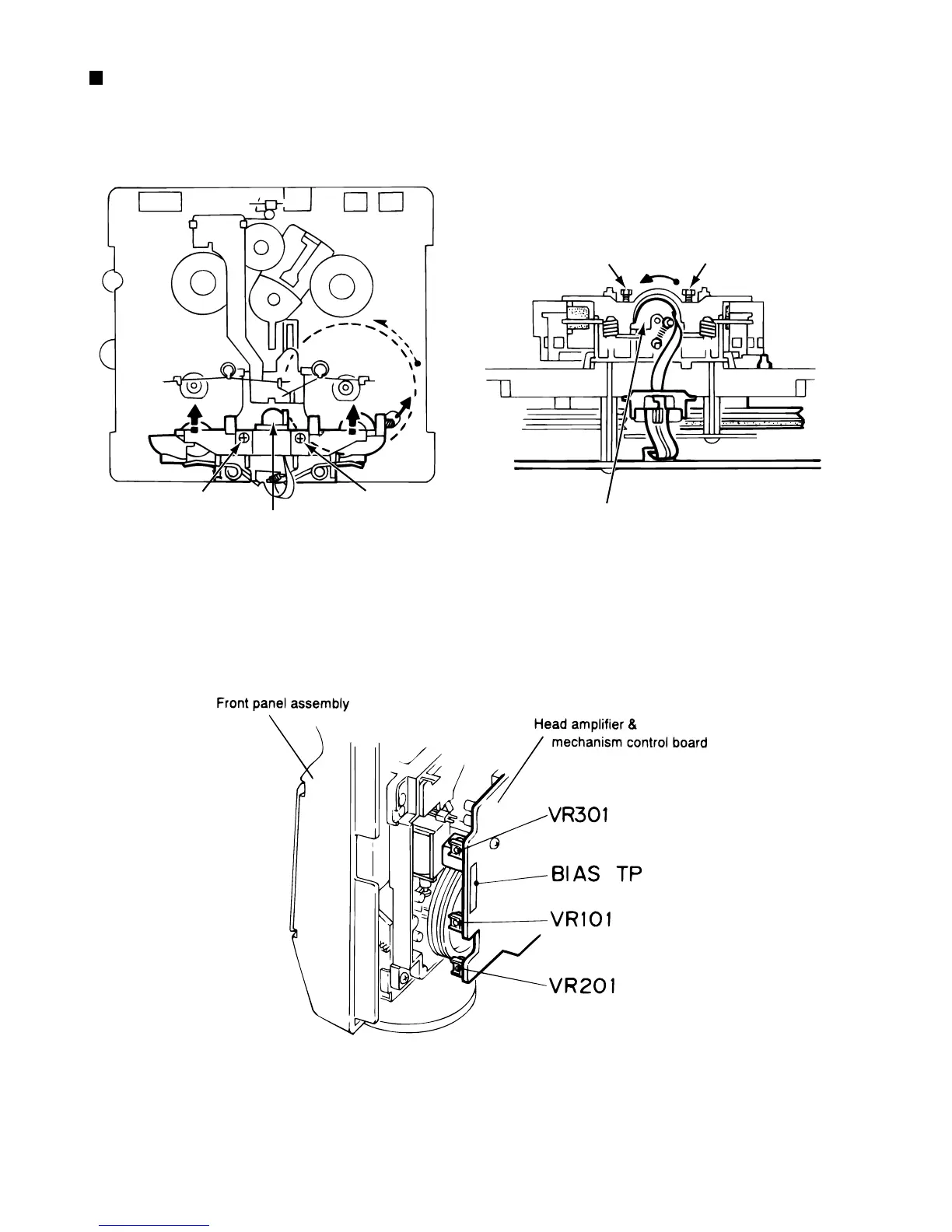

Arrangement of adjusting positions
Cassette mechanism section (Mechanism A section)
Cassette mechanism section (Back side)
Cassette Mechanism Unit Section
Head azimuth
adjusting screw
(Forward side)
Head azimuth
adjusting screw
(Reverse side)
Head azimuth
adjusting screw
(Forward side)
Head azimuth
adjusting screw
(Reverse side)
Playback
head
Playback, recording and eraser
heads or playback head
Tape speed ADJ
Bias ADJ L
Bias ADJ R
